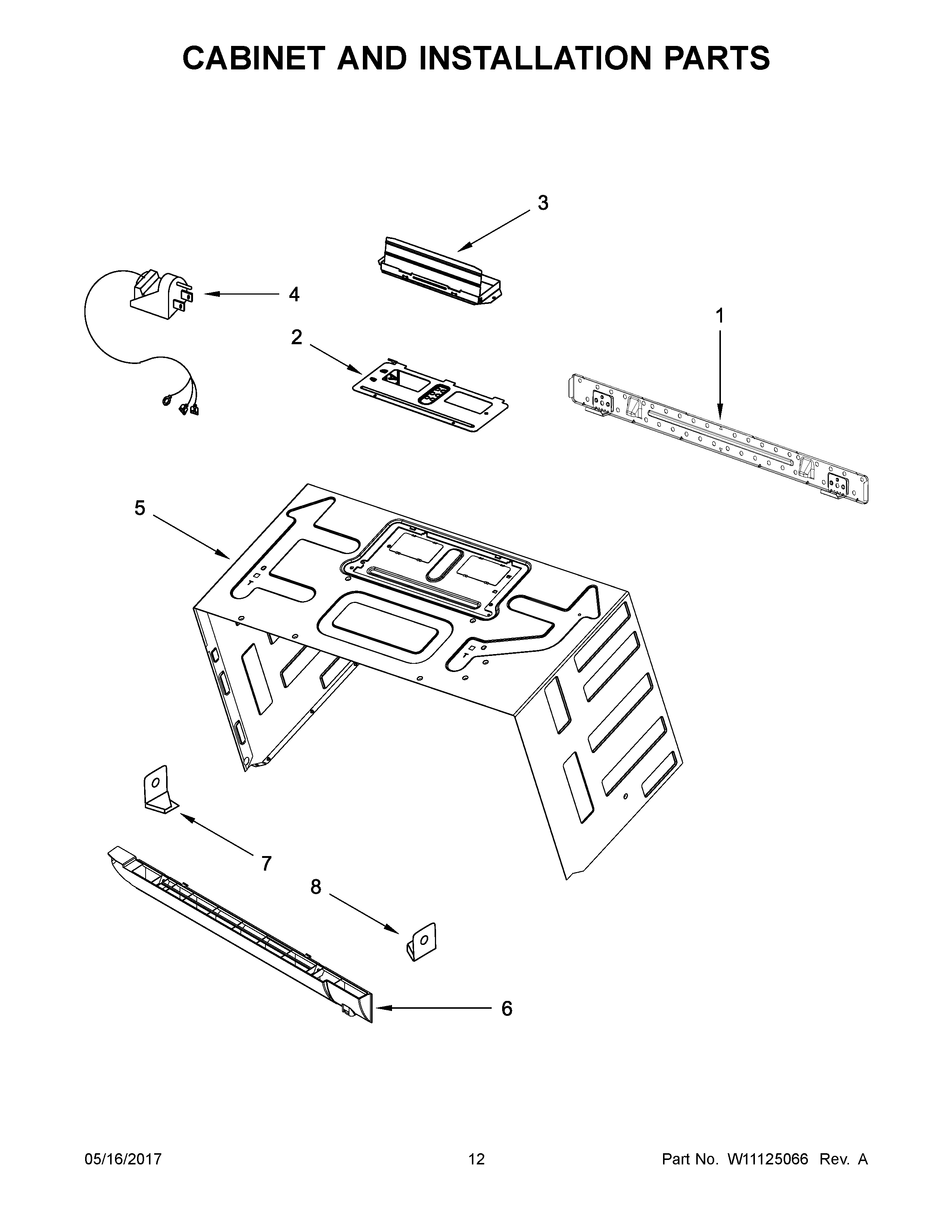

JMV8208CB3 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NI	MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE
NI	MAY W10917690
NI	MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1	PLATE, MOUNTING
2	COVER, FAN MOTOR
3	DAMPER
4	CORD-POWER
5	MAY W10571408
6	GRILLE, VENT (BLACK)
7	HOLDER, VENT LEFT SIDE (BLACK)
8	HOLDER, VENT RIGHT SIDE (BLACK)
