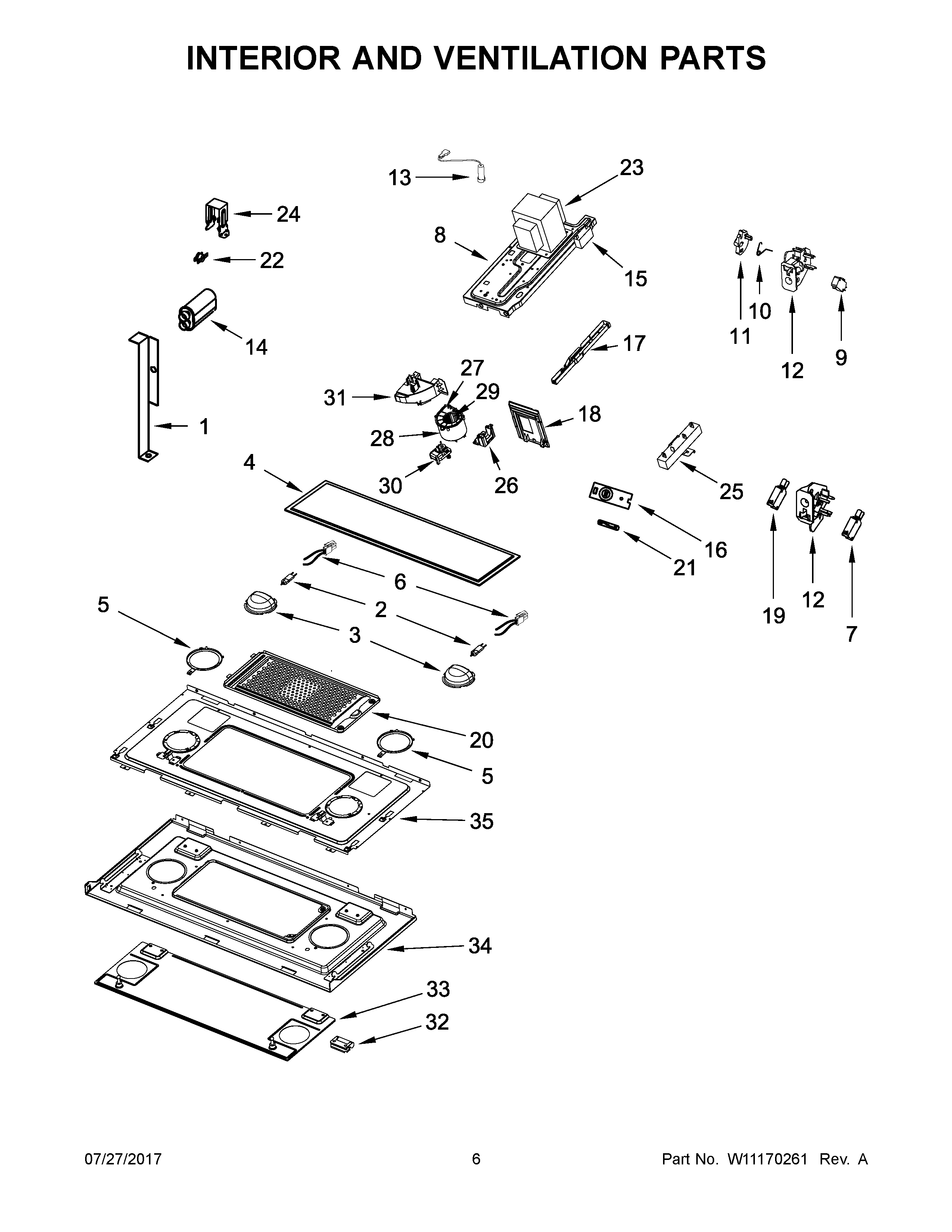

JMV8208CB4 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T09:38:25+00:00JMV8208CB4 04 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET, TOP CAVITY |
| 2 | LAMP, HALOGEN |
| 3 | MAY W10574986 |
| 4 | MAY W10208631 |
| 5 | MAY W10666614 |
| 6 | MAY W10657044 |
| 7 | SWITCH, MICRO V15T16-CC200 |
| 8 | MAY W10631826 |
| 9 | SWITCH, MICRO V15T16-CP200 |
| 10 | MAY W10156812 |
| 11 | MAY W10156811 |
| 12A | MAY W10156813 |
| 12 | MAY 8206419 |
| 13 | MAY W10575765 |
| 14 | MAY W10561770 |
| 15 | MAY W10605897 |
| 16 | MAY W10536989 |
| 17 | MAY W10540718 |
| 18 | DEFLECTOR, AIR |
| 19 | SWITCH, MICRO V15T16-CZ200 |
| 20 | MAY W10614204 |
| 21 | MAY W10138793 |
| 22 | THERMOSTAT, MAGNETRON |
| 23 | TRANSFORMER, HIGH VOLTAGE |
| 24 | BRACKET, CAPACITOR |
| 25 | MAY W10568805 |
| 26 | MAY W10533480 |
| 27 | MAY W10533502 |
| 28 | MAY W10533501 |
| 29 | MAY W10533503 |
| 30 | MAY W10536556 |
| 31 | AIR GUIDE, MAGNETRON |
| 32 | MAY W10574978 |
| 33 | MAY W10614213 |
| 34 | MAY W10614222 |
| 35 | MAY W10614209 |
