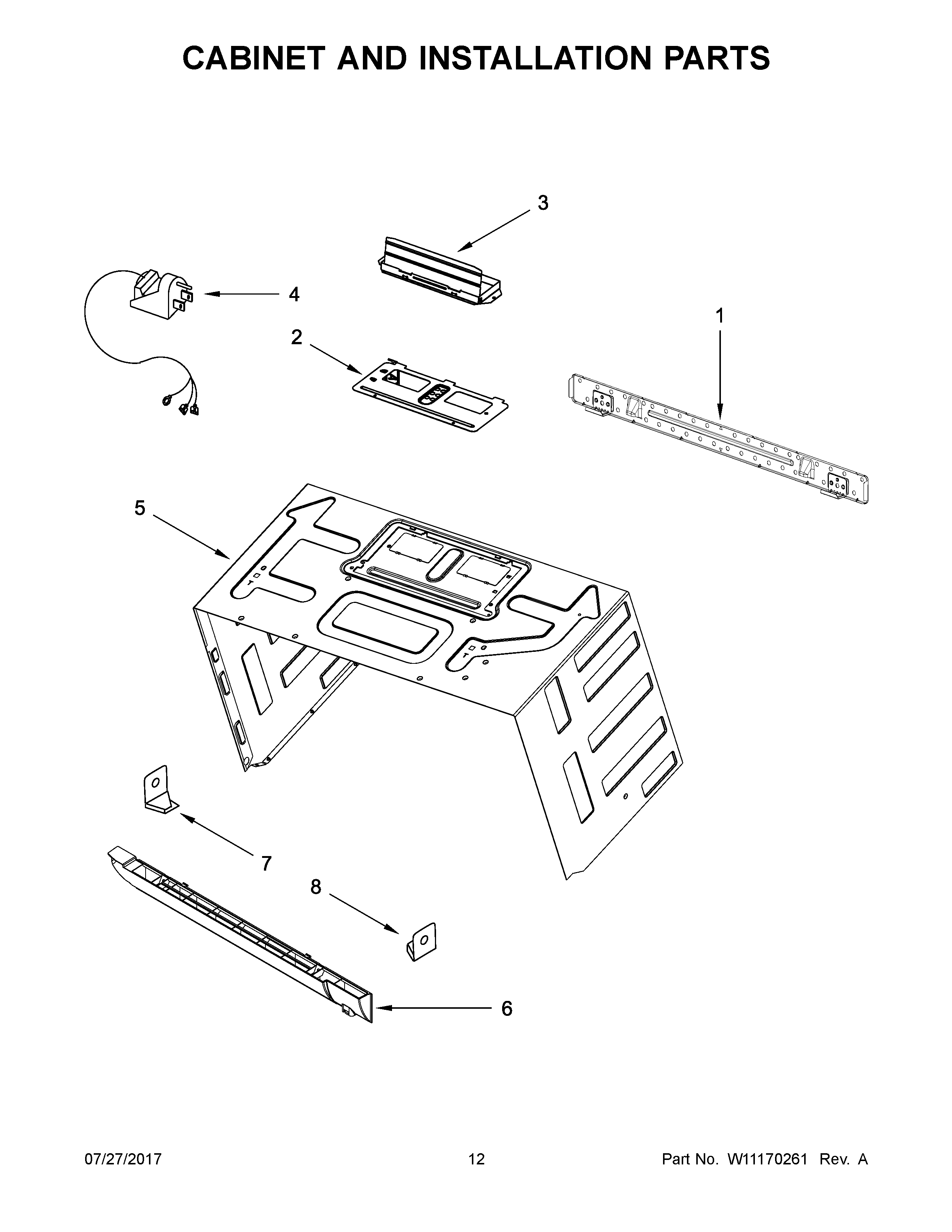

JMV8208CB4 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MAY W11087329
NI	MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NI	MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1	PLATE, MOUNTING
2	COVER, FAN MOTOR
3	DAMPER
4	CORD-POWER
5	MAY W10571408
6	GRILLE, VENT (BLACK)
7	HOLDER, VENT LEFT SIDE (BLACK)
8	HOLDER, VENT RIGHT SIDE (BLACK)
