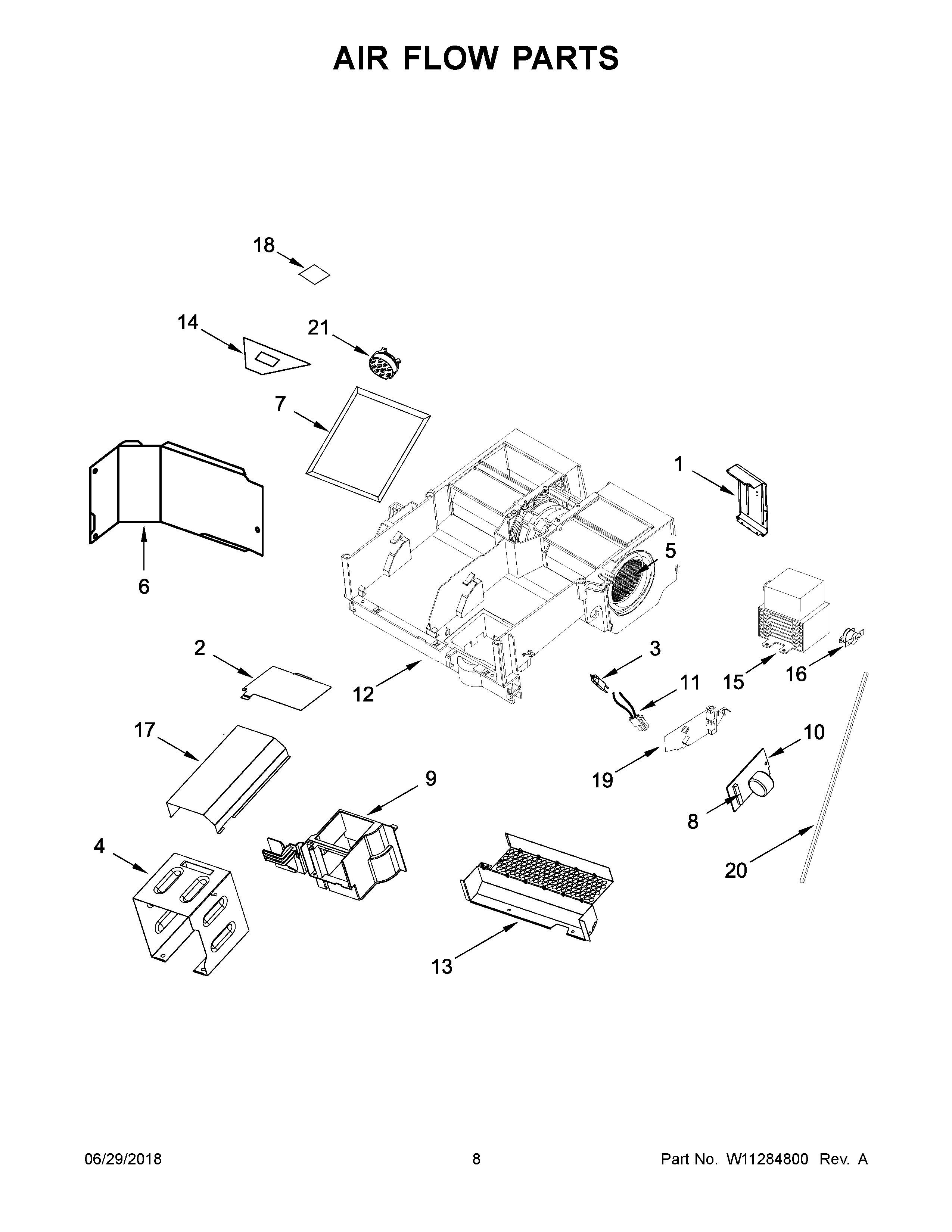

JMV8208CB5 05 – AIR FLOW PARTS

JMV8208CB5 05 – AIR FLOW PARTS

Written by

in

JMV8208CB5 05 – AIR FLOW PARTS

Products

Position	Product
1	DEFLECTOR, AIR
2	MAY 8206382
3	LAMP, HALOGEN
4	MAY W10556824
5	MOTOR, FAN
6	PLATE, AIR DEFLECTOR
7	MAY 8206230
8	MAY W10138793
9	MAY W10892380
10	MAY W10531156
11	MAY W10657044
12	BASEPLATE, AIR GUIDE
13	MAY W10629803
14	SOCKET, MOTOR WIRE
15	MAGNETRON
16	THERMOSTAT, MAGNETRON
17	OUTLET, CAVITY (BACK)
18	MAY W10531724
19	COVER, DUCT (RIGHT)
20	MAY W10571180
21	MAY W10557536
