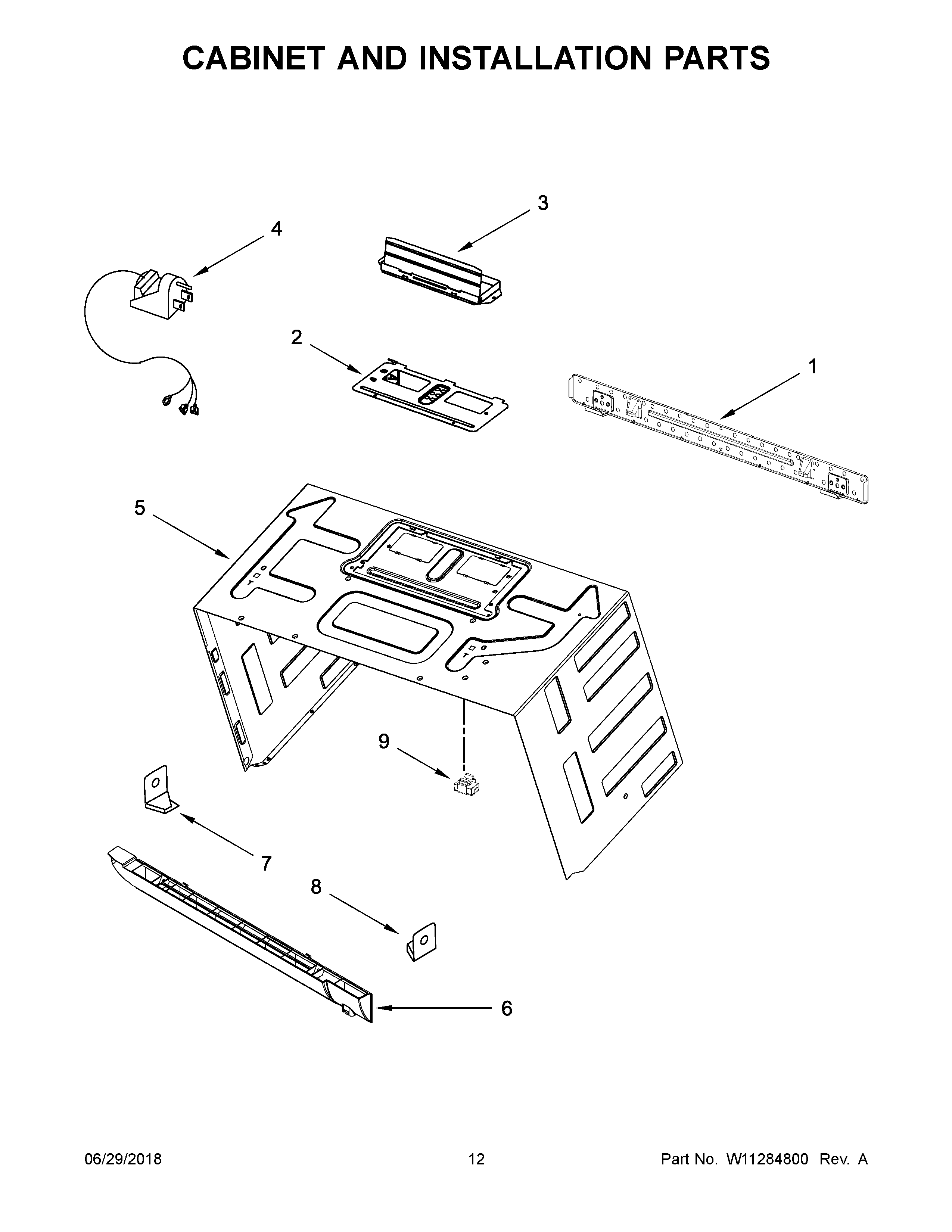

JMV8208CB5 07 – CABINET AND INSTALLATION PARTS

JMV8208CB5 07 – CABINET AND INSTALLATION PARTS

Written by

in

JMV8208CB5 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NIMISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2COVER, FAN MOTOR
3DAMPER
4CORD-POWER
5CASE, OUTER (BLACK)
6GRILLE, VENT (BLACK)
7HOLDER, VENT LEFT SIDE (BLACK)
8HOLDER, VENT RIGHT SIDE (BLACK)
9ASSEMBLY, MOUNTING NUT
