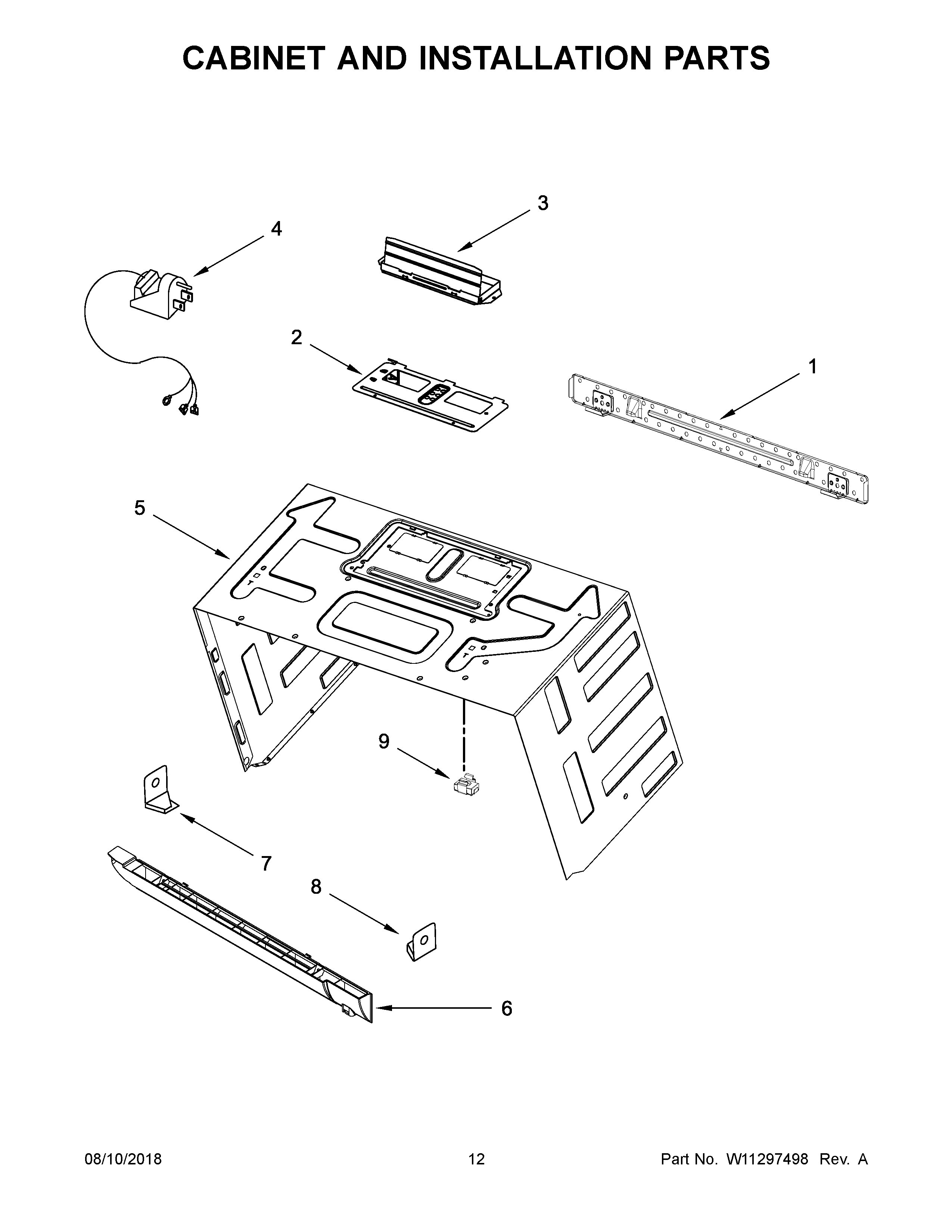

JMV8208CB6 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NI	MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE
NI	MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1	PLATE, MOUNTING
2	COVER, FAN MOTOR
3	DAMPER
4	CORD-POWER
5	CASE, OUTER (BLACK)
6	GRILLE, VENT (BLACK)
7	HOLDER, VENT LEFT SIDE (BLACK)
8	HOLDER, VENT RIGHT SIDE (BLACK)
9	ASSEMBLY, MOUNTING NUT
