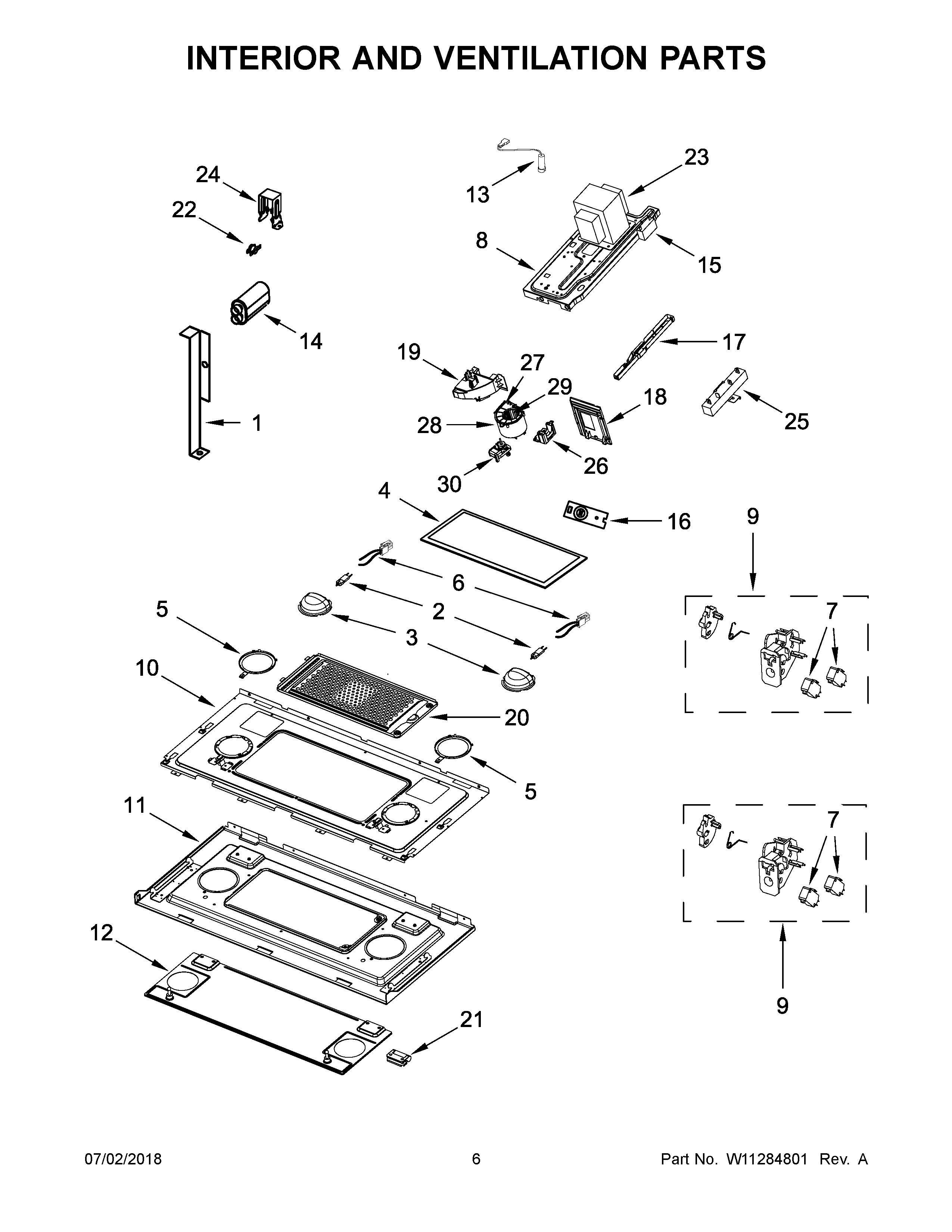

JMV8208CS4 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	BRACKET, TOP CAVITY
2	LAMP, HALOGEN
3	MAY W10574986
4	MAY W10208631
5	MAY W10666614
6	MAY W10657044
7	LINER (NOT A SERVICEABLE PART)
8	MAY W10631826
9	ASSEMBLY, INTERLOCK (INCLUDES SWITCHES)
10	MAY W10614209
11	MAY W10614222
12	MAY W10614211
13	MAY W10575765
14	MAY W10561770
15	MAY W10605897
16	MAY W10536989
17	MAY W10540718
18	DEFLECTOR, AIR
19	AIR GUIDE, MAGNETRON
20	MAY W10614204
21	MAY W10574978
22	THERMOSTAT, CAVITY
23	TRANSFORMER, HIGH VOLTAGE
24	BRACKET, CAPACITOR
25	MAY W10568805
26	MAY W10533480
27	MAY W10533502
28	MAY W10533501
29	MAY W10533503
30	MOTOR, COOLING FAN
