JMV8208WB0 03 – INTERIOR AND VENTILATION PARTS – Aparts

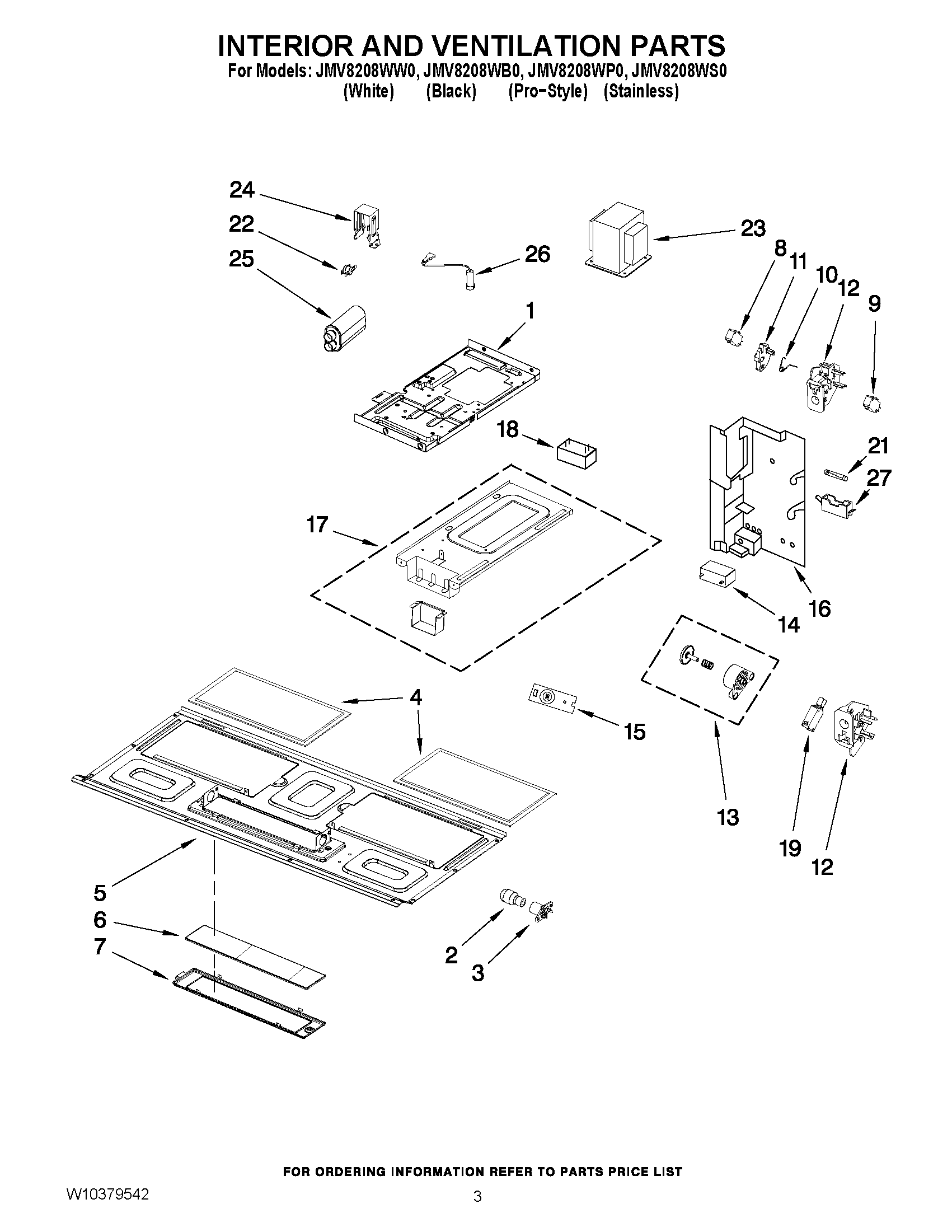

JMV8208WB0 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY W10286815
2	MAY W10208564
3	MAY W10270797
4	MAY W10208631
5	MAY W10245196
6	MAY W10210875
7	MAY W10210873
8	SWITCH, MICRO V15T16-CZ200
9	SWITCH, MICRO V15T16-CC200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
12	MAY W10156813
13	MAY W10197758
14	MAY W10245191
15	Thermistor (PCBA)
16	MAY W10245193
17	MAY W10310720
18	MAY W10245190
19	SWITCH, MICRO V15T16-CP200
21	MAY W10138793
22	THERMOSTAT
23	MAY W10248271
24	MAY W10156817
25	CAPACITOR, HIGH VOLTAGE
26	DIODE, H.V.
27	MAY W10245194
