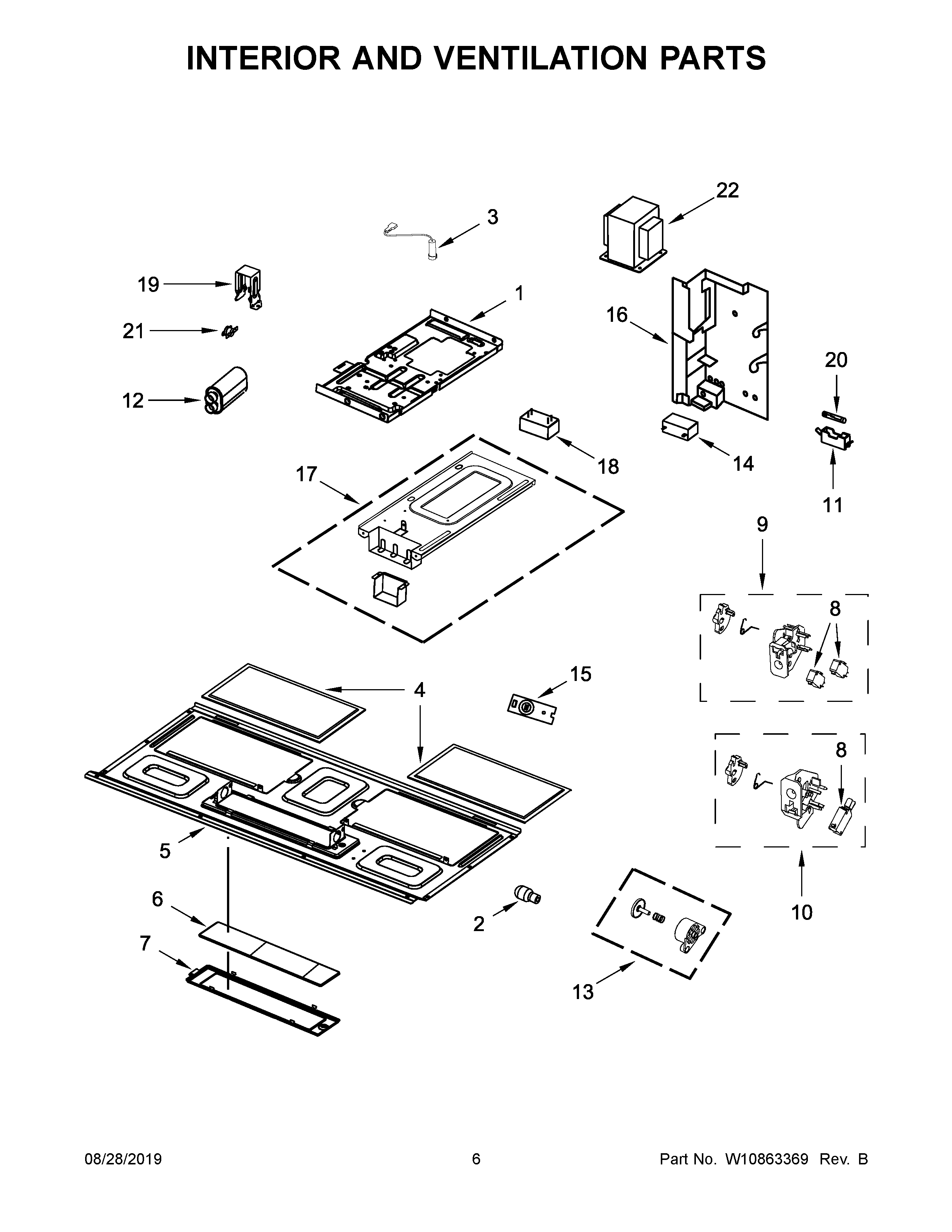

JMV8208WP1 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1MAY W10286815
2LAMP, HALOGEN
3DIODE, H.V.
4MAY W10208631
5MAY W10245196
6MAY W10210875
7MAY W10210873
8LINER (NOT A SERVICEABLE PART)
9ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES)
10ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES)
11MAY W10245194
12CAPACITOR, HIGH VOLTAGE
13MAY W10197758
14MAY W10605897
15Thermistor (PCBA)
16AIR GUIDE, LOWER
17MAY W10310720
18MAY W10245190
19BRACKET, CAPACITOR
20MAY W10138793
21THERMOSTAT, CAVITY 125/-35 CELCIUS
22TRANSFORMER, HIGH VOLTAGE
