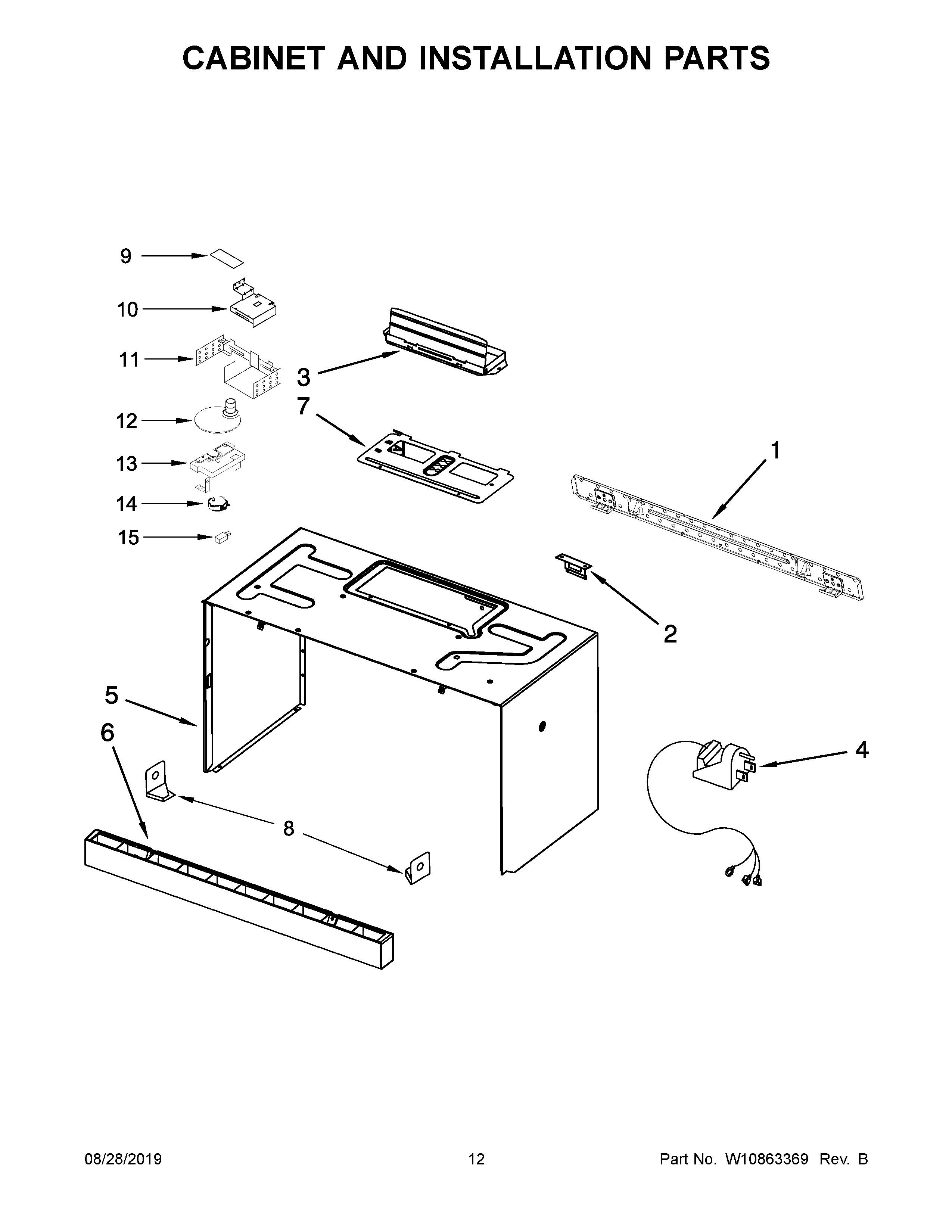

JMV8208WS1 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, VENT PCBA
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NI	MAY 8205948
NI	MAY W10530095
NI	MISCELLANEOUS PARTS, HARNESS, MAGNETRON AND TRANSFORMER
NI	MISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TURNTABLE
1	PLATE, MOUNTING
2	MAY 8206385
3	DAMPER
4	CORD-POWER
5	CASE, OUTER (WHITE)
5A	CASE, OUTER (BLACK)
6A	MAY W10310713
6	GRILLE, VENT (WHITE)
6B	GRILLE, VENT (STAINLESS)
7	MAY W10210832
8	HOLDER, VENT (WHITE)
8A	HOLDER, VENT (BLACK)
9	MAY W10499304
10	MAY W10310722
11	MAY W10508582
12	CAM, ROTATION
13	PLATE, WATER SPILLAGE
14	MAY W10310726
15	MAY W10310727
