JMV9169BAW 02 – BODY/BLOWER MOTOR

JMV9169BAW 02 – BODY/BLOWER MOTOR

Written by

in

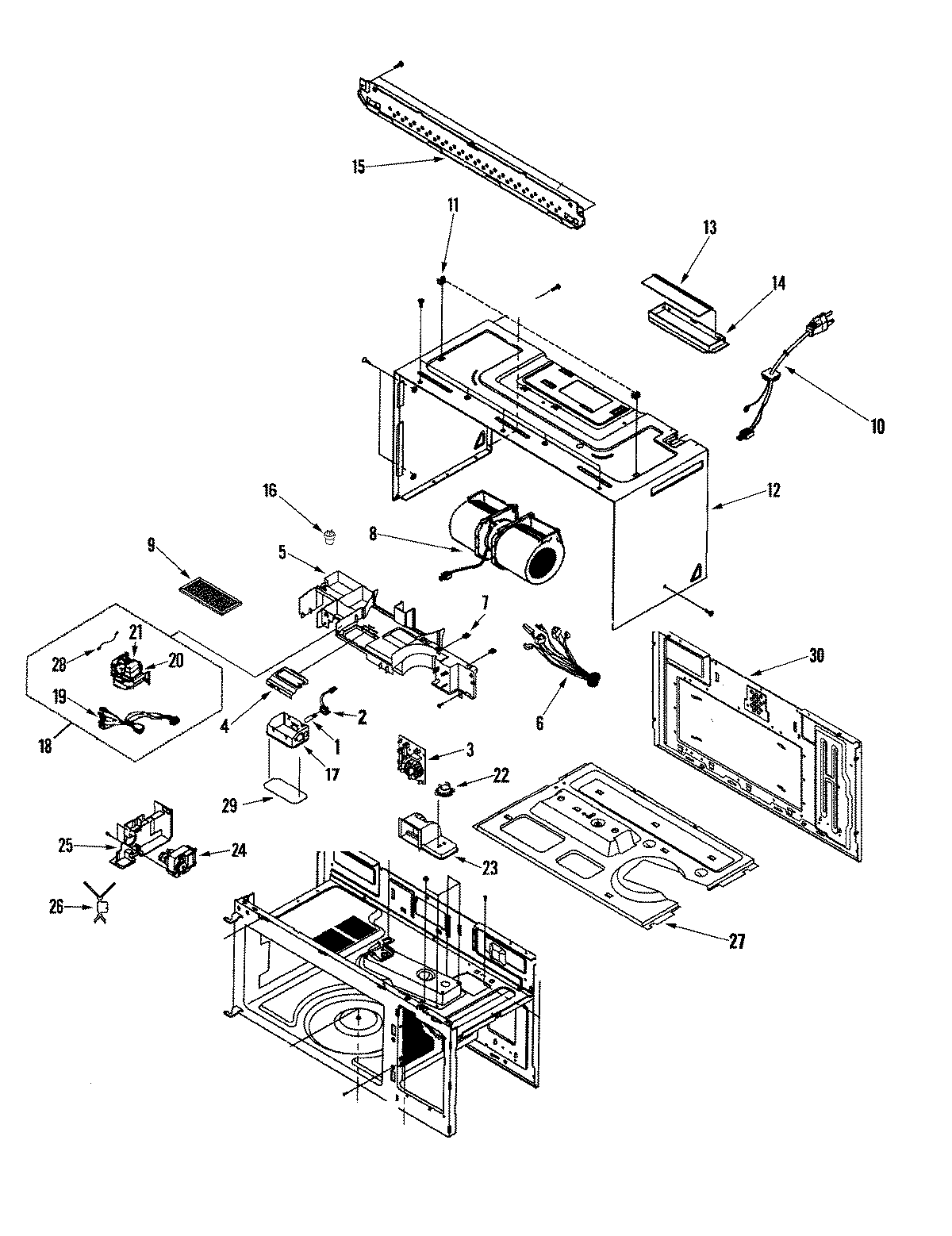

JMV9169BAW 02 – BODY/BLOWER MOTOR

Products

PositionProduct
14713-001165 Samsung Halogen Light Bulb 20W 120V 2 Pin G8 8mm Base
2MAY DE47-00032A
3DE96-00400A Samsung Microwave Oven Noise Filter Assembly
4MAY DE61-00806A
5MAY DE67-00177A
6MAY DE96-00556A
7MAY DE60-30063A
8MAY DE31-00028C
9DE63-00367H Samsung Charcoal Filter
10DE96-00218A Samsung Assembly Power Cord
11DE92-90508A Samsung Microwave Mounting Nut Holder Assembly
12MAY DE64-01144B
13COVER-DAMPER
14MAY DE72-40022A
15DE70-00561A Samsung Microwave Mounting Plate Bracket
16MAY DE61-00525A
16SENSOR, GAS
17MAY DE61-00486A
18MAY DE97-00423A
18BRACKET, CAM
18DRIVE, MOTOR
18LOUVER, CAM
19HARNESS, WIRE
20MAY 3405-001051
21MAY 3405-001050
22DE47-20007A Samsung Microwave Oven Thermostat
23MAY DE67-00186A
24MAY DE31-00032A
25MAY DE61-00601A
26MAY DE66-00135A
28MAY DE39-00364A
29MAY DE64-01088A
30MAY DE97-00426A
