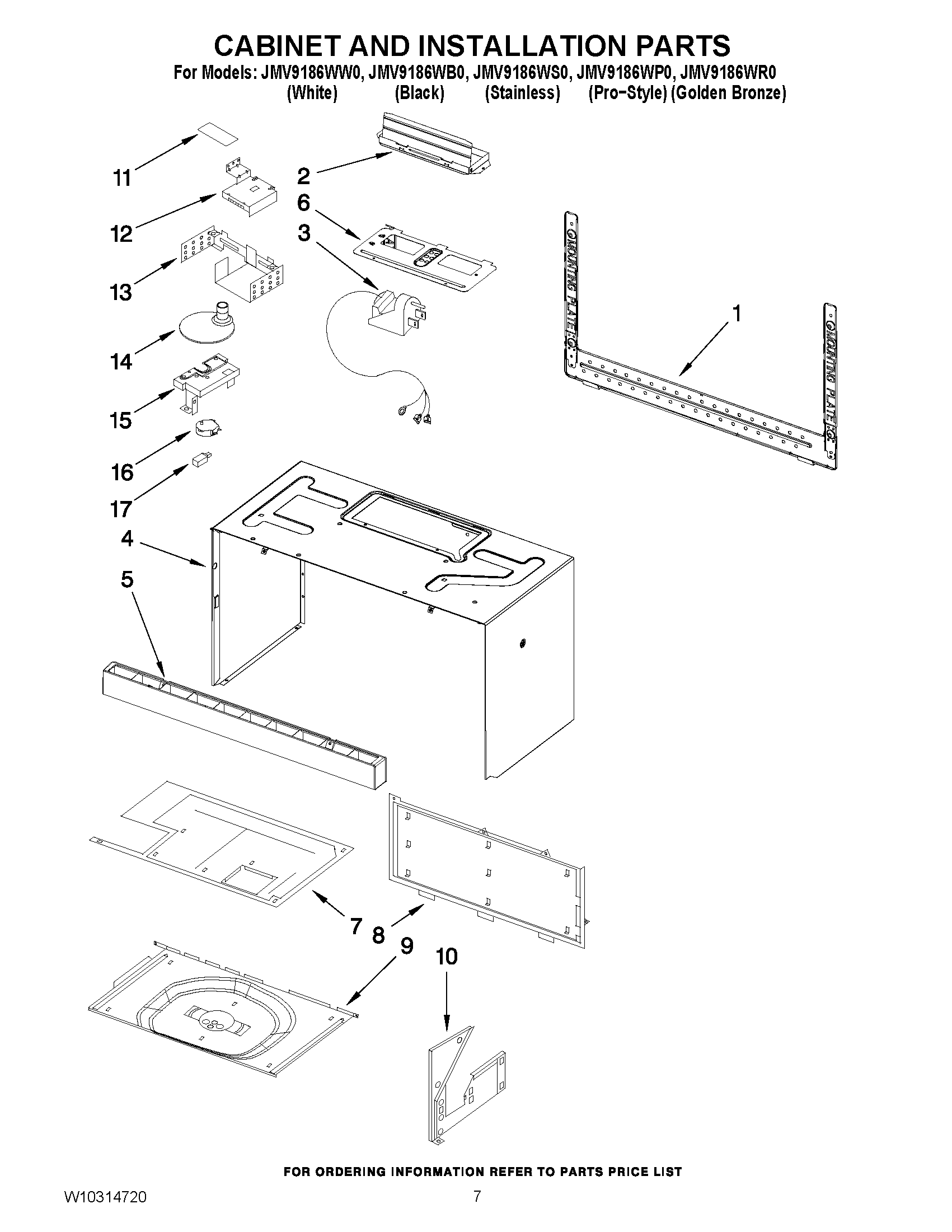

JMV9186WS0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMAY W10310698
NIMAY W10310699
NIMAY 8205948
NIMAY 8205696
NIMAY W10259386
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMAY W10107760
1MAY W10245177
2MAY 8206442
3MAY 8206388
4CASE, OUTER
4MAY W10244765
5GRILLE, VENT (WHITE)
5MAY W10310713
5GRILLE, VENT (STAINLESS)
5MAY W10310712
6MAY W10210832
7ASSEMBLY, TOP PLATE
8ASSEMBLY, BACK PLATE
9ASSEMBLY, BOTTOM PLATE
10ASSEMBLY, RIGHT PLATE
11MAY W10210858
12MAY W10310722
13MAY W10310723
14MAY W10310724
15MAY W10310725
16MAY W10310726
17MAY W10310727
