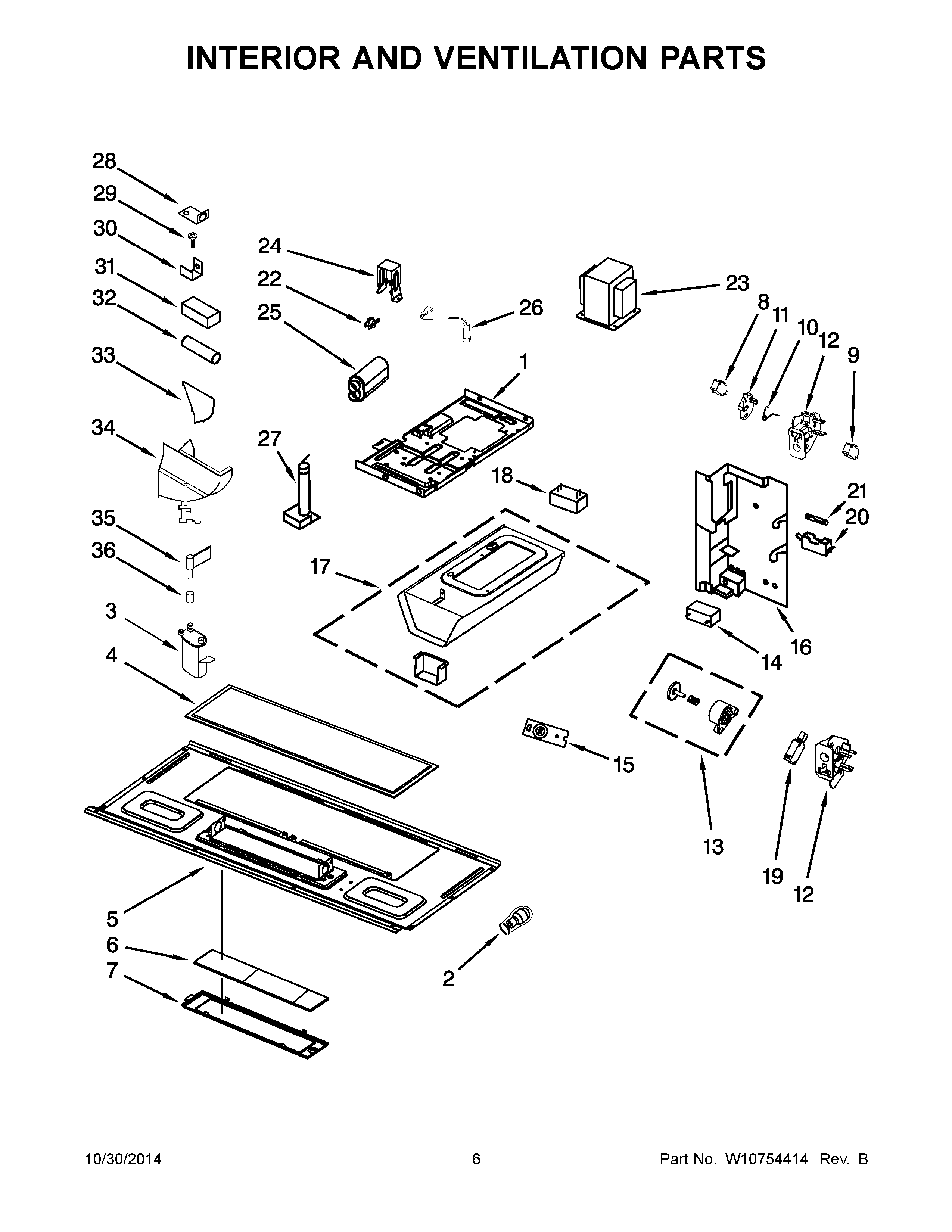

JMV9186WS2 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY W10248270
2	MAY W10208564
3	THERMOACTUATOR, FORCED CONVECTION
4	MAY W10208631
5	MAY W10245196
6	MAY W10210875
7	MAY W10210873
8	SWITCH, MICRO V15T16-CZ200
9	SWITCH, MICRO V15T16-CC200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
12A	MAY W10156813
13	MAY W10197758
14	MAY W10605897
15	Thermistor (PCBA)
16	AIR GUIDE, LOWER
17	MAY W10310720
18	MAY W10245190
19	SWITCH, MICRO V15T16-CP200
22	CAVITY, THERMAL CUTOUT
23	TRANSFORMER, HIGH VOLTAGE
24	BRACKET, CAPACITOR
25	CAPACITOR, HIGH VOLTAGE
26	DIODE, H.V.
27	MAY W10245188
28	MAY W10259248
29	THERMOSTAT, CONVECTION
30	CLIP
31	MAY W10245194
32	MAY W10138793
33	MAY W10248274
34	MAY W10248276
35	MAY W10248277
36	MAY W10248278
