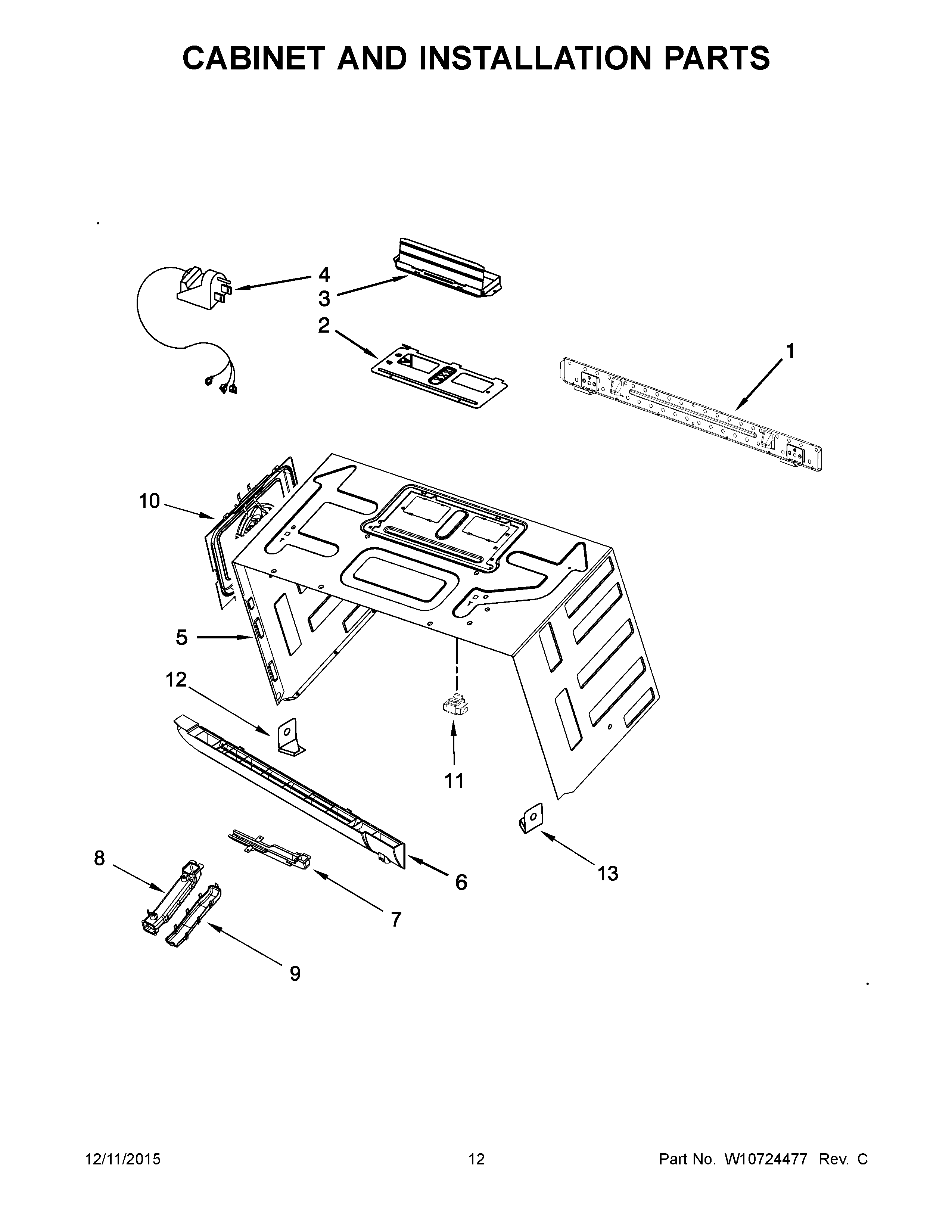

JMV9196CB1 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMAY W10571450
NIMISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NIMISCELLANEOUS PARTS, HARNESS, DOOR CONTROL LIGHT CABLE
NIMISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE
NIMAY W10571451
NIMAY W10571454
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMAY W10572351
NIMISCELLANEOUS PARTS, ACCESSORIES, PLATE, DOOR BAFFLE (HEAT REFLECTOR)
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIInstallation, Hardware
NILINER (NOT A SERVICEABLE PART)
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
1PLATE, MOUNTING
2COVER, FAN MOTOR
3MAY 8206442
4CORD-POWER
5MAY W10571408
6MAY W10701701
7MAY W10570212
8MAY W10533488
9MAY W10533489
10MAY W10665531
11ASSEMBLY, MOUNTING NUT
12HOLDER, VENT LEFT SIDE (BLACK)
13HOLDER, VENT RIGHT SIDE (BLACK)
