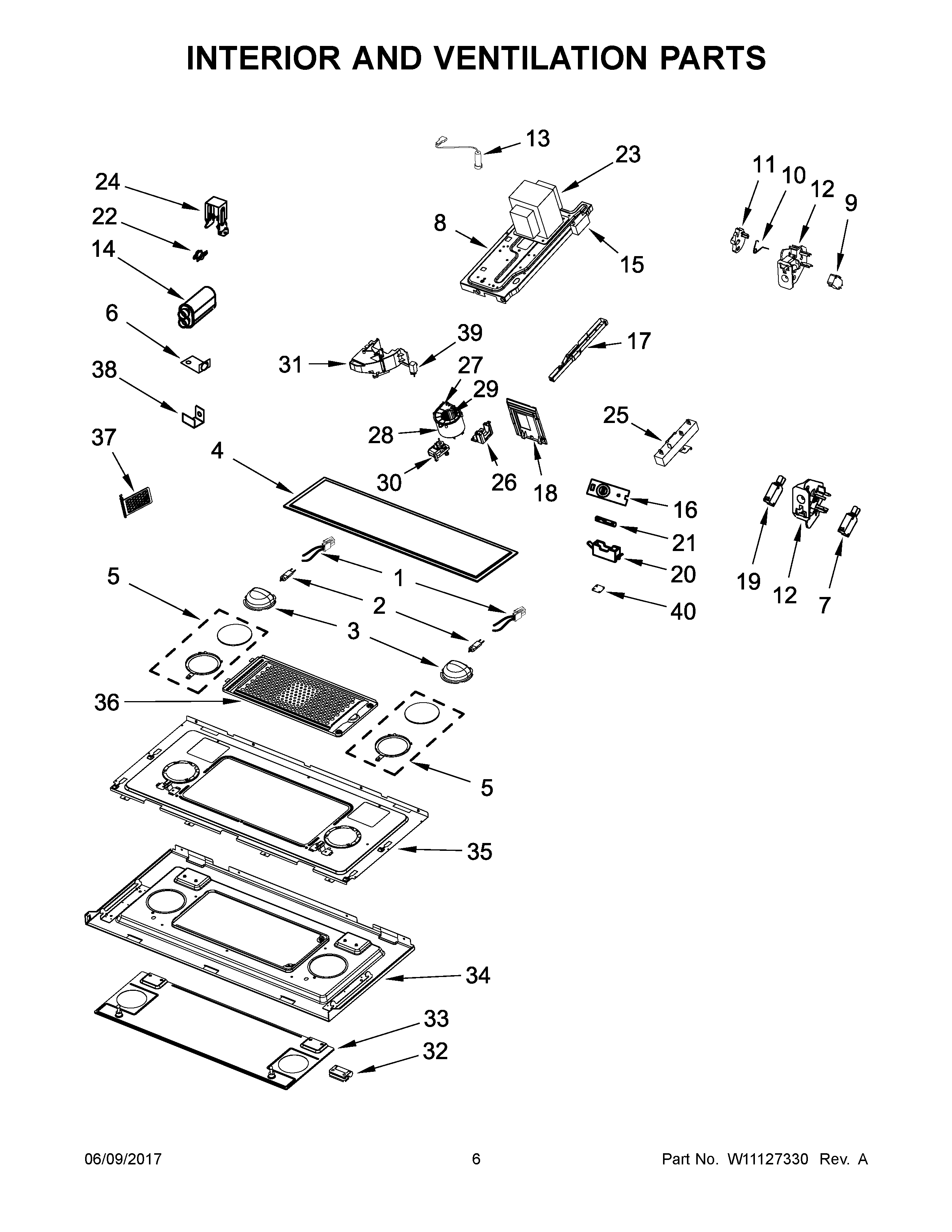

JMV9196CB2 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY W10572351
2	LAMP, HALOGEN
3	MAY W10574986
4	MAY W10208631
5	MAY W10666614
6	MAY W10259248
7	SWITCH, MICRO V15T16-CC200
8	CHASSIS
9	SWITCH, MICRO V15T16-CP200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
12A	MAY W10156813
13	MAY W10575765
14	MAY W10561770
15	MAY W10605897
16	MAY W10536989
17	MAY W10540718
18	MAY W10533107
19	SWITCH, MICRO V15T16-CZ200
20	MAY W10245194
21	MAY W10138793
22	MAY W10599629
23	TRANSFORMER, HIGH VOLTAGE
24	BRACKET, CAPACITOR
25	MAY W10568805
26	MAY W10533480
27	MAY W10533502
28	MAY W10533501
29	MAY W10533503
30	MAY W10536556
31	MAY W10631701
32	MAY W10574978
33	MAY W10614213
34	MAY W10614222
35	MAY W10614209
36	MAY W10614204
37	DOOR, VALVE
38	CLIP
39	MAY W10458325
40	MAY W10523009
