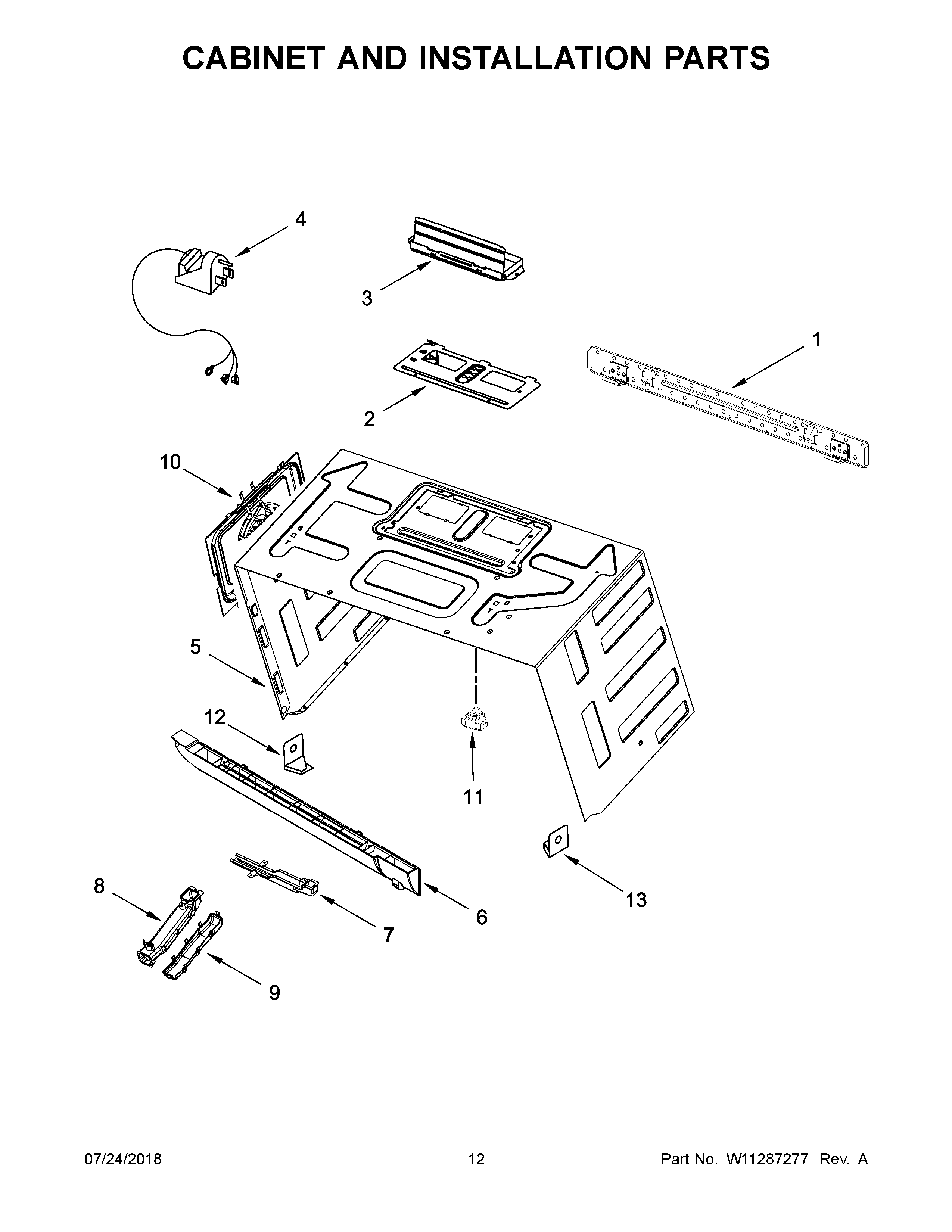

JMV9196CB5 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE
NI	MISCELLANEOUS PARTS, HARNESS, DOOR CONTROL LIGHT CABLE
NI	MAY W10571451
NI	MISCELLANEOUS PARTS, ACCESSORIES, PLATE, DOOR BAFFLE (HEAT REFLECTOR)
NI	MAY W10571453
NI	MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NI	INSULATION, BOTTOM
NI	MISCELLANEOUS PARTS, HARNESS, MAIN
NI	MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NI	LINER (NOT A SERVICEABLE PART)
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NI	MAY W10571450
1	PLATE, MOUNTING
2	COVER, FAN MOTOR
3	DAMPER
4	CORD-POWER
5	CASE, OUTER (BLACK)
6	MAY W10701701
7	MAY W10570212
8	DUCT, COOLING (UPPER)
9	MAY W10533489
10	MAY W10665531
11	ASSEMBLY, MOUNTING NUT
12	HOLDER, VENT LEFT SIDE (BLACK)
13	HOLDER, VENT RIGHT SIDE (BLACK)
