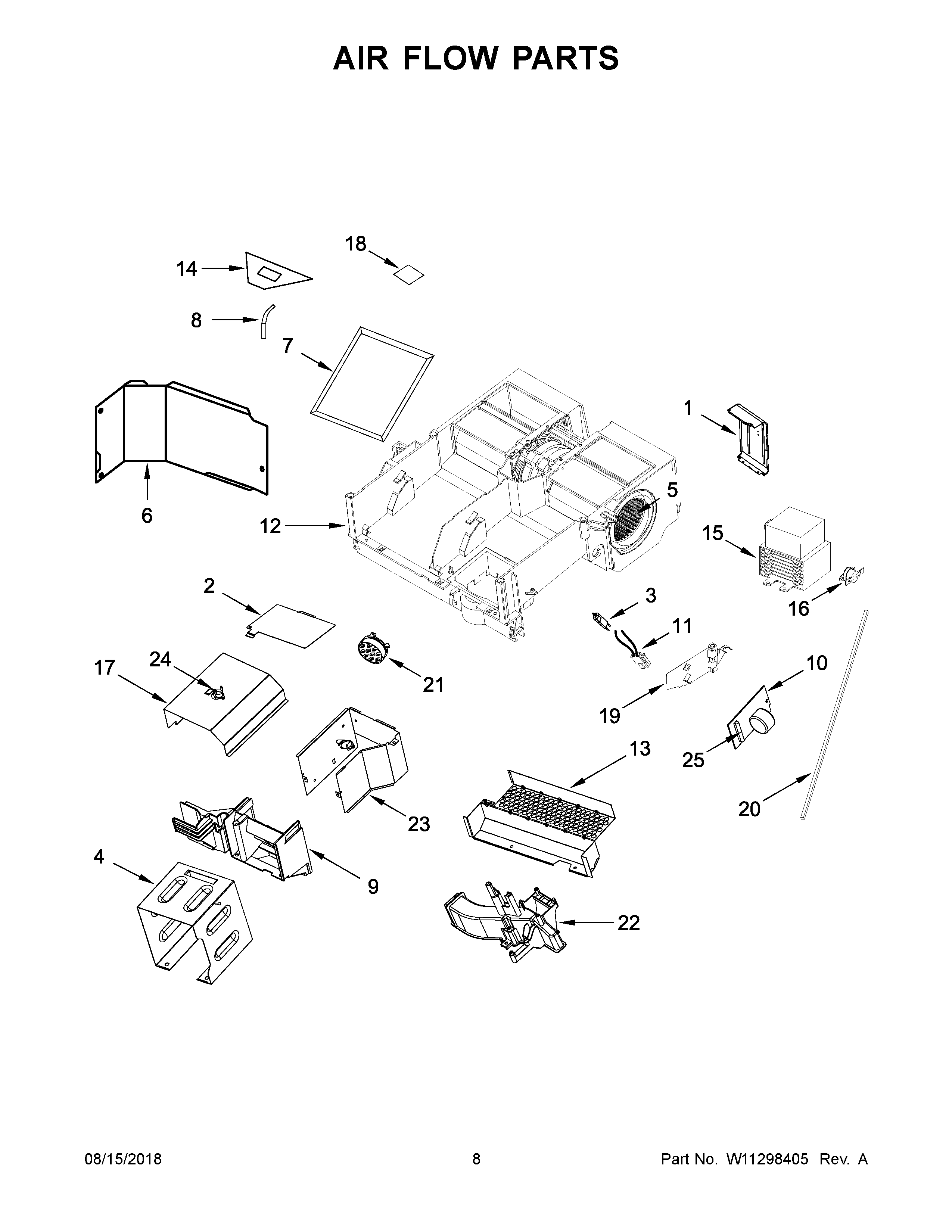

JMV9196CB6 05 – AIR FLOW PARTS

JMV9196CB6 05 – AIR FLOW PARTS

Written by

in

JMV9196CB6 05 – AIR FLOW PARTS

Products

PositionProduct
1MAY W10631698
2MAY 8206382
3LAMP, HALOGEN
4MAY W10556824
5MOTOR, FAN
6MAY W10533487
7MAY 8206230
8MAY W10557537
9DUCT, CAVITY (FRONT)
10MAY W10531156
11HARNESS, FADE IN / FADE OUT
12MAY W10632409
13MAY W10629803
14SOCKET, MOTOR WIRE
15MAGNETRON
16MAY W10591803
17MAY W10533112
18MAY W10531724
19MAY W10533484
20MAY W10571180
21MAY W10557536
22ASSEMBLY, AIRGUIDE GRILLE
23MAY W10533483
24MAY W10654514
25MAY W10138793
