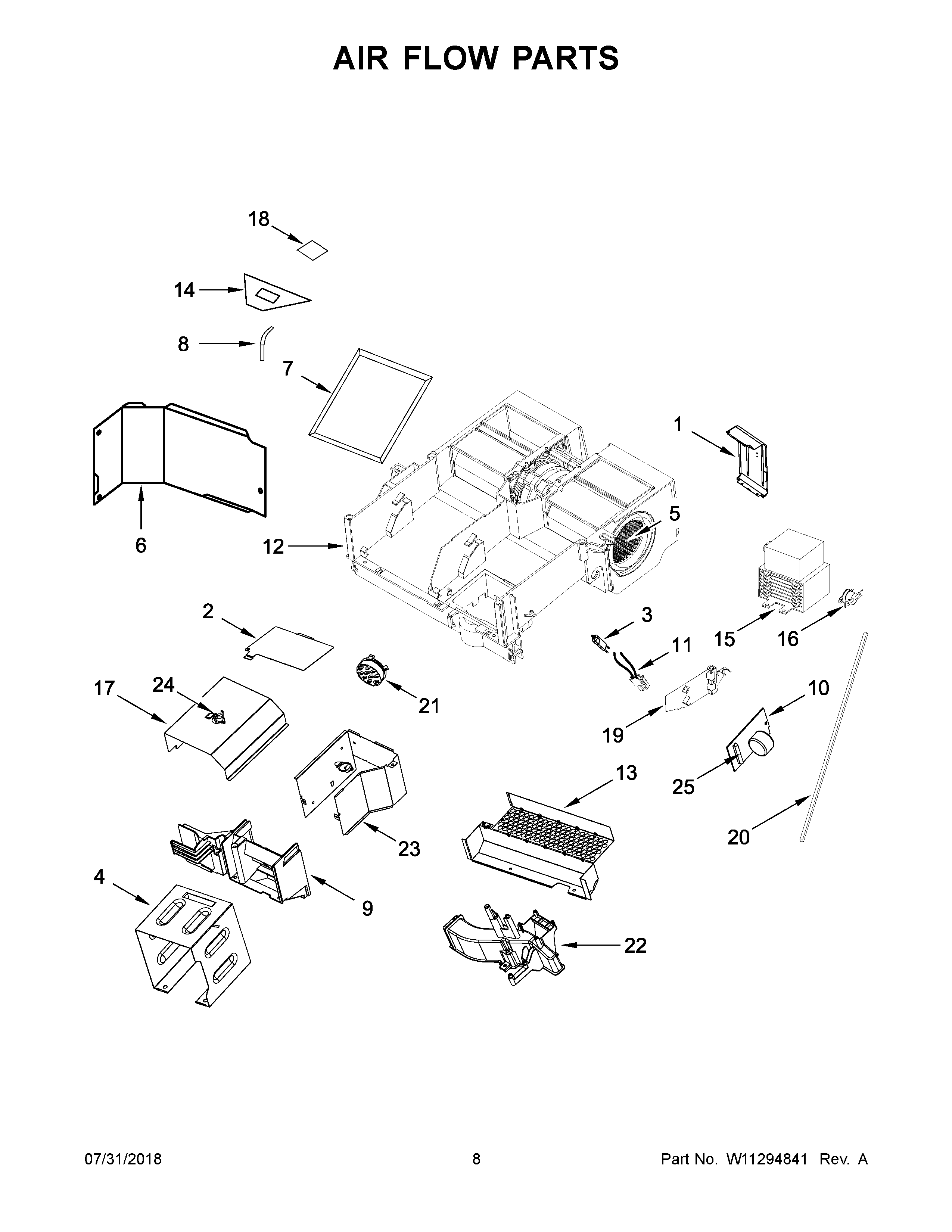

JMV9196CS4 05 – AIR FLOW PARTS

Products

Position	Product
1	MAY W10631698
2	MAY 8206382
3	LAMP, HALOGEN
4	MAY W10556824
5	MOTOR, FAN
6	PLATE, AIR GUIDE
7	MAY 8206230
8	MAY W10557537
9	DUCT, CAVITY (FRONT)
10	MAY W10531156
11	HARNESS, FADE IN / FADE OUT
12	MAY W10632409
13	MAY W10629803
14	SOCKET, MOTOR WIRE
15	MAGNETRON
16	MAY W10591803
17	MAY W10533112
18	MAY W10531724
19	COVER, DUCT (RIGHT)
20	MAY W10571180
21	MAY W10557536
22	ASSEMBLY, AIRGUIDE GRILLE
23	MAY W10533483
24	MAY W10654514
25	MAY W10138793
