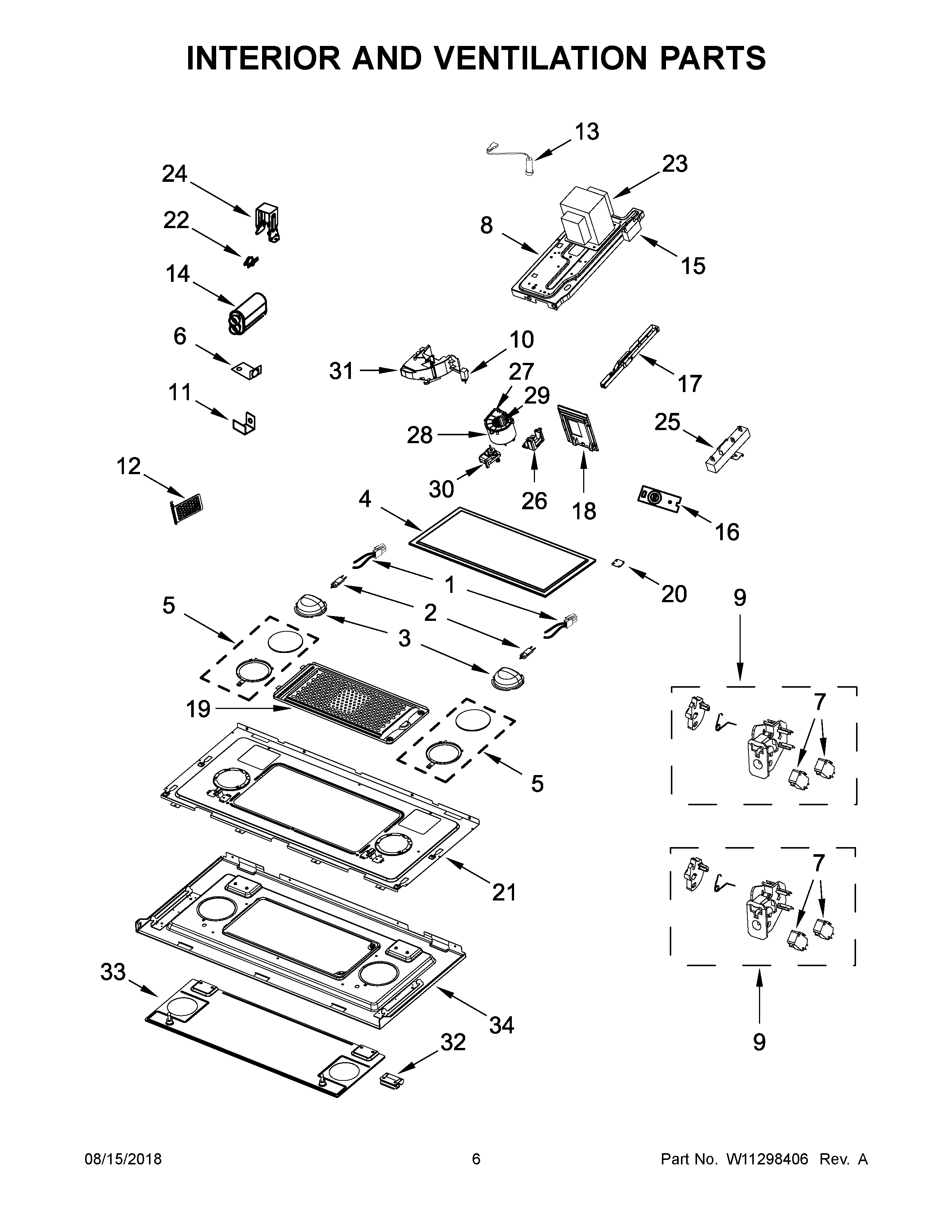

JMV9196CS6 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	MAY W10572351
2	LAMP, HALOGEN
3	MAY W10574986
4	MAY W10208631
5	MAY W10666614
6	MAY W10259248
7	LINER (NOT A SERVICEABLE PART)
8	CHASSIS
9	ASSEMBLY, INTERLOCK (INCLUDES SWITCHES)
10	MAY W10458325
11	CLIP
12	MAY W10533486
13	DIODE, HIGH VOLTAGE
14	MAY W10561770
15	MAY W10605897
16	MAY W10536989
17	MAY W10540718
18	MAY W10533107
19	MAY W10614204
20	MAY W10523009
21	MAY W10614209
22	MAY W10599629
23	TRANSFORMER, HIGH VOLTAGE
24	BRACKET, CAPACITOR
25	MAY W10568805
26	MAY W10533480
27	MAY W10533502
28	MAY W10533501
29	MAY W10533503
30	MOTOR, COOLING FAN
31	MAY W10631701
32	MAY W10574978
33	MAY W10614211
34	MAY W10614222
