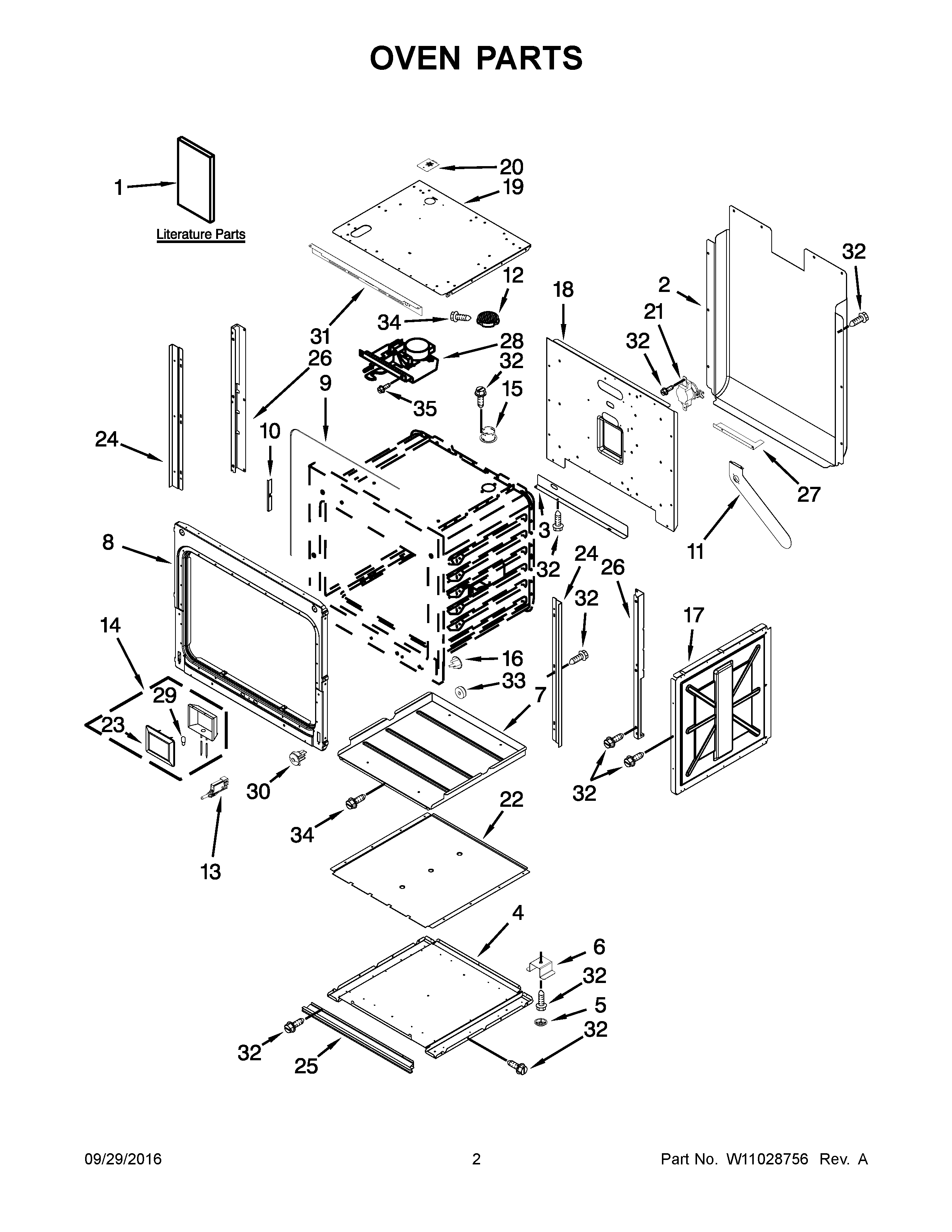

JMW2327WS02 02 – OVEN PARTS

Written by

Products

Position	Product
NI	MAY W10186990
NI	MAY 461968971522
NI	MISCELLANEOUS PARTS, HARNESS, COMM CMB POWER
NI	RELAY OMRON
NI	MAY 461967903621
NI	RELAY OEG
NI	MAY W10277591
NI	HARNESS, LATCH NO MEAT PRB
NI	MAY W10213747
NI	WIRING HARNESS PARTS, HOLDER, FUSE
NI	WIRING HARNESS PARTS, FUSE, TIME DELAY
NI	WIRING HARNESS PARTS, HARNESS, SIGNAL EXTENDED
NI	WIRING HARNESS PARTS, CONDUIT, COMBO
NI	MAY W10513963
NI	WIRING HARNESS PARTS, HARNESS, MAIN
1D	TIPS, SAFE COOKING (FRENCH)
1E	MAY W10213735
1F	MAY W10213736
1C	TIPS, SAFE COOKING (ENGLISH)
1B	MAY W10221391
1A	MAY W10221392
1	INSTALLATION INSTRUCTIONS
2	MAY 2624F043-51
3	BAFFLE, REAR LOWER
4	MAY W10280326
5	MAY 8038P035-60
6	MAY W10213759
7	MAY 3401F079-45
8	MAY W10186993
9	MAY W10213819
10	MAY W10176218
11	MAY 4006W218-45
12	SCREEN, SMOKE ELM.
13	MAY W10286173
14	MAY W10175989
15	MAY 8026P066-60
16	MAY 7718P021-60
17	MAY W10175995
18	MAY W10213725
19	MAY W10175999
20	MAY W10213792
21	SWITCH, HI LIMIT
22	CHANNEL, BOTTOM AIR
23	MAY W10187003
24	MAY W10277588
25	MAY W10176037
26A	MAY W10277424
26	MAY W10277423
27	MAY W10186984
28	LATCH, DOOR
29	BULB, OVEN
30	MAY W10213745
31	MAY W10176019
32	MAY 7101P426- 60
33	BUMPER, RUBBER
34	MAY W10236129
35	MAY W10236043
