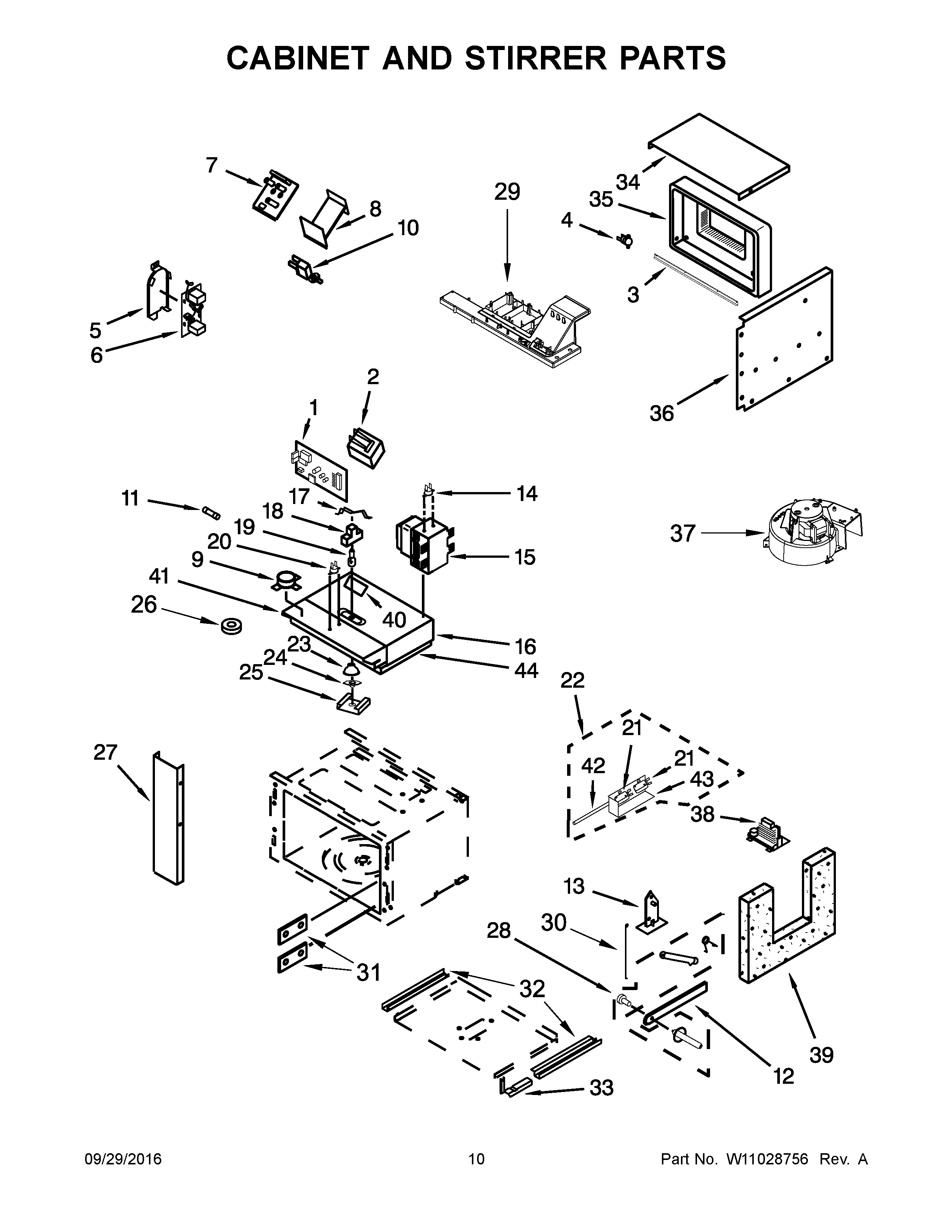

JMW2327WS02 06 – CABINET AND STIRRER PARTS

JMW2327WS02 06 – CABINET AND STIRRER PARTS

Written by

in

JMW2327WS02 06 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W10626304
2	TRANSFORMER, LIGHT (20V)
3	MAY W10291274
4	MAY W10120223
6	FILTER, NOISE
7	MAY W10578541
9	SENSOR, HUMIDITY
10	ACTUATOR
11	FUSE
12	ARM, SLIDING
13	SUPPORT
14	THERMOSTAT, MAGNETRON
15	MAY 461967847321
17	SPRING, LAMP
18	HOLDER, LAMP
19	LAMP, HALOGEN
20	MAY W10287985
21	SWITCH
22	MAY W10358246
23	REFLECTOR
24	LENS, LAMP
25	CLIP, SPRING
26	SEALING, LAMP
27A	MAY 461967013722
27	MAY 461967013732
28	ASSEMBLY, SLIDING ARM
29	DUCT, MAGNETRON
30	SPRING, TORSION
31	PLATE, COVER
32	SUPPORT, BOTTOM
33	MAY 461968979601
37	MAY 461968969271
38	MAY W10468206
42	ROD, RELEASE
43	HOLDER, SWITCH
44	LINER (NOT A SERVICEABLE PART)
