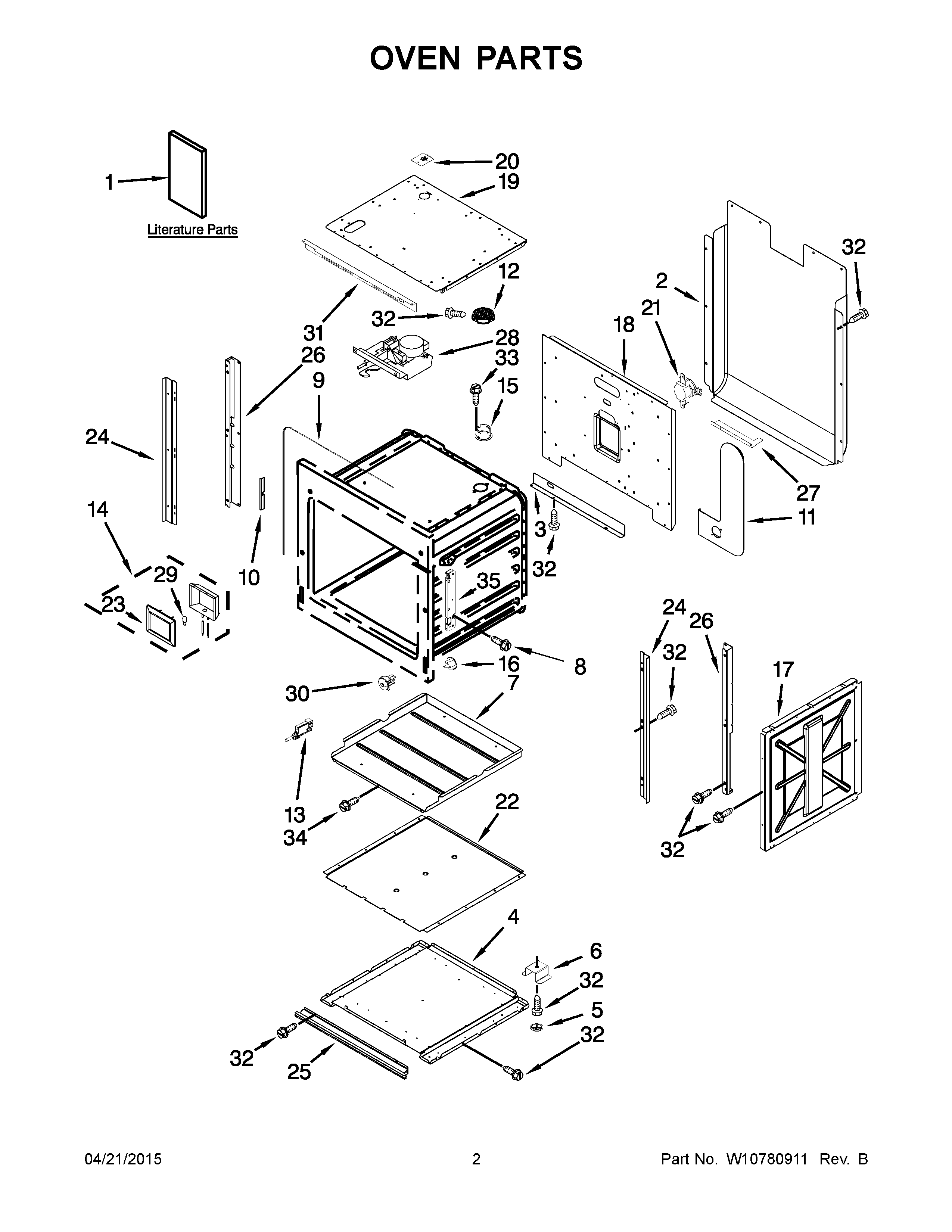

JMW2330WS02 02 – OVEN PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, CONDUIT, COMBO
NI	WIRING HARNESS PARTS, HARNESS, MAIN
NI	MAY W10186989
NI	MAY W10213750
NI	MISCELLANEOUS PARTS, HARNESS, COMM CMB POWER
NI	WIRING HARNESS PARTS, HOLDER, FUSE
NI	WIRING HARNESS PARTS, FUSE, TIME DELAY
NI	HARNESS, LATCH NO MEAT PRB
NI	WIRING HARNESS PARTS, HARNESS, SIGNAL EXTENDED
1B	MAY W10221392
1D	TIPS, SAFE COOKING (ENGLISH)
1	INSTALLATION INSTRUCTIONS
1C	MAY W10221391
1G	MAY W10213736
1A	INSTR, INSTALLER
1F	MAY W10213735
1E	TIPS, SAFE COOKING (FRENCH)
2	MAY 2624F043-51
3	BAFFLE, REAR LOWER
4	MAY W10280327
5	MAY 8038P035-60
6	MAY W10213759
7	MAY 3401F079-45
8	MAY W10254050
9	MAY W10213818
10	MAY W10176218
11	MAY 4006W217-45
12	SCREEN, SMOKE ELM.
13	MAY W10286173
14	MAY W10175989
15	MAY 8026P065-60
16	MAY 7718P033-60
17	MAY W10175995
18	MAY W10213724
19	MAY W10175998
20	MAY W10213792
21	SWITCH, HI LIMIT
22	CHANNEL, BTM AIR BAKE ELEMENT
23	MAY W10187003
24	MAY W10277588
25	MAY W10176036
26	MAY W10277423
26A	MAY W10277424
27	MAY W10186984
28	LATCH, DOOR
29	BULB, OVEN
30	MAY W10213745
31	MAY W10176018
32	MAY 7101P426- 60
33	MAY W10236043
34	MAY W10236129
35	MAY W10175993
