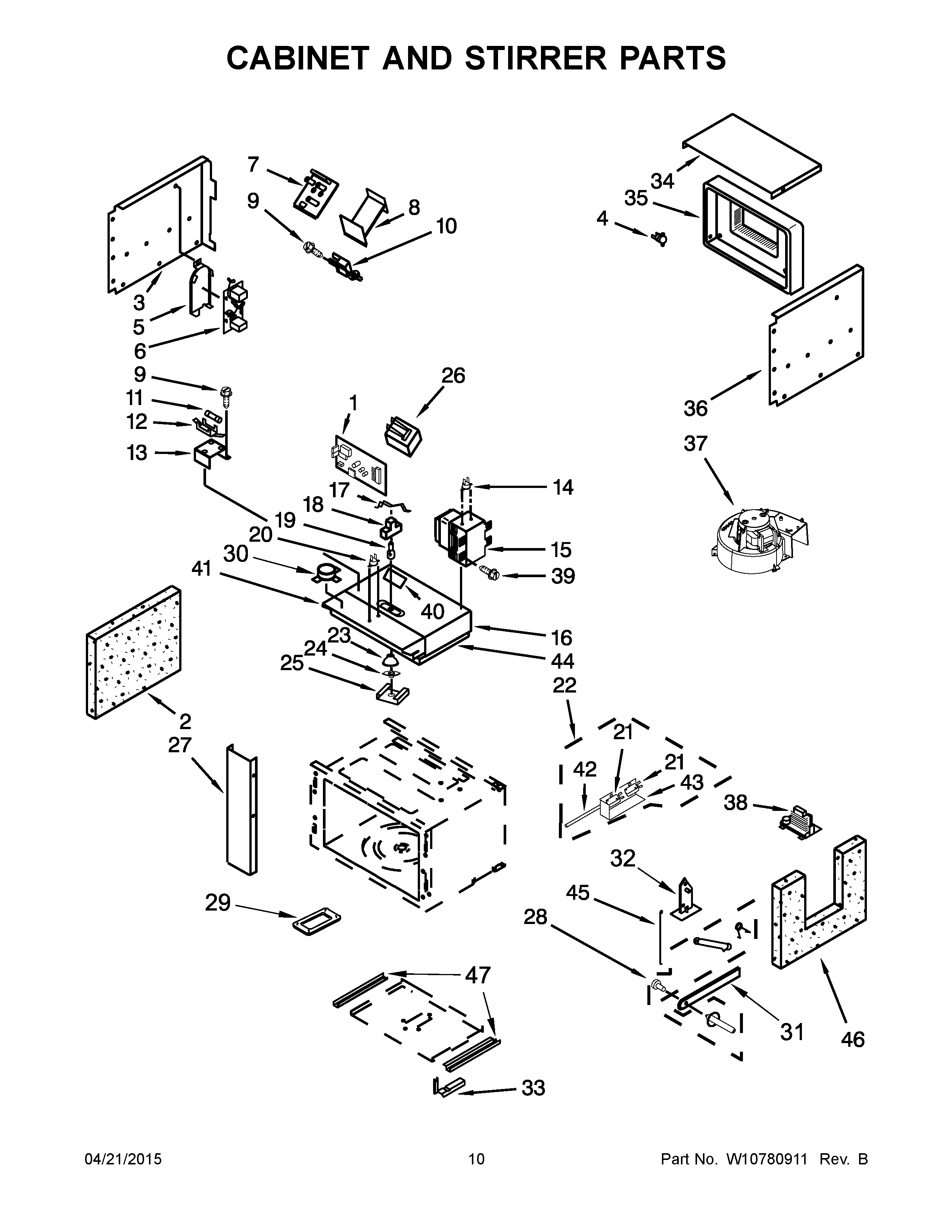

JMW2330WS02 06 – CABINET AND STIRRER PARTS

Products

Position	Product
NI	MAY 461968971522
NI	MAY 461967903621
1	MAY W10626304
4	MAY W10120223
6	FILTER, NOISE
7	MAY W10578541
9	MAY W10131249
10	ACTUATOR
11	FUSE
12	BLOCK, FUSE
13	BRACKET, SUPPORT
14	THERMOSTAT, MAGNETRON
15	MAY 461967847321
17	SPRING, LAMP
18	HOLDER, LAMP
19	MAY 241954900069
20	MAY W10287987
21	SWITCH
22	MAY W10358246
23	REFLECTOR
24	LENS, LAMP
25	CLIP, SPRING
26	TRANSFORMER, LIGHT (20V)
28	ASSEMBLY, SLIDING ARM
29	PLATE, COVER
30	SENSOR, HUMIDITY
31	ARM, SLIDING
32	SUPPORT
33	MAY 461968979601
37	MAY 461968969271
38	MAY W10468206
39	MAY W10130890
42	ROD, RELEASE
43	HOLDER, SWITCH
45	SPRING
46	LINER (NOT A SERVICEABLE PART)
47	SUPPORT, BOTTOM
