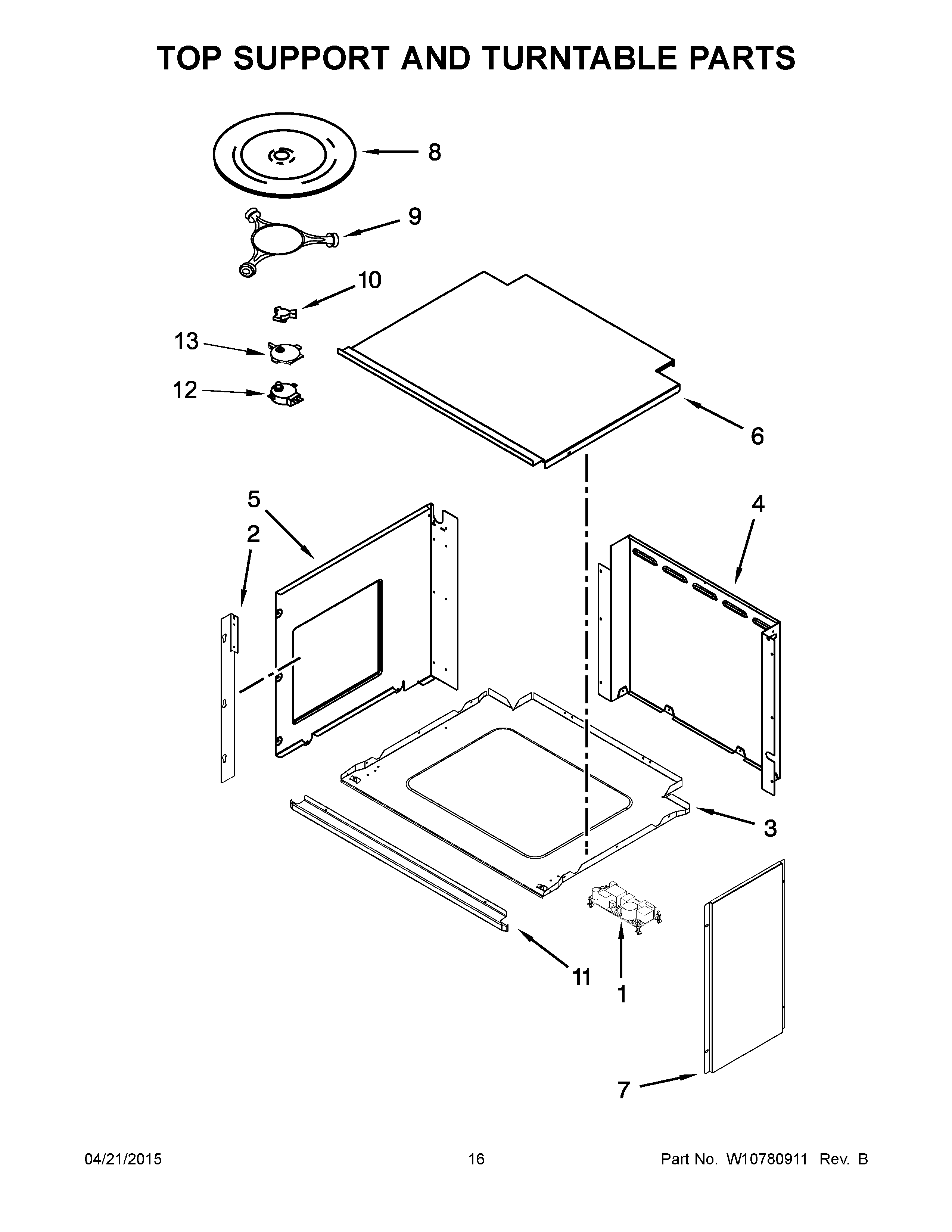

JMW2330WS02 09 – TOP SUPPORT AND TURNTABLE PARTS

JMW2330WS02 09 – TOP SUPPORT AND TURNTABLE PARTS

Written by

in

JMW2330WS02 09 – TOP SUPPORT AND TURNTABLE PARTS

Products

PositionProduct
1CONTROL, ELEC
2AMAY 461967013702
2MAY 461967013712
3MAY W10176063
4MAY W10186984
5MAY W10176065
5AMAY W10176064
6MAY W10175998
7MAY W10176066
8MAY 461967720541
9RING, TURNTABLE
10DRIVE, TURNTABLE
11VENT, TOP MICROWAVE
12MOTOR, TURNTABLE
13ADAPTER, TURNTABLE MOTOR
