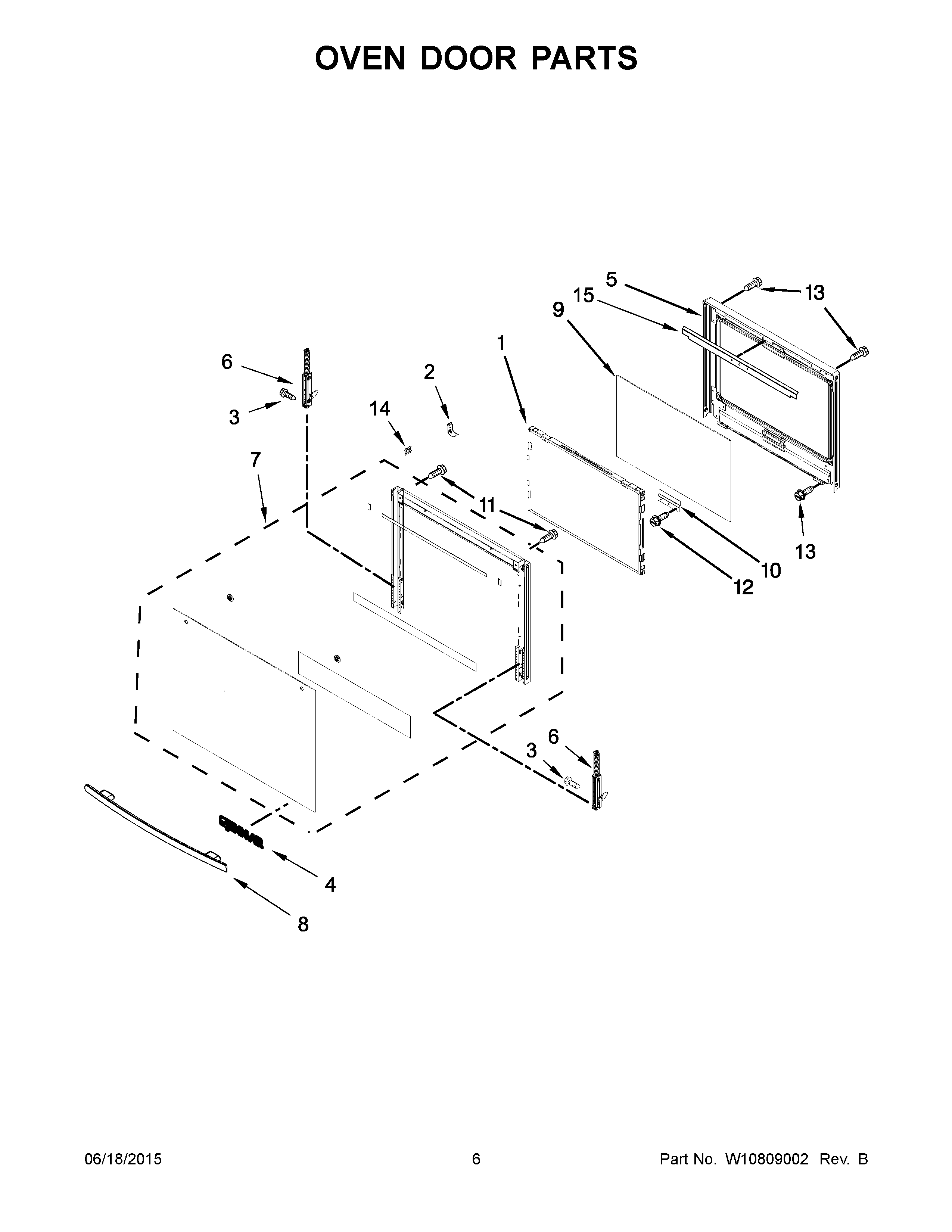

JMW2427DB00 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347597
2MAY W10284285
3SCREW
4ASSEMBLY, BADGE (BLACK)
4AASSEMBLY, BADGE (STAINLESS)
5ASSEMBLY, LINER WELDED
6MAY W10639070
7AASSEMBLY, DOOR (STAINLESS)
7ASSEMBLY, DOOR (BLACK)
8ASSEMBLY, HANDLE (BLACK)
8AASSEMBLY, HANDLE (STAINLESS)
9LINER, INNER GLASS
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13Screw (2) (Black)
14MAY W10653954
15SHIELD, DOOR LINER
