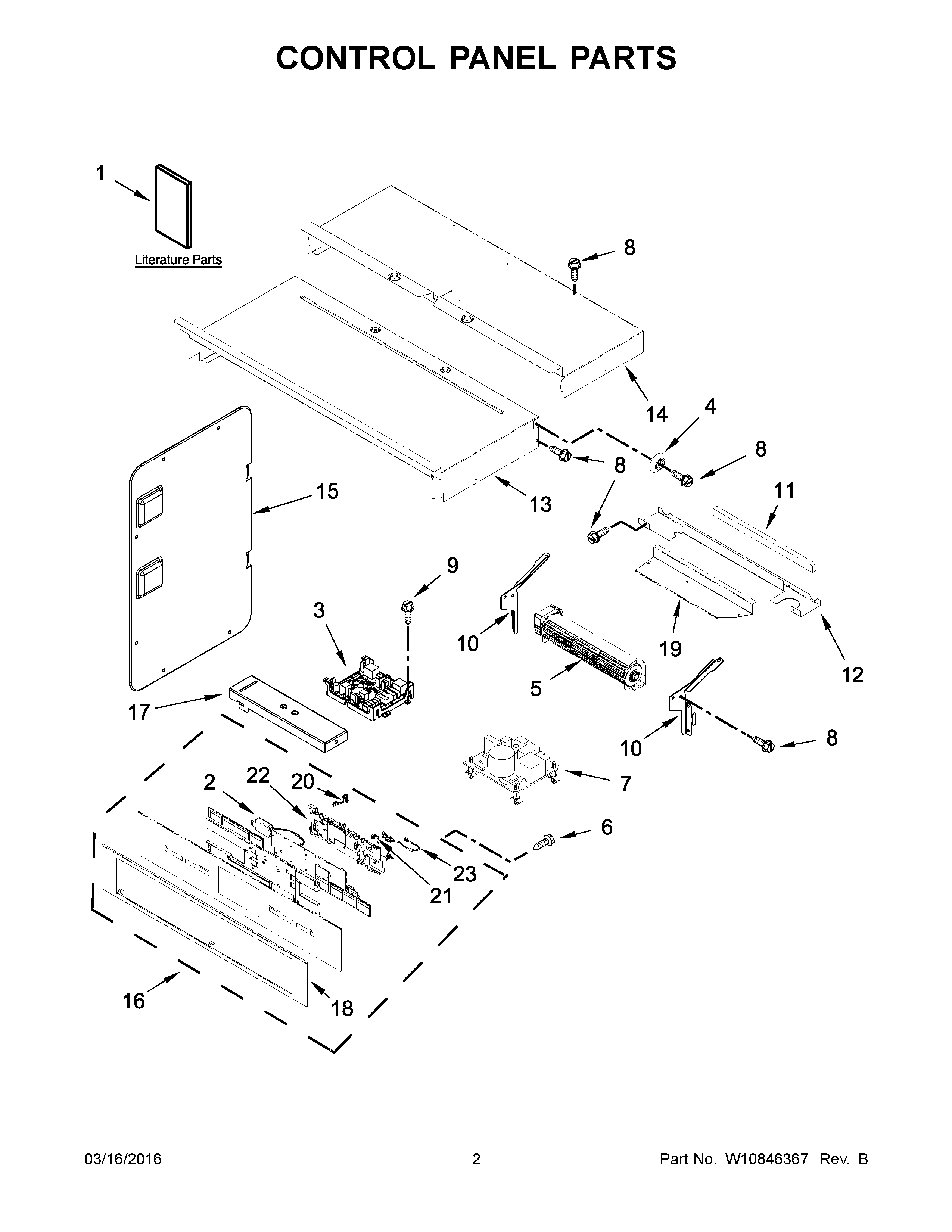

JMW2427DB01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	HARNESS, COMMUNICATION
NI	HARNESS, SIGNAL
NI	MAY W10406103
NI	MAY W10389372
NI	STRAP, GROUND
NI	MAY W10667018
NI	MAY W10775068
NI	CLAMP, CONDUIT
NI	MAY 4450800
NI	LINER (NOT A SERVICEABLE PART)
1	GUIDE, USE & CARE
1D	MAY W10767736
1C	INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1B	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE (MICROWAVE)
2	ASSEMBLY, SPEAKER
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	MAY 7101P403-60
7	BOARD, POWER SUPPLY
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP BACK 27"
14	CHASSIS, COVER TOP FRONT 27"
15	CHASSIS, COMBO SIDE
16A	MAY W10524512
16	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
17	MAY W10323725
18	SKIN, CONTROL PANEL (STAINLESS)
19	COVER, COMBO BLOWER
20	HARNESS, KEYPAD (LEFT TO CENTER)
21	HARNESS, KEYPAD (RIGHT TO CENTER)
22	HOUSING
23	JUMPER HARNESS, POWER SUPPLY
