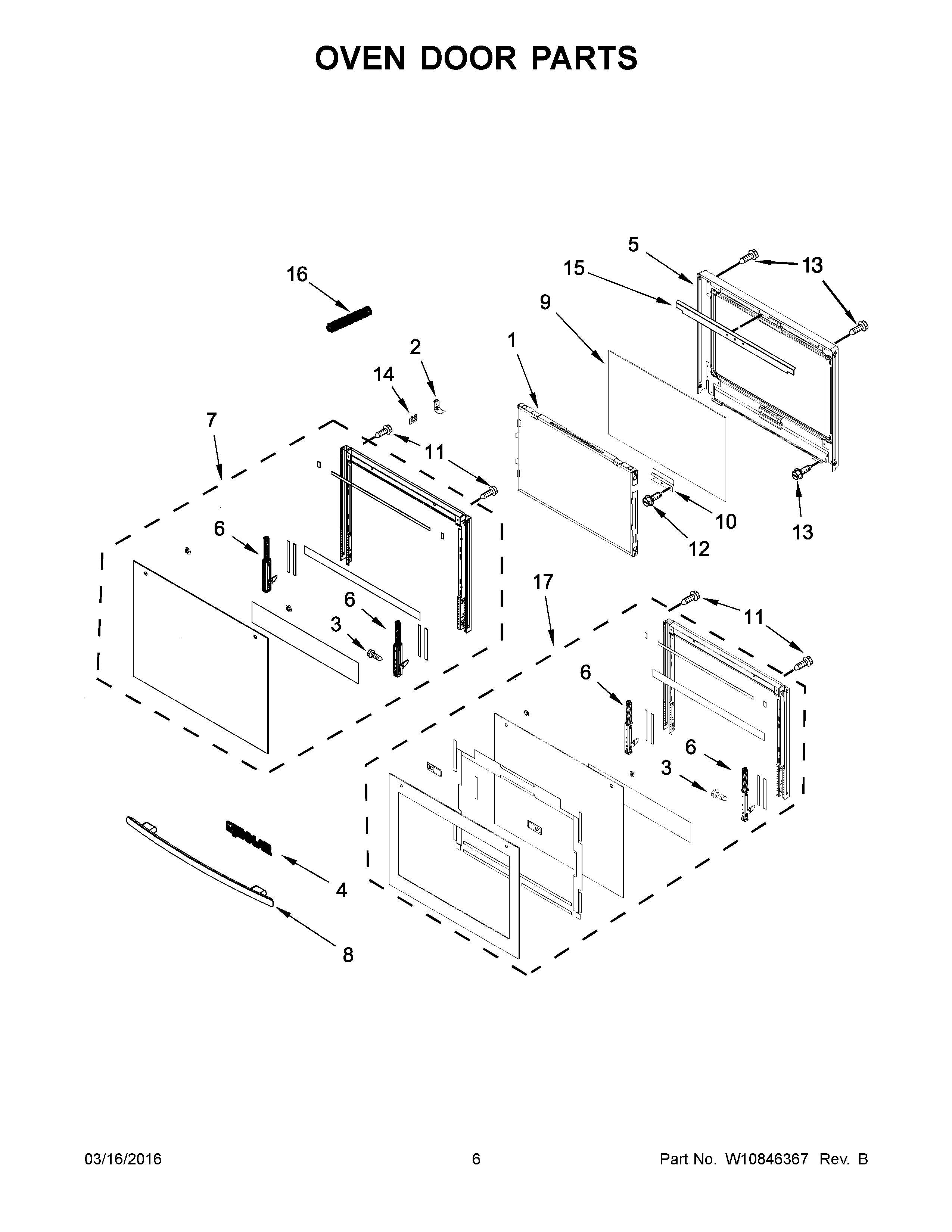

JMW2427DB01 04 – OVEN DOOR PARTSadmin2025-04-26T09:43:31+00:00JMW2427DB01 04 – OVEN DOOR PARTS ProductsPositionProduct1MAY W103475972MAY W102842853SCREW4ASSEMBLY, BADGE (BLACK)4AASSEMBLY, BADGE (STAINLESS)5ASSEMBLY, LINER WELDED6AMAY W106390716MAY W106390707ASSEMBLY, DOOR (BLACK)8ASSEMBLY, HANDLE (BLACK)8AASSEMBLY, HANDLE (STAINLESS)9MAY W1067852510MAY W1028429711SCREW12MAY 7101P426- 6013Screw (2) (Black)14MAY W1065395415SHIELD, DOOR LINER16SPRING, CAM17ASSEMBLY, DOOR (STAINLESS)
