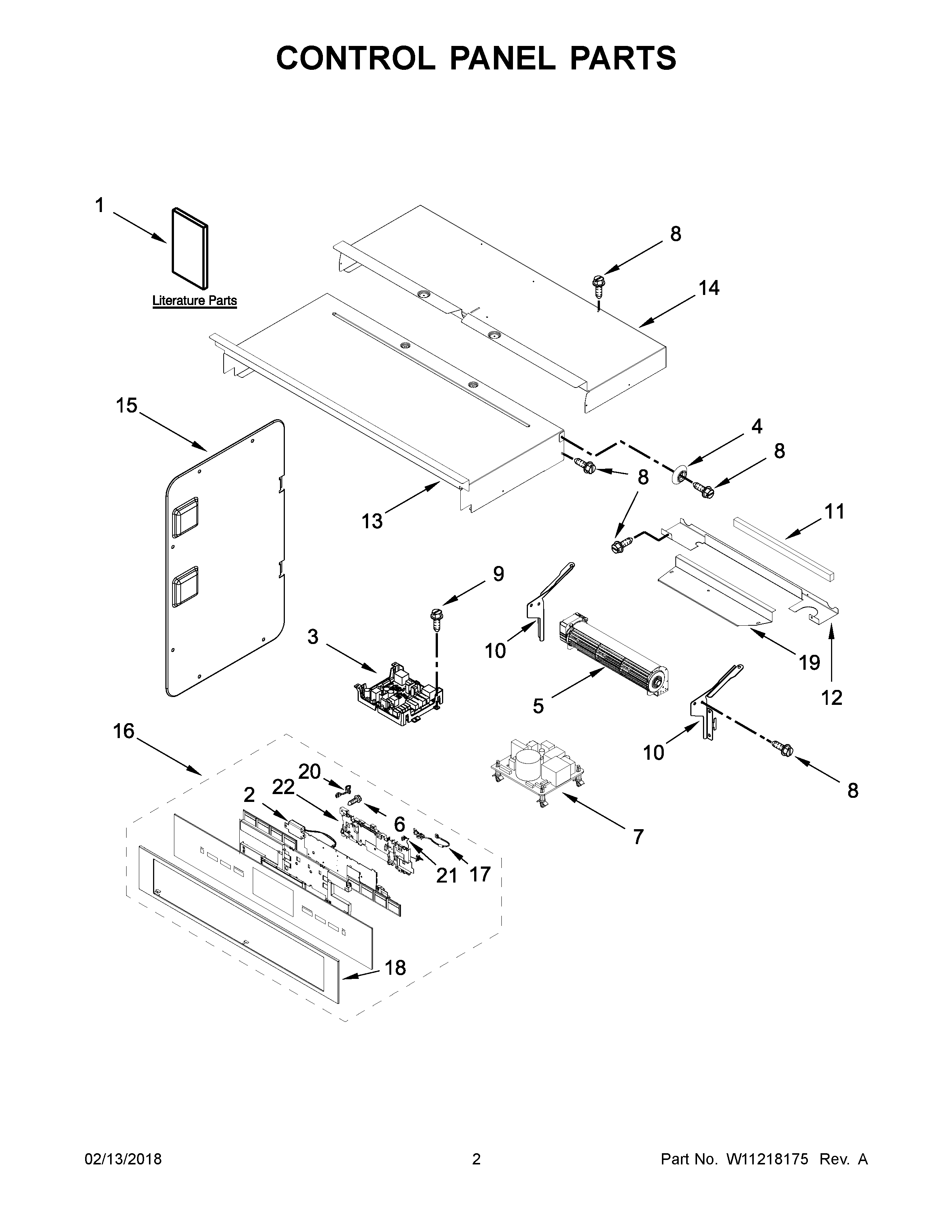

JMW2427DB02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	STRAP, GROUND
NI	HARNESS, CABLE TREE ASSEMBLY
NI	HARNESS, SIGNAL
NI	HARNESS, COMMUNICATION
NI	HARNESS, MAIN
NI	CLAMP, CONDUIT
NI	MAY W10775068
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, INVERTER
NI	MAY 4450800
NI	HARNESS, FAN & TURNTABLE
1A	GUIDE, USE & CARE (MICROWAVE)
1B	INSTRUCTIONS, INSTALLATION
1C	INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1	GUIDE, USE & CARE
1D	SHEET, TECH (ENGLISH/FRENCH)
2	ASSEMBLY, SPEAKER
3	CONTROL (WITH POWER SUPPLY)
4	SPACER, LATERAL
5	BLOWER
6	MAY W10489172
7	BOARD, POWER SUPPLY
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	CHASSIS, BACK DIVIDER
13	CHASSIS, COVER TOP BACK 27" WIFI
14	CHASSIS, COVER TOP FRONT 27"
15	CHASSIS, COMBO SIDE
16	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
16A	MAY W10875280
17	JUMPER HARNESS, POWER SUPPLY
18	SKIN, CONTROL PANEL (STAINLESS)
19	COVER, COMBO BLOWER
20	HARNESS, KEYPAD (LEFT TO CENTER)
21	HARNESS, KEYPAD (RIGHT TO CENTER)
22	HOUSING
