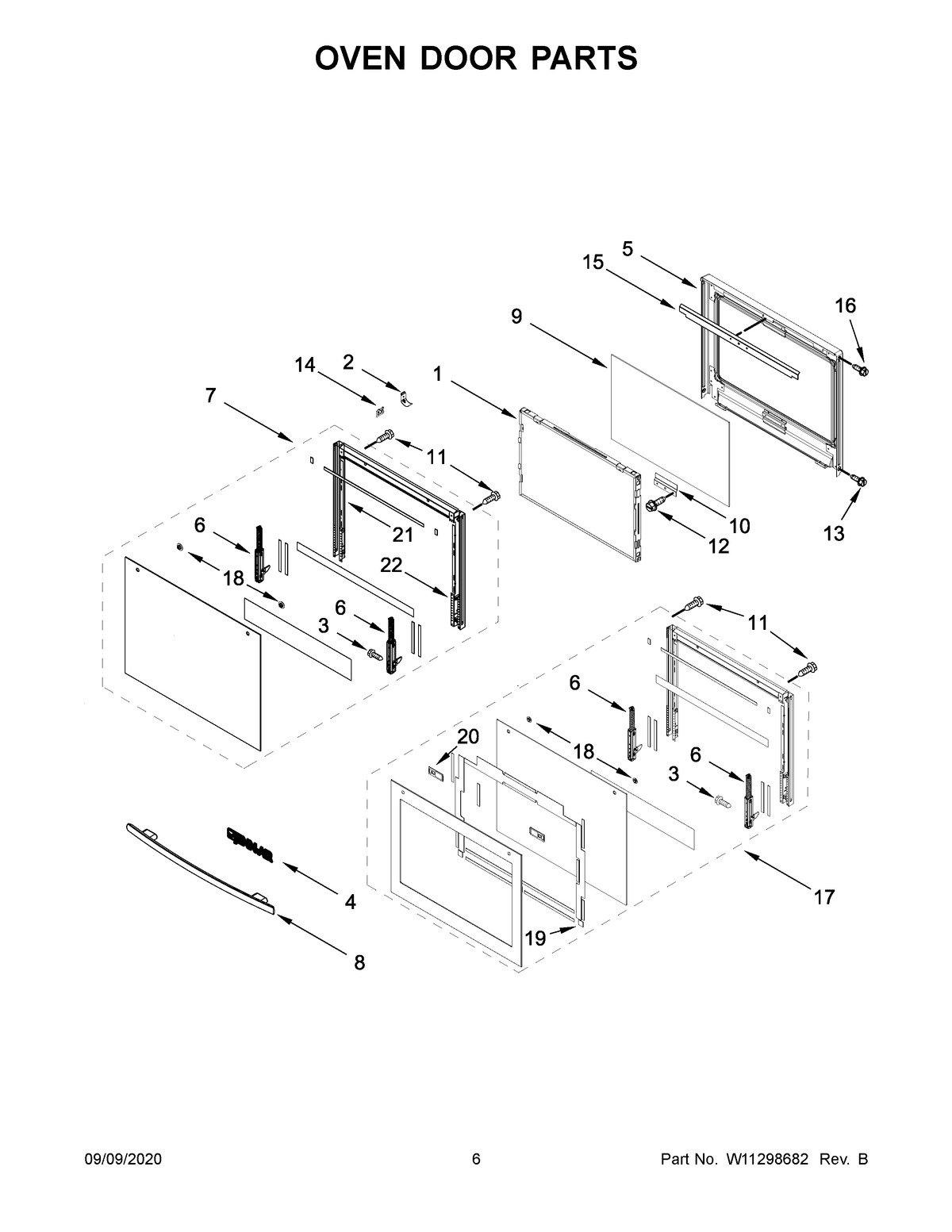

JMW2427DB03 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347597
2MAY W10284285
3SCREW
4ASSEMBLY, BADGE (BLACK)
4AASSEMBLY, BADGE (STAINLESS)
5ASSEMBLY, LINER WELDED
6HINGE, DOOR
6AMAY W10639071
7MAY W11318301
8ASSEMBLY, HANDLE (BLACK)
8AASSEMBLY, HANDLE (STAINLESS)
9MAY W10678525
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13MAY 7101P635-60
14MAY W10653954
15SHIELD, DOOR LINER
16SCREW WITH WASHER
17MAY W11334113
18WASHER, DOOR
19SPACER, VENT
20SPACER, HANDLE
21RAIL, DOOR SIDE (LEFT)
22RAIL, DOOR SIDE (RIGHT)
