JMW2427DB03 05 – INTERNAL OVEN PARTS

JMW2427DB03 05 – INTERNAL OVEN PARTS

Written by

in

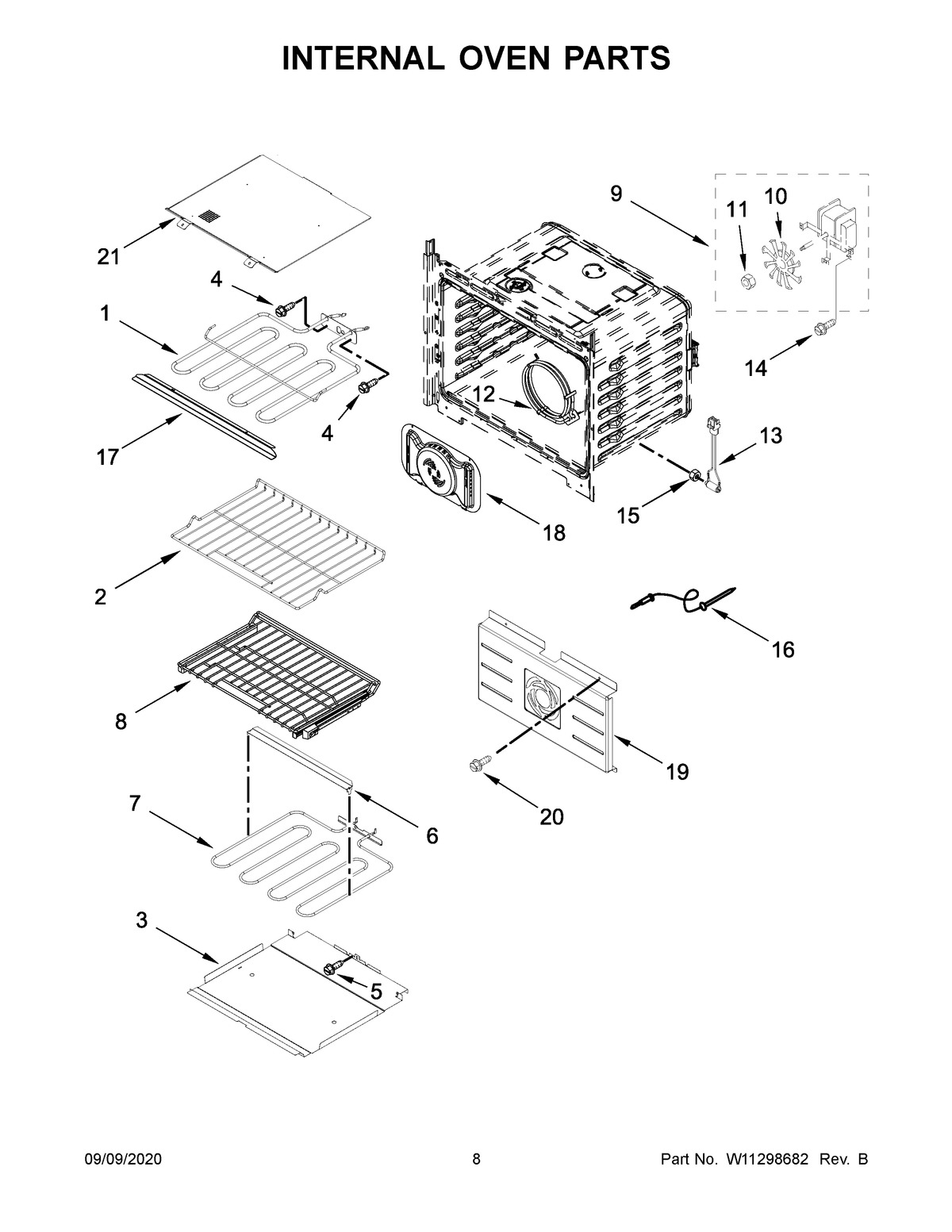

JMW2427DB03 05 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELEMENT, BROIL
2RACK, OVEN
3TRAY, HIDDEN BAKE
4MAY 7101P376-60
5MAY 7101P426- 60
6CROSSBAR, HIDDEN BAKE TRAY
7ELEMENT, BAKE
8RACK, SLIDING
9MAY W10722667
10MAY W10631503
11MAY W10631504
12ELEMENT, CONVECTION
13JACK, MEAT PROBE
14SCREW
15NUT, LOCKING
16PROBE-MEAT
17SHIELD, BROIL FRONT
18BAFFLE, BOW TIE
19COVER, BAFFLE
20SCREW
21SHIELD, BROIL ELEMENT
