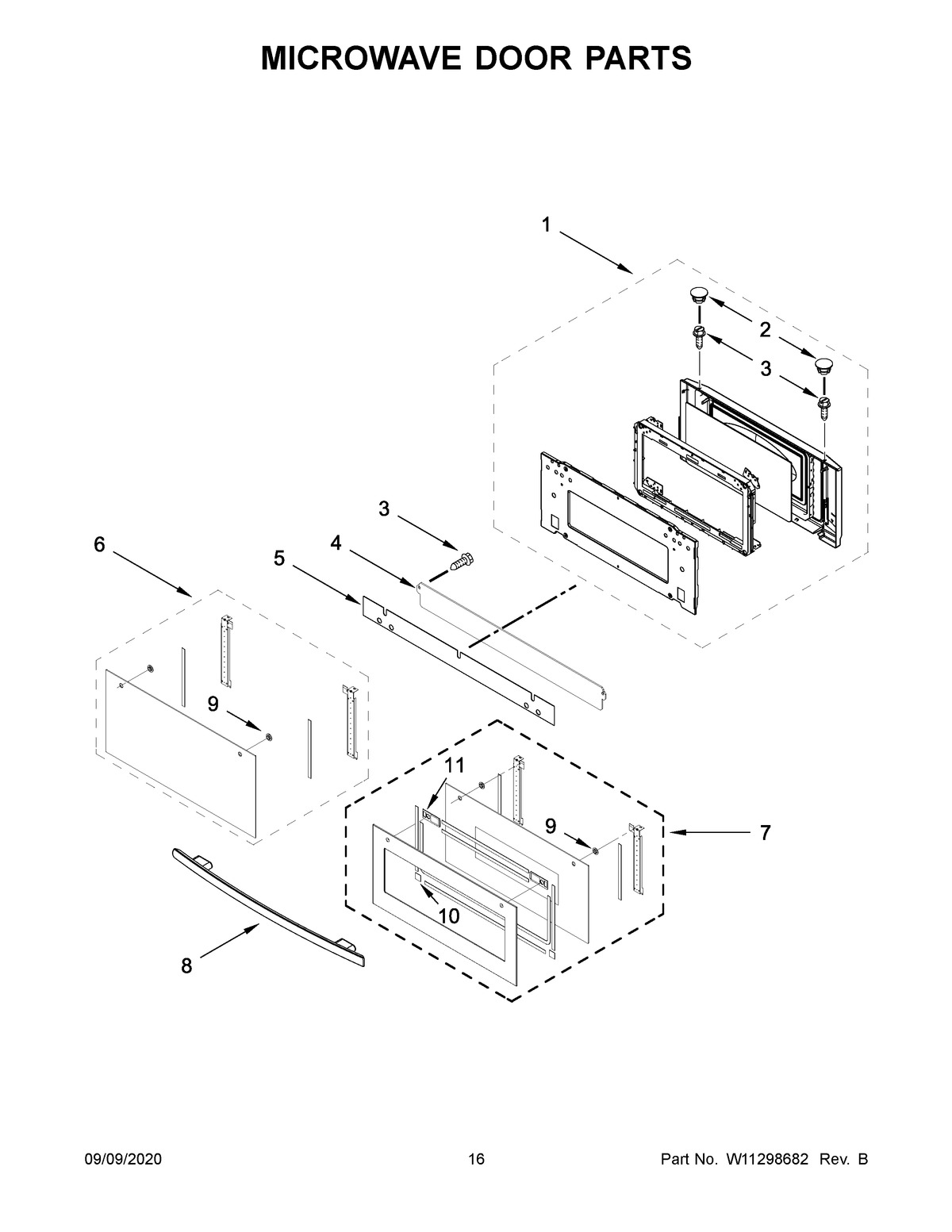

JMW2427DB03 09 – MICROWAVE DOOR PARTS

Written by

Products

Position	Product
1	ASSEMBLY, INNER DOOR
2	CAP, SCREW
3	SCREW (8BX3/8-NI)
4	BRACKET, DOOR (BLACK MODEL ONLY)
5	FOAM, DOOR HANDLE
6	ASSEMBLY, OUTER DOOR (BLACK)
7	MAY W10497862
8A	ASSEMBLY, HANDLE (STAINLESS)
8	ASSEMBLY, HANDLE (BLACK)
9	WASHER, DOOR
10	SPACER, VENT
11	SPACER, HANDLE
