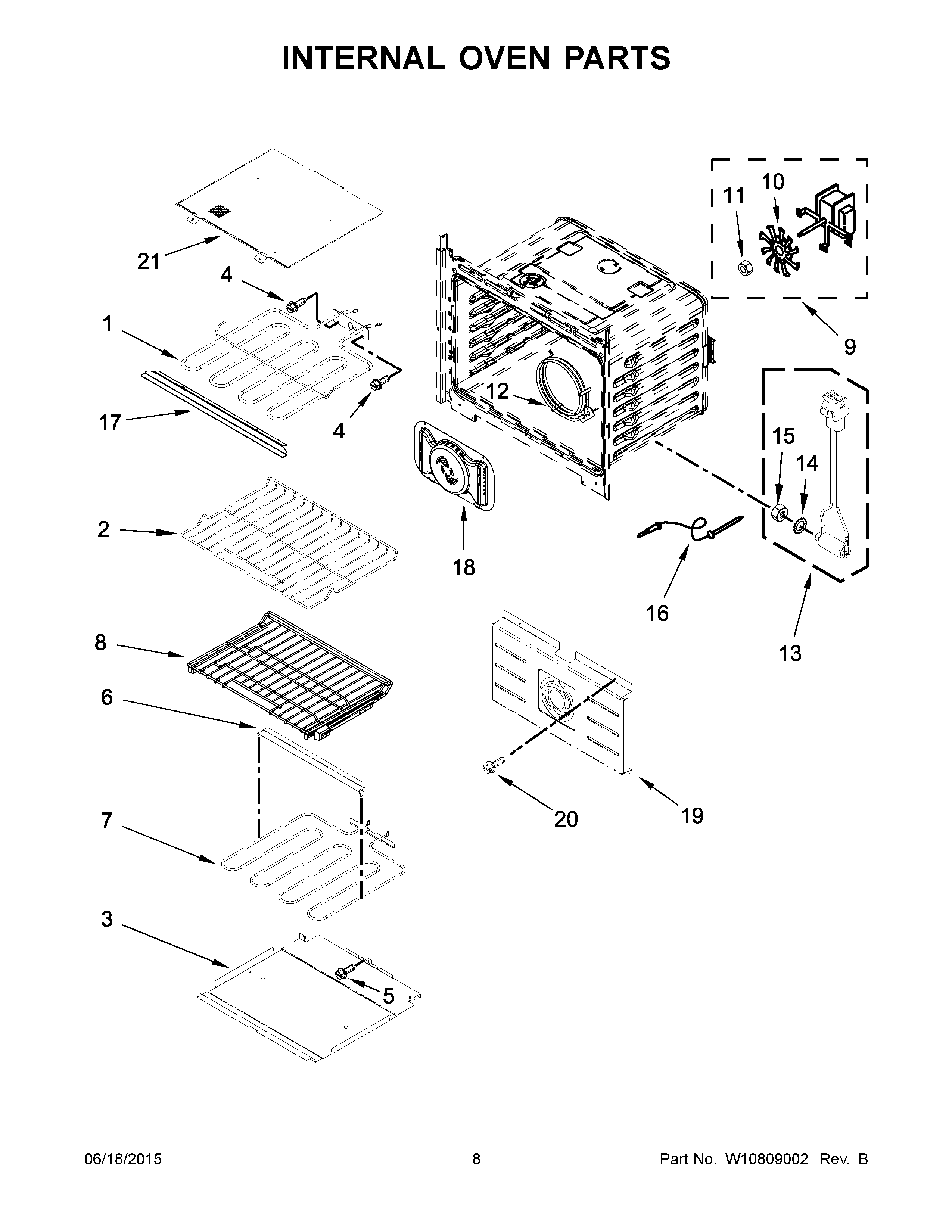

JMW2427DS00 05 – INTERNAL OVEN PARTS

JMW2427DS00 05 – INTERNAL OVEN PARTS

Written by

in

JMW2427DS00 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	RACK, OVEN
3	TRAY, HIDDEN BAKE
4	MAY 7101P376-60
5	MAY 7101P426- 60
6	CROSSBAR, HIDDEN BAKE TRAY
7	MAY W10546517
8	RACK, SLIDING
9	MAY W10722667
10	MAY W10631503
11	MAY W10631504
12	ELEMENT, CONVECTION
13	MAY W10524044
14	WASHER
15	LOCKNUT
16	PROBE-MEAT
17	SHIELD, BROIL FRONT
18	BAFFLE, BOW TIE
19	COVER, BAFFLE
20	SCREW
21	SHIELD, BROIL ELEMENT
