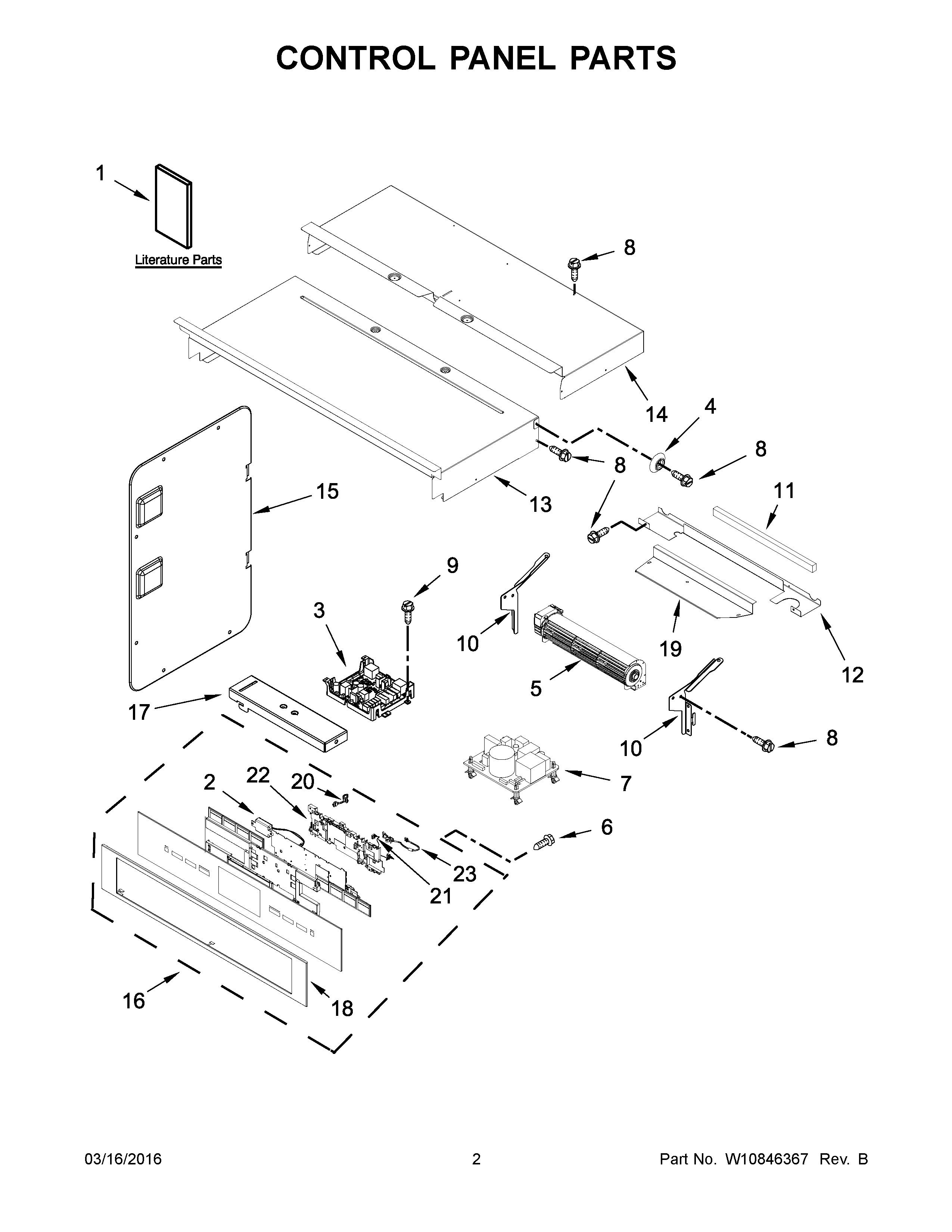

JMW2427DS01 02 – CONTROL PANEL PARTS

JMW2427DS01 02 – CONTROL PANEL PARTS

Written by

in

JMW2427DS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NIHARNESS, COMMUNICATION
NIHARNESS, SIGNAL
NIMAY W10406103
NIMAY W10389372
NISTRAP, GROUND
NIMAY W10667018
NIMAY W10775068
NICLAMP, CONDUIT
NIMAY 4450800
NILINER (NOT A SERVICEABLE PART)
1GUIDE, USE & CARE
1DMAY W10767736
1CINSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1BINSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE (MICROWAVE)
2ASSEMBLY, SPEAKER
3CONTROL (WITH POWER SUPPLY)
4SPACER, LATERAL
5BLOWER
6MAY 7101P403-60
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP BACK 27"
14CHASSIS, COVER TOP FRONT 27"
15CHASSIS, COMBO SIDE
16AMAY W10524512
16ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (BLACK)
17MAY W10323725
18SKIN, CONTROL PANEL (STAINLESS)
19COVER, COMBO BLOWER
20HARNESS, KEYPAD (LEFT TO CENTER)
21HARNESS, KEYPAD (RIGHT TO CENTER)
22HOUSING
23JUMPER HARNESS, POWER SUPPLY
