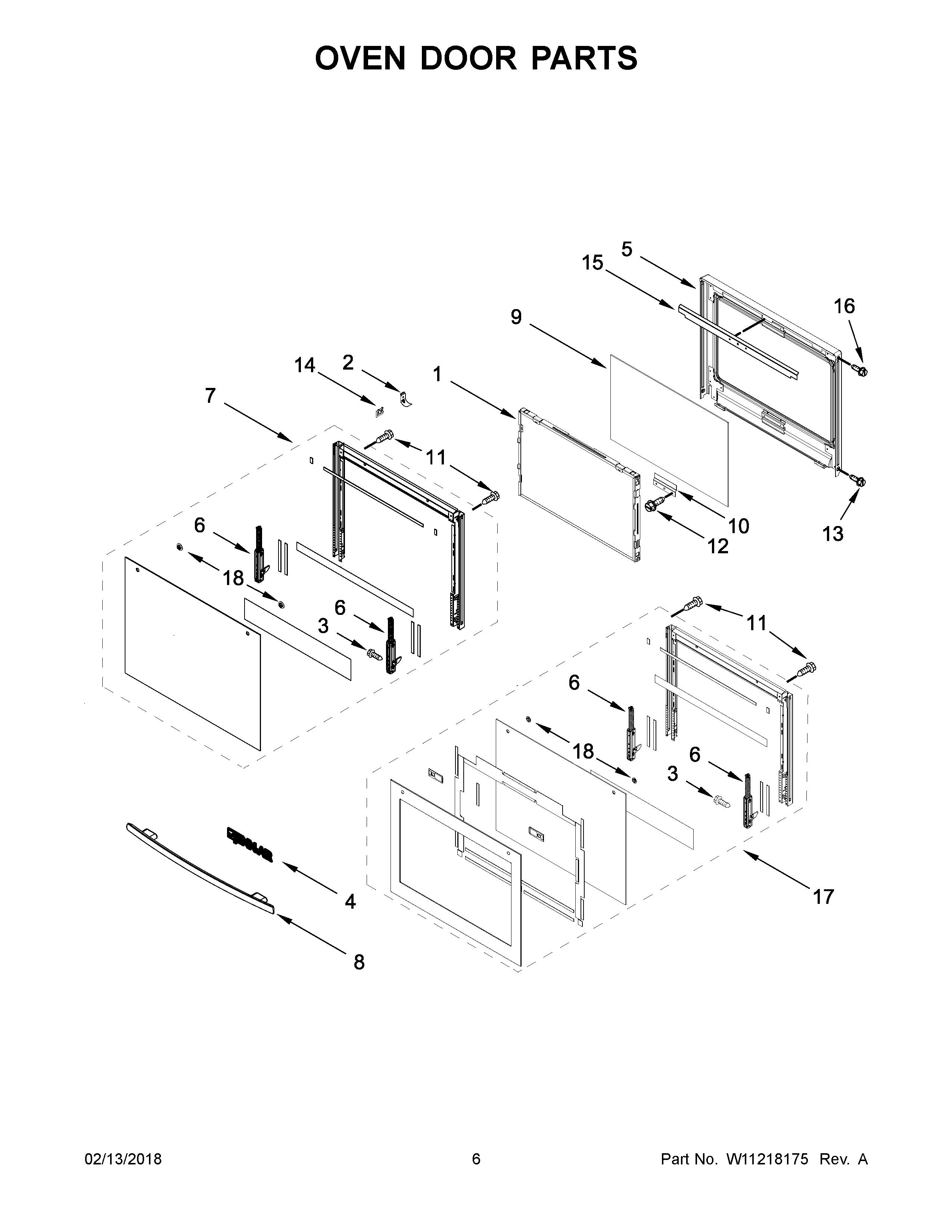

JMW2427DS02 04 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W10347597
2MAY W10284285
3SCREW
4AASSEMBLY, BADGE (STAINLESS)
4ASSEMBLY, BADGE (BLACK)
5ASSEMBLY, LINER WELDED
6MAY W10639070
6AMAY W10639071
7ASSEMBLY, DOOR (BLACK)
8ASSEMBLY, HANDLE (BLACK)
8AASSEMBLY, HANDLE (STAINLESS)
9MAY W10678525
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13MAY 7101P635-60
14MAY W10653954
15SHIELD, DOOR LINER
16SCREW WITH WASHER
17ASSEMBLY, DOOR (STAINLESS)
18WASHER, DOOR
