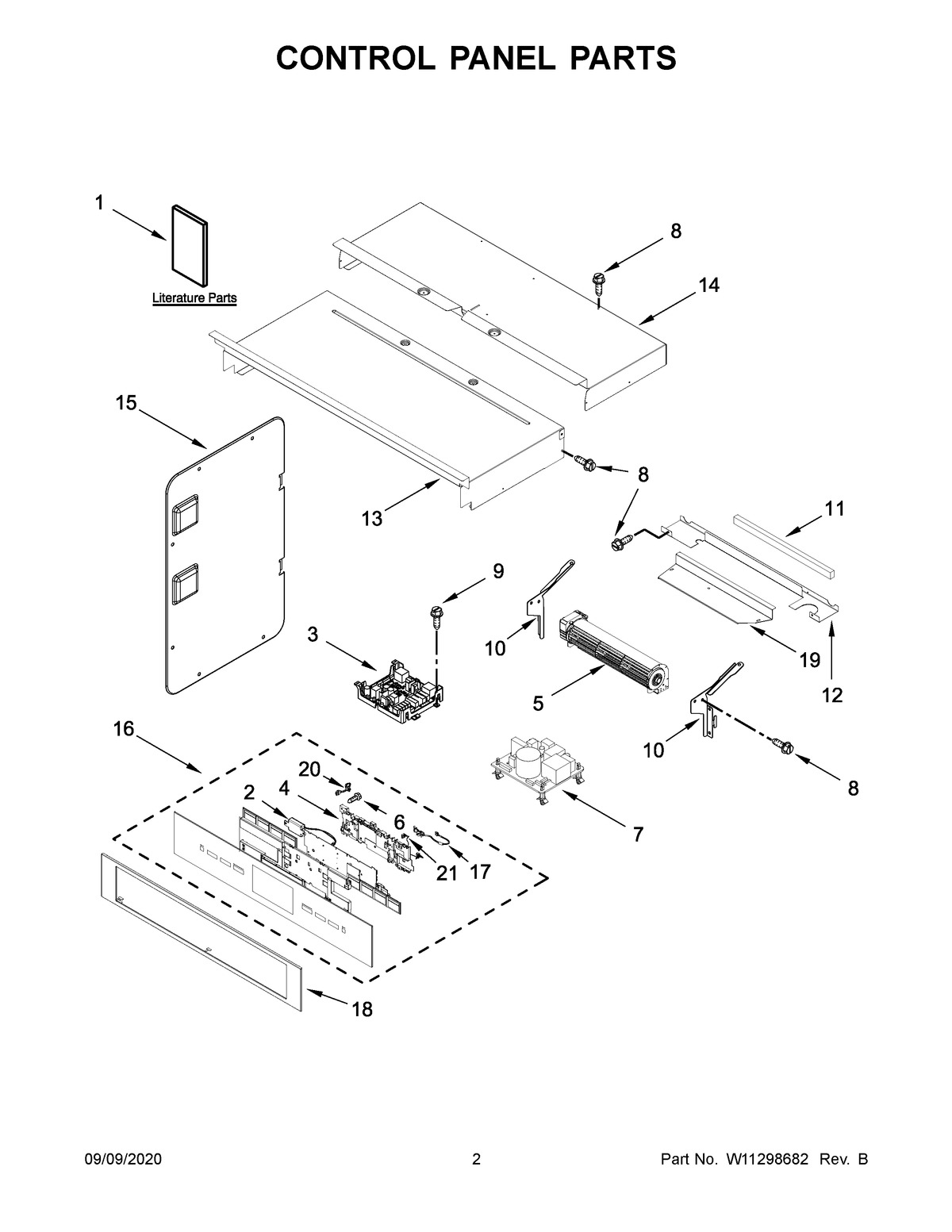

JMW2427DS03 02 – CONTROL PANEL PARTS

JMW2427DS03 02 – CONTROL PANEL PARTS

Written by

in

JMW2427DS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, COMMUNICATION
NISTRAP, GROUND
NIHARNESS, FAN & TURNTABLE
NIHARNESS, DOOR LATCH
NICLAMP, CONDUIT
NIJUMPER HARNESS, COMMUNICATION
NIHARNESS, INVERTER
NIHARNESS, CABLE TREE ASSEMBLY
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIMAY 4450800
NIHARNESS, SIGNAL
1GUIDE, USE & CARE
1AGUIDE, USE & CARE (MICROWAVE)
1DSHEET, TECH (ENGLISH/FRENCH)
1BINSTRUCTIONS, INSTALLATION
1CSHEET, TECH (ENGLISH)
2ASSEMBLY, SPEAKER
3CONTROL (WITH POWER SUPPLY)
4HOUSING
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426-
9MAY 7101P434-
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP BACK 27" WIFI
14CHASSIS, COVER TOP FRONT 27"
15CHASSIS, COMBO SIDE
16CONTROL PANEL ASSEMBLY (BLACK)
16ACONTROL PANEL ASSEMBLY (STAINLESS)
17JUMPER HARNESS, POWER SUPPLY
18SKIN, CONTROL PANEL (STAINLESS)
19COVER, COMBO BLOWER
20HARNESS, KEYPAD (LEFT TO CENTER)
21HARNESS, KEYPAD (RIGHT TO CENTER)
