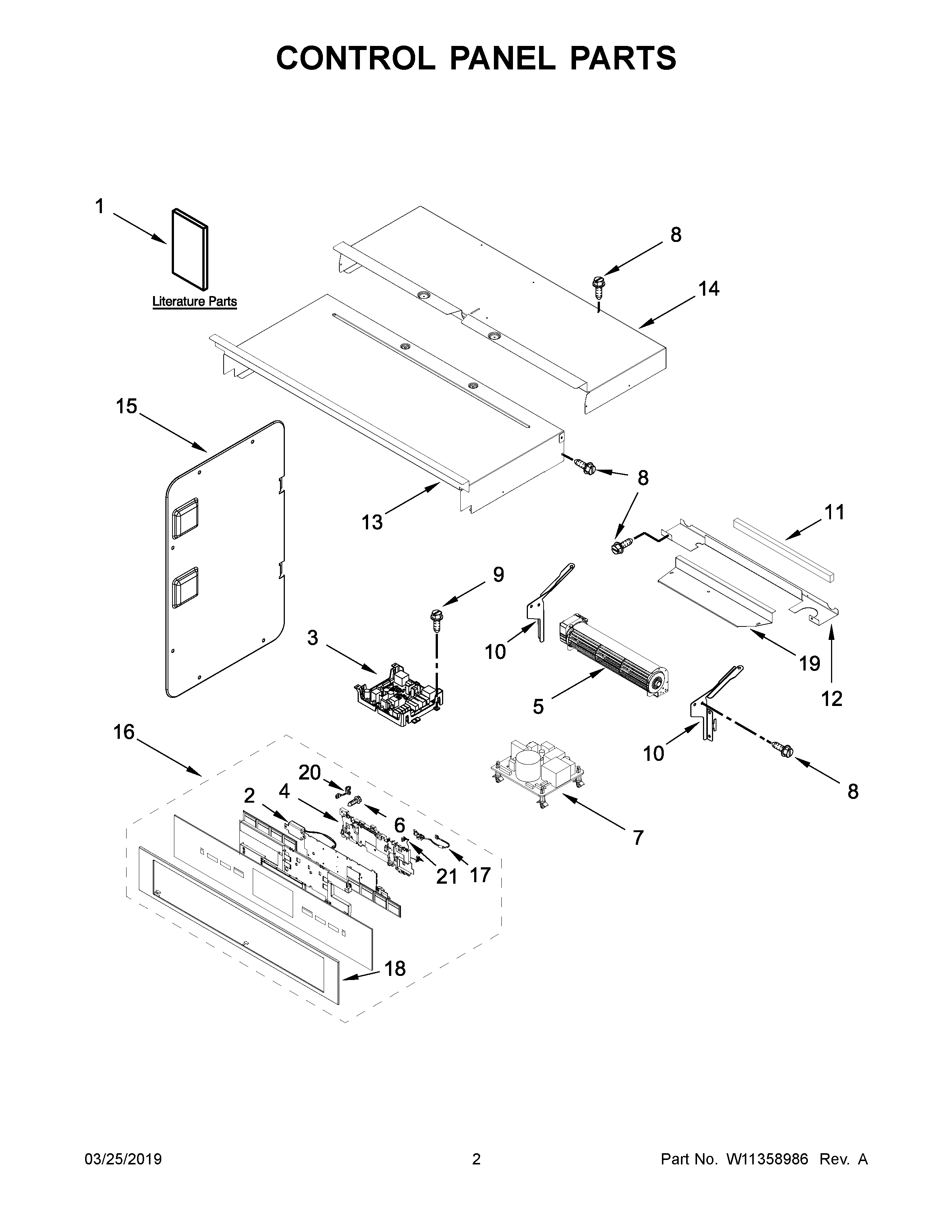

JMW2427DS04 02 – CONTROL PANEL PARTS

JMW2427DS04 02 – CONTROL PANEL PARTS

Written by

in

JMW2427DS04 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, COMMUNICATION
NIMAY W11198503
NIHARNESS, INVERTER
NIHARNESS, FAN & TURNTABLE
NICLAMP, CONDUIT
NIHARNESS, SIGNAL
NIHARNESS, DOOR LATCH
NILINER (NOT A SERVICEABLE PART)
NISTRAP, GROUND
NIMAY 4450800
NIHARNESS, MAIN
NIHARNESS, CABLE TREE ASSEMBLY
1AGUIDE, USE & CARE (MICROWAVE)
1BINSTRUCTIONS, INSTALLATION
1DSHEET, TECH (ENGLISH/FRENCH)
1CSHEET, TECH (ENGLISH)
1GUIDE, USE & CARE
2ASSEMBLY, SPEAKER
3CONTROL (WITH POWER SUPPLY)
4HOUSING
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP BACK 27" WIFI
14CHASSIS, COVER TOP FRONT 27"
15CHASSIS, COMBO SIDE
16MAY W11102213
17JUMPER HARNESS, POWER SUPPLY
18SKIN, CONTROL PANEL (STAINLESS)
19COVER, COMBO BLOWER
20HARNESS, KEYPAD (LEFT TO CENTER)
21HARNESS, KEYPAD (RIGHT TO CENTER)
