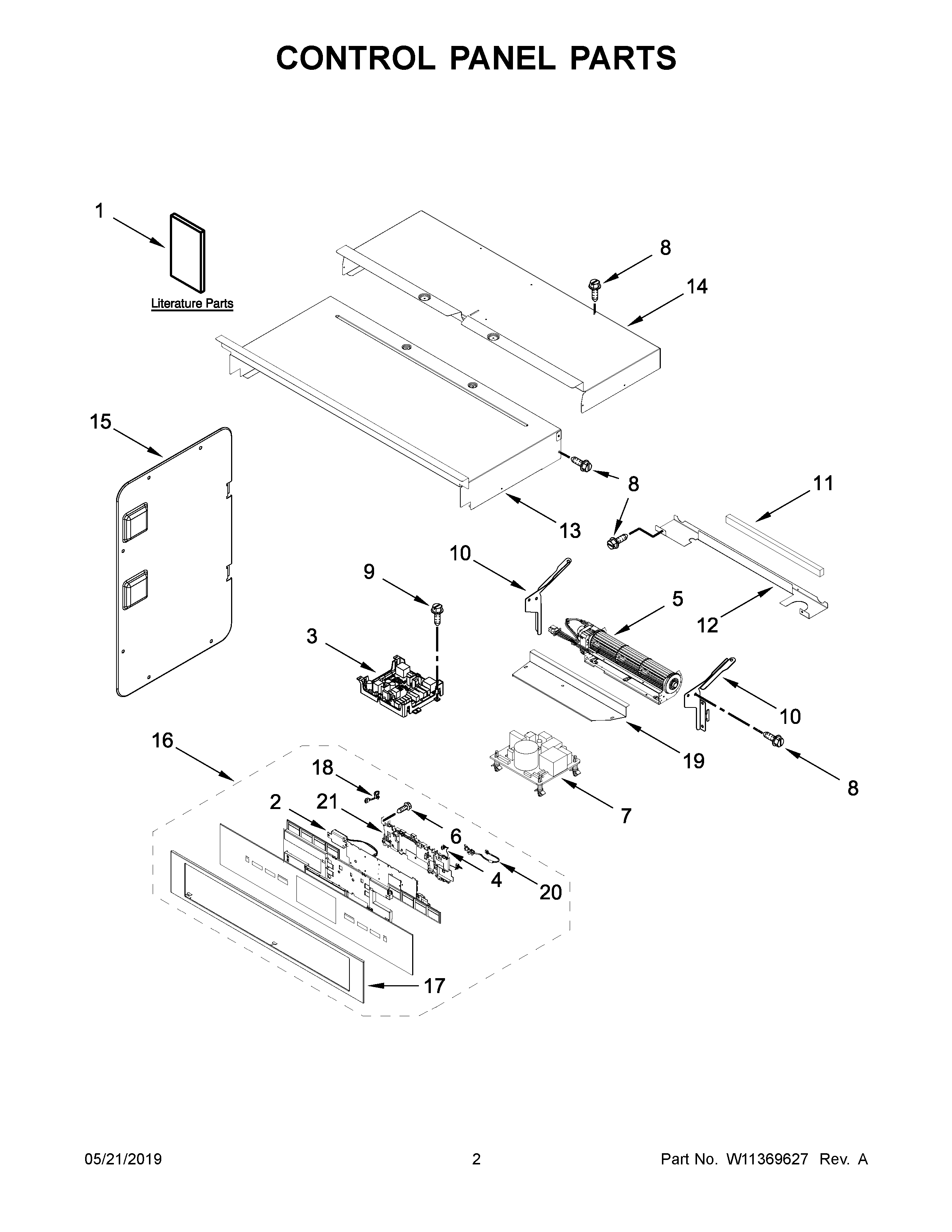

JMW2427IL02 02 – CONTROL PANEL PARTS

JMW2427IL02 02 – CONTROL PANEL PARTS

Written by

in

JMW2427IL02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIMAY W11218145
NICLAMP, CONDUIT
NISTRAP, GROUND
NIHARNESS, FAN AND TURNTABLE
NIHARNESS, INVERTER
NIHARNESS, INTERLOCK
NIHARNESS, CABLE TREE ASSEMBLY
NIJUMPER HARNESS, COMMUNICATION
NIHARNESS, DOOR LATCH
NIMAY W11216677
NIMAY 4450800
NIMAY W11216660
NILINER (NOT A SERVICEABLE PART)
1EMAY W11235300
1DMAY W11284425
1GUIDE, USE & CARE (OVEN)
1BMAY W11235622
1AMAY W11235344
1CINSTRUCTIONS, UNDERCOUNTER INSTALL
2ASSEMBLY, SPEAKER
3MAY W11281214
4HARNESS, KEYPAD (RIGHT TO CENTER)
5BLOWER
6MAY W10489172
7BOARD, POWER SUPPLY
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12CHASSIS, BACK DIVIDER
13CHASSIS, COVER TOP FRONT 27"
14CHASSIS, COVER TOP BACK 27" WIFI
15CHASSIS, COMBO SIDE
16MAY W11196777
17SKIN, CONTROL PANEL (STAINLESS)
18HARNESS, KEYPAD (LEFT TO CENTER)
19COVER, COMBO BLOWER
20JUMPER HARNESS, POWER SUPPLY
21HOUSING
