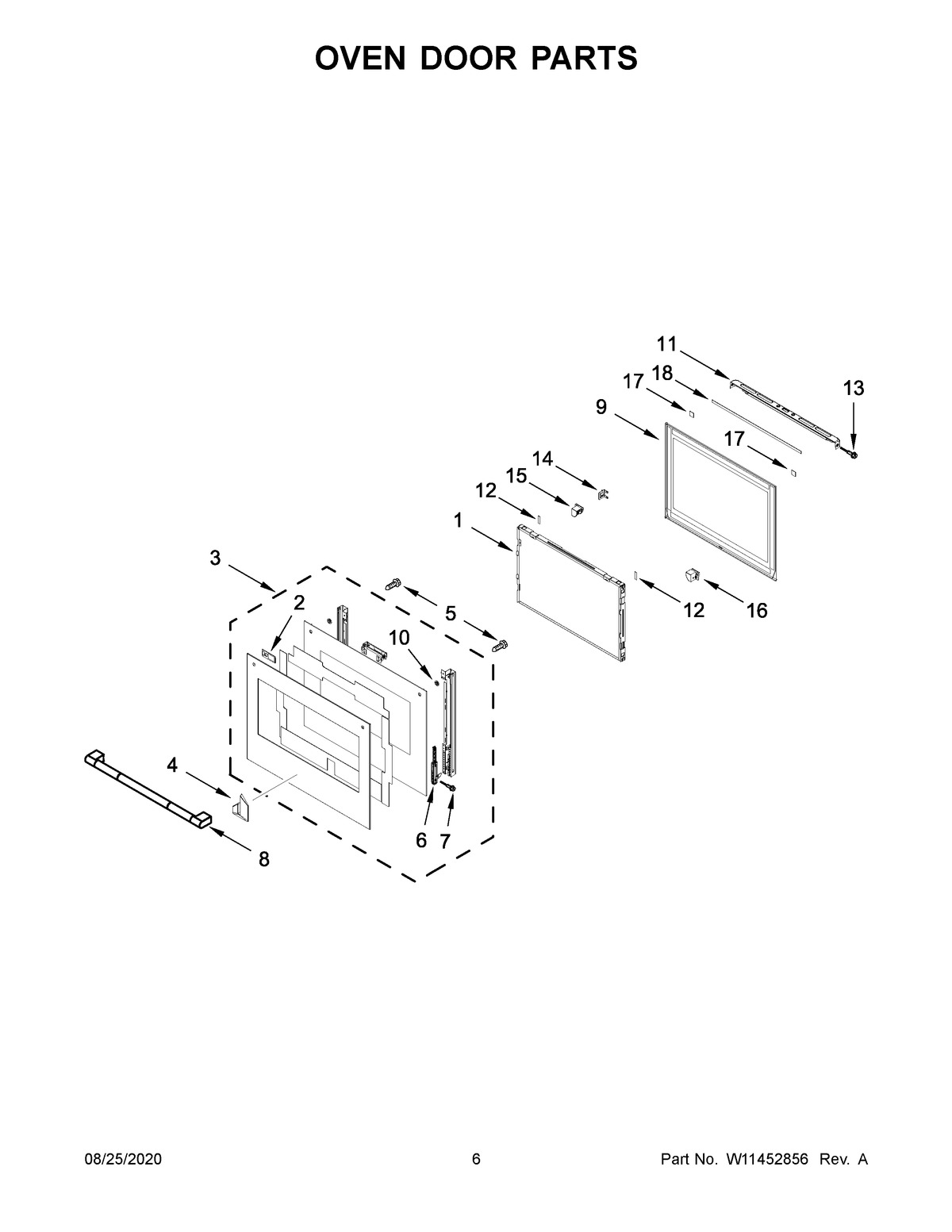

JMW2427IL03 04 – OVEN DOOR PARTS

Products

Position	Product
1	ASSEMBLY, WINDOW PACK
2	SPACER, HANDLE
3	ASSEMBLY, DOOR (STAINLESS)
4	NAMEPLATE (STAINLESS)
5	SCREW
6	HINGE, DOOR
7	SCREW
8	MAY W11251201
9	ASSEMBLY, GLASS CAVITY
10	WASHER, DOOR
11	VENT, TOP METAL
12	SPACER
13	SCREW WITH WASHER
14	CLIP, SPRING
15	BRACKET, DOOR (LEFT)
16	BRACKET, DOOR (RIGHT)
17	SPACER, VENT
18	PAD, VENT
