JMW2427IL03 09 – MICROWAVE DOOR PARTS

JMW2427IL03 09 – MICROWAVE DOOR PARTS

Written by

in

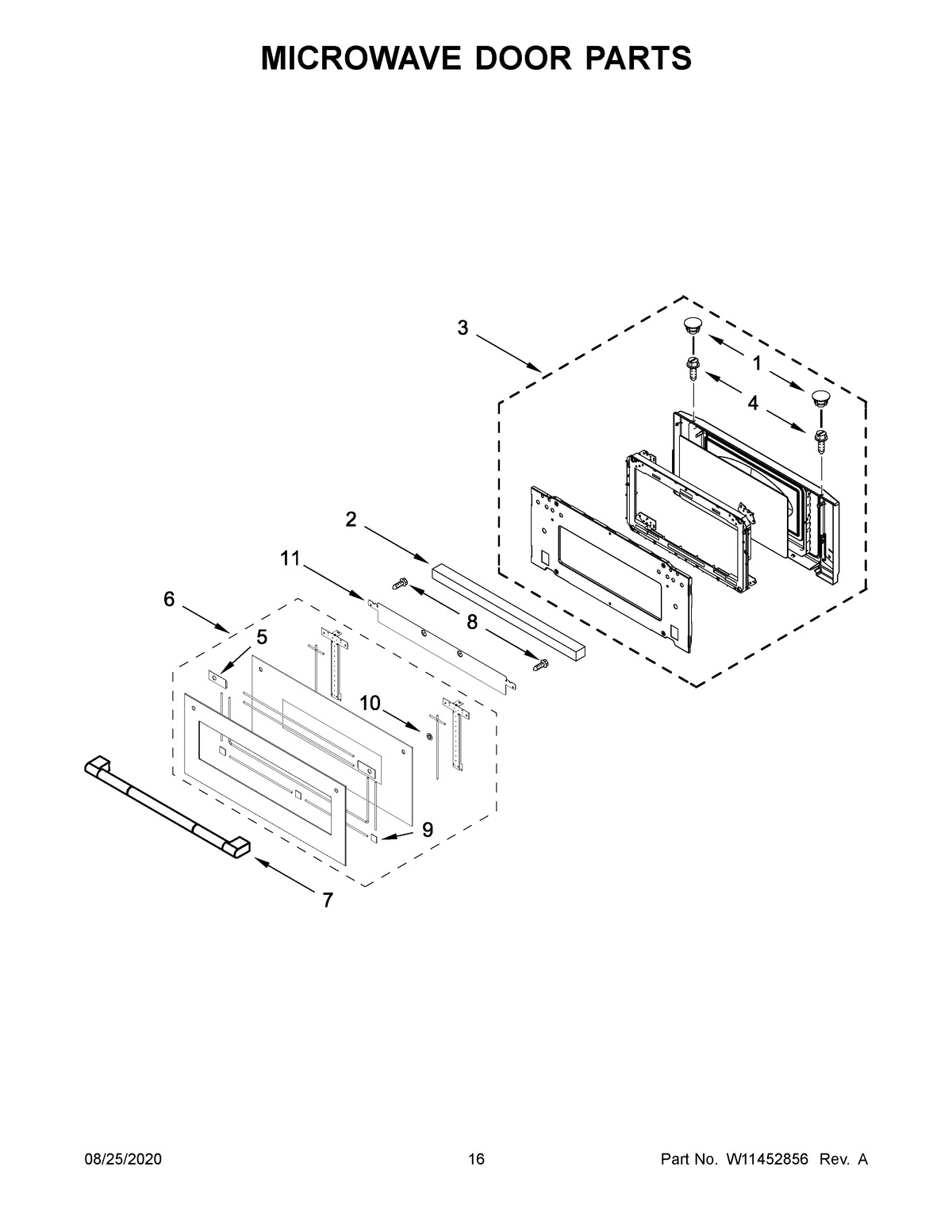

JMW2427IL03 09 – MICROWAVE DOOR PARTS

Products

PositionProduct
1CAP, SCREW
2FOAM, DOOR HANDLE
3ASSEMBLY, INNER DOOR
4SCREW (8BX3/8-NI)
5SPACER, HANDLE
6MAY W11200399
7MAY W11251201
8SCREW
9SPACER, VENT
10WASHER, DOOR
11MAY W11316564
