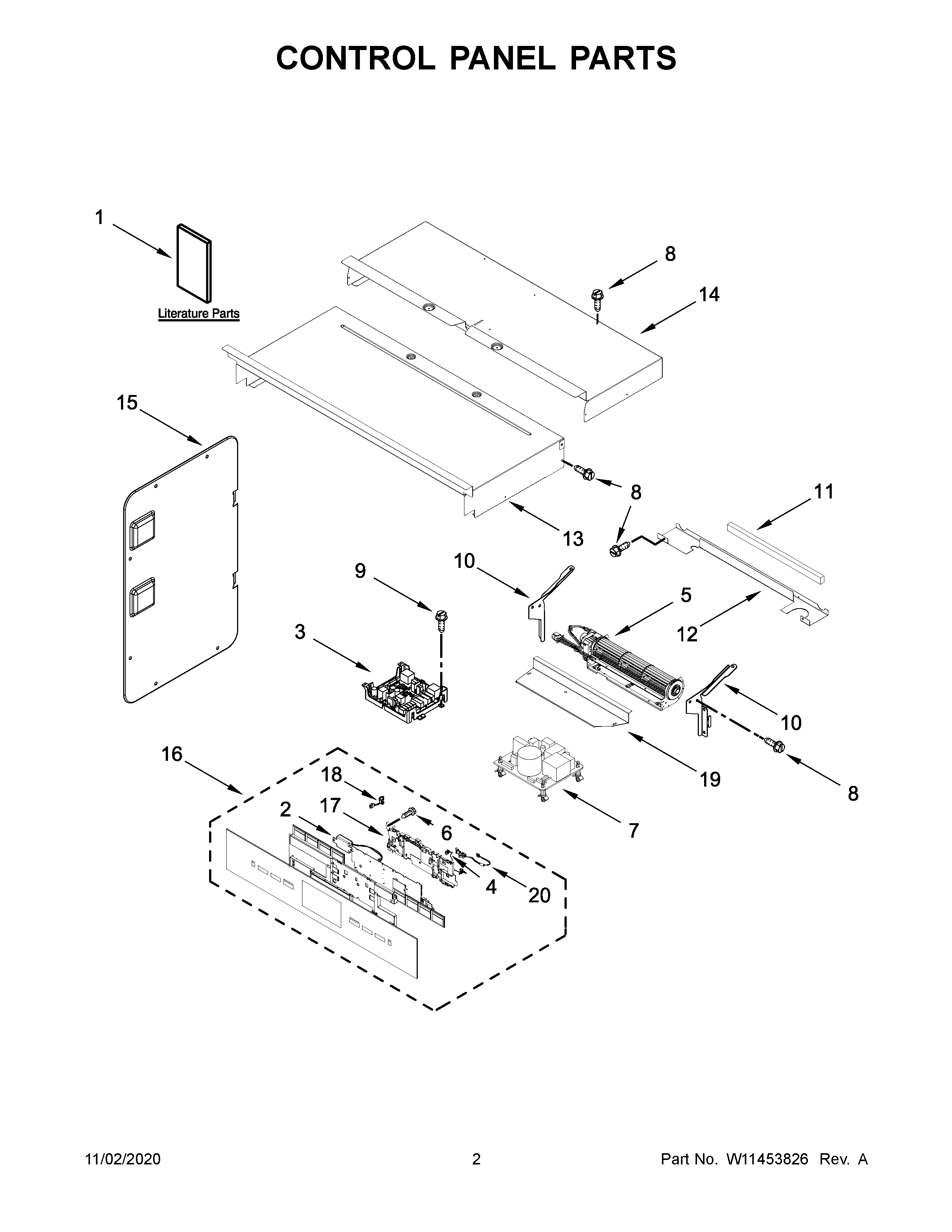

JMW2427IM03 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIW11356977 Whirlpool Wire Harness
NIW11219538 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NI4448664 Whirlpool Oven Mounting Bracket
NICABINET (NOT A SERVICEABLE PART)
NIW11216660 Whirlpool Wire Harness
NIW11216677 Whirlpool Wire Harness
NIW11218145 Whirlpool Wire Harness
NIW11325605 Whirlpool Wire Harness
NIW11226264 Whirlpool Wire Harness
NIW11356968 Whirlpool Wire Harness
NIW11356954 Whirlpool Microwave Wire Harness
1GUIDE, USE & CARE (OVEN)
1DINSTRUCTIONS, UNDERCOUNTER INSTALL
1BINSTRUCTIONS, INSTALLATION
1CSHEET, TECH (OVEN/MICRO COMBO)
1EDIAGRAM, WIRING
1AGUIDE, USE & CARE (OVEN/MICRO COMBO)
2W11123146 Whirlpool Speaker
3W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4W10524350 Whirlpool Wire Harness
5W11248652 Whirlpool Blower
6W10489172 Whirlpool Screw
7WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
8SCREW
9SCREW
10AW10655462 Whirlpool Mounting Bracket
10W10655463 Whirlpool Bracket Mounting
11W10491987 Whirlpool Foam Seal
12W10655465 Whirlpool Mounting Bracket
13W10318159 Whirlpool Access Cover
14CHASSIS, COVER TOP BACK 27 IN WIFI
15W10655467 Whirlpool Side Cover
16W11460599 Whirlpool Console + Core
17W10668510 Whirlpool Housing
18W10566973 Whirlpool Wire Harness
19W10681157 Whirlpool Fan Cover
20W10575307 Whirlpool Wire Harness
