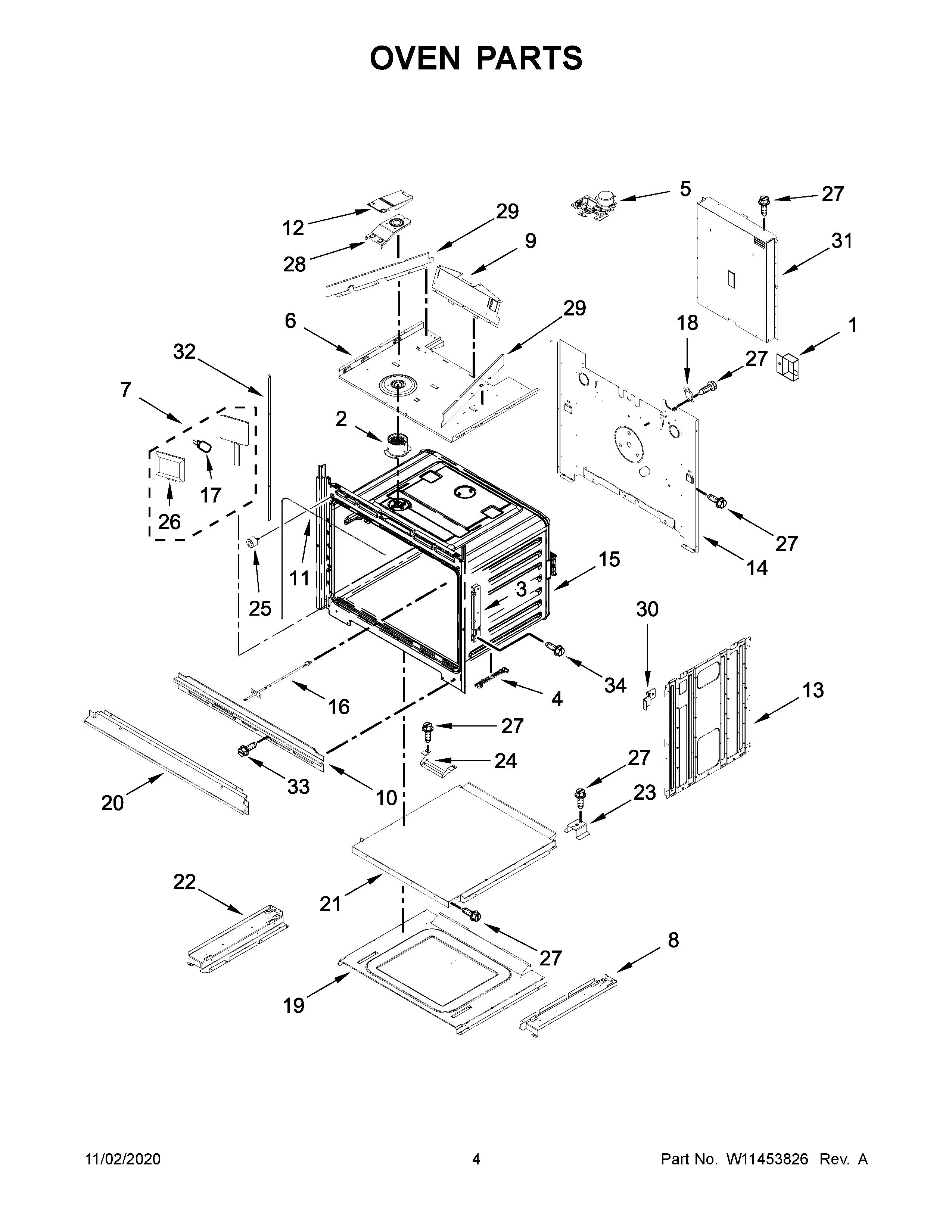

JMW2427IM03 03 – OVEN PARTS
Written by
in
JMW2427IM03 03 – OVEN PARTS
Products
Position
Product
NI
W11688333 Whirlpool Insulation
NI
W10520716 Whirlpool Insulation
1
8285593 Whirlpool Oven Wire Cover
2
W11240525 Whirlpool Vent Tube
3
W11613828 Whirlpool Hinge Receptacle
4
W11240831 Whirlpool Spacer
5
W10883049 Whirlpool Door Latch
6
CHASSIS, TOP
7
W11292252 Whirlpool Oven Light
8
W10283021 Whirlpool Support
9
W10904163 Whirlpool Vent Deflector
10
VENT, CENTER 27"
11
W10739090 Whirlpool Oven Gasket
12
W10616810 Whirlpool Exhaust Cover
13
SIDE, CHASSIS
14
BACK, CHASSIS
15
CABINET (NOT A SERVICEABLE PART)
16
W11290976 Whirlpool Thermostat
17
WPW10472384 Whirlpool Light Bulb
18
WP4449751 Whirlpool Range Oven Thermostat Fix
19
BASE, CHASSIS
20
WPW10327376 Whirlpool Oven Vent
21
WPW10283008 Whirlpool Access Cover
22
W10283020 Whirlpool Support
23
W10213759 Whirlpool Support
24
W10351308 Whirlpool Support Bracket
25
WPW10351278 Whirlpool Bumper
26
WPW10519866 Whirlpool Light
27
SCREW
28
W10616809 Whirlpool Vent Tube
29
W10681156 Whirlpool Vent Deflector
30
W10347649 Whirlpool Spacer
31
W11037653 Whirlpool Rear Cover
32A
W10536162 Whirlpool Microwave Trim Cover Kit
33
WPY706189 Whirlpool Stove Screw
34
WPW10254050 Whirlpool Screw
←
