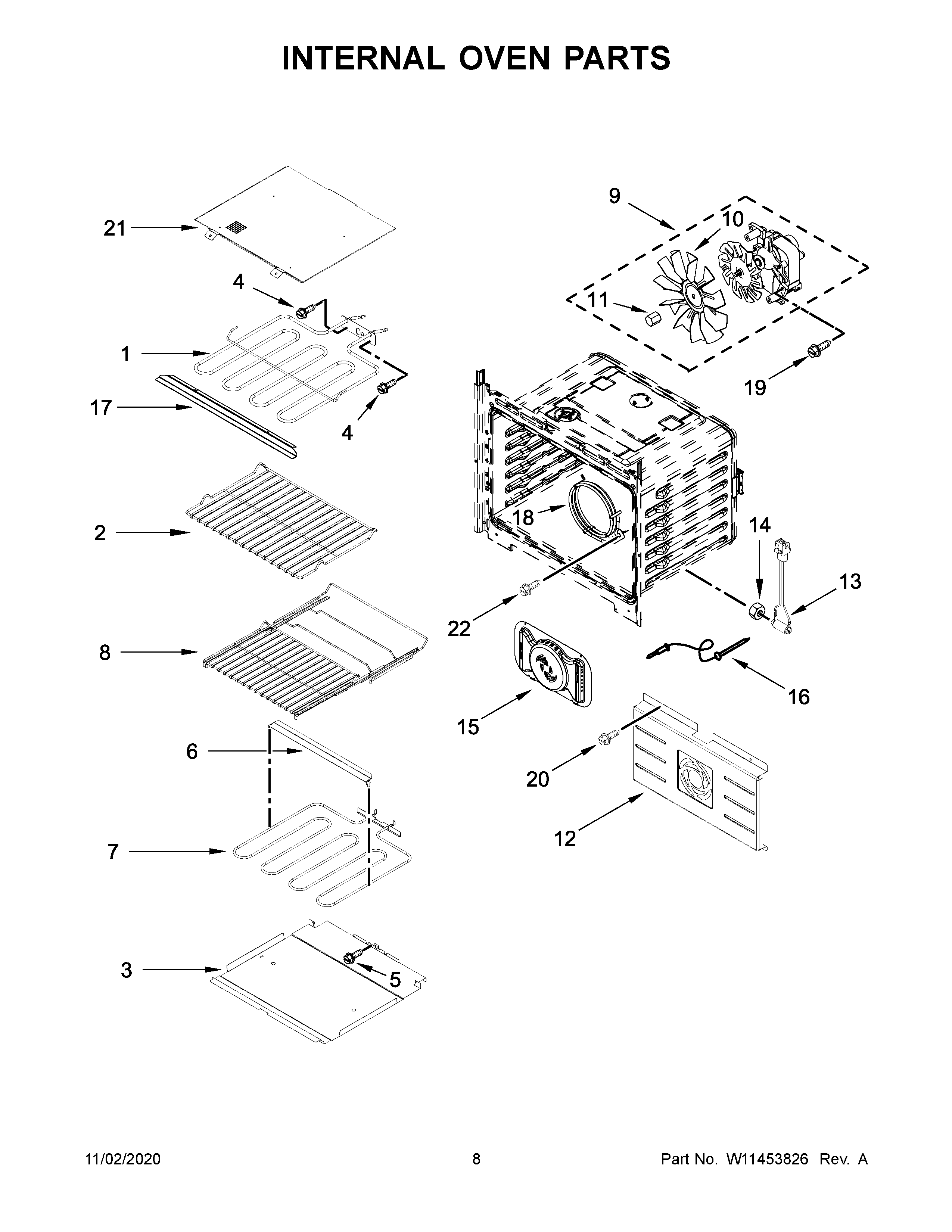

JMW2427IM03 05 – INTERNAL OVEN PARTSadmin2025-04-26T09:32:22+00:00JMW2427IM03 05 – INTERNAL OVEN PARTS ProductsPositionProduct1W10804429 Whirlpool Broil Element2RACK, 27 IN OVEN3W10318198 Whirlpool Bake Tray4SCREW5SCREW6W10282957 Whirlpool Bracket Support7BAKE ELEMENT8W11256306 Whirlpool Rack9W10860984 Whirlpool Fan Motor10W10819914 Whirlpool Convection Fan11W10794042 Whirlpool Nut12W10521808 Whirlpool Baffle Convect13W11252826 Whirlpool Probe Jack14W11231343 Whirlpool Lock Nut15BAFFLE, BOW TIE16WP9755542 Whirlpool Oven Meat Probe17W10588738 Whirlpool Heat Shield18W11678579 Whirlpool Element19W10850807 Whirlpool Screw20SCREW21W11290999 Whirlpool Shield Heat22Screw
