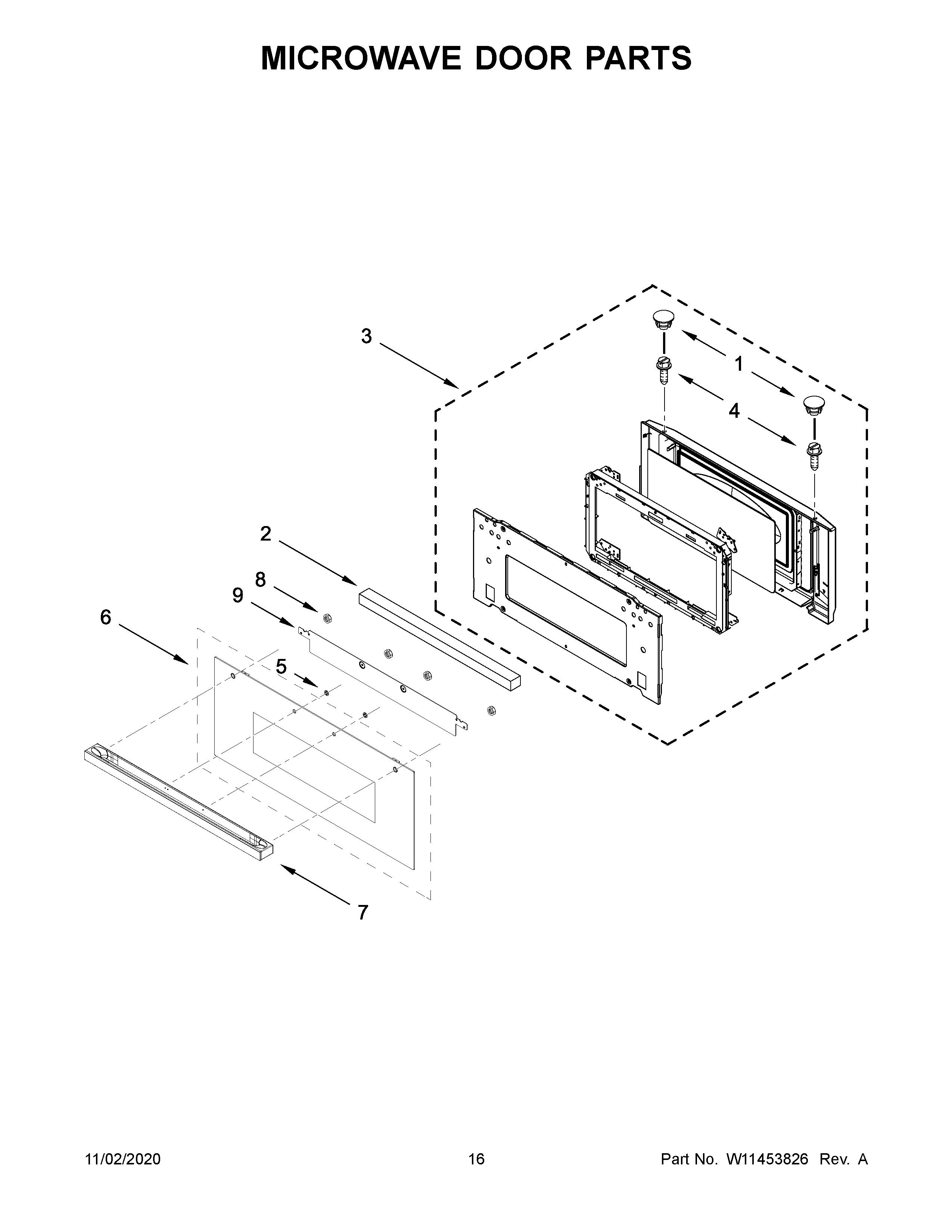

JMW2427IM03 09 – MICROWAVE DOOR PARTS

Written by

Products

Position	Product
1	8304588BL Whirlpool Button Plug
2	W10359769 Whirlpool Microwave Door Gasket
3	W10737653 Whirlpool Microwave Door
4	SCREW
5	SPACER, HANDLE
6	ASSEMBLY, OUTER DOOR (BLACK GLASS)
7	W11411895 Whirlpool Door Handle
8	WP488130 Whirlpool Air Conditioner Nut
9	W11316564 Whirlpool Mounting Bracket
