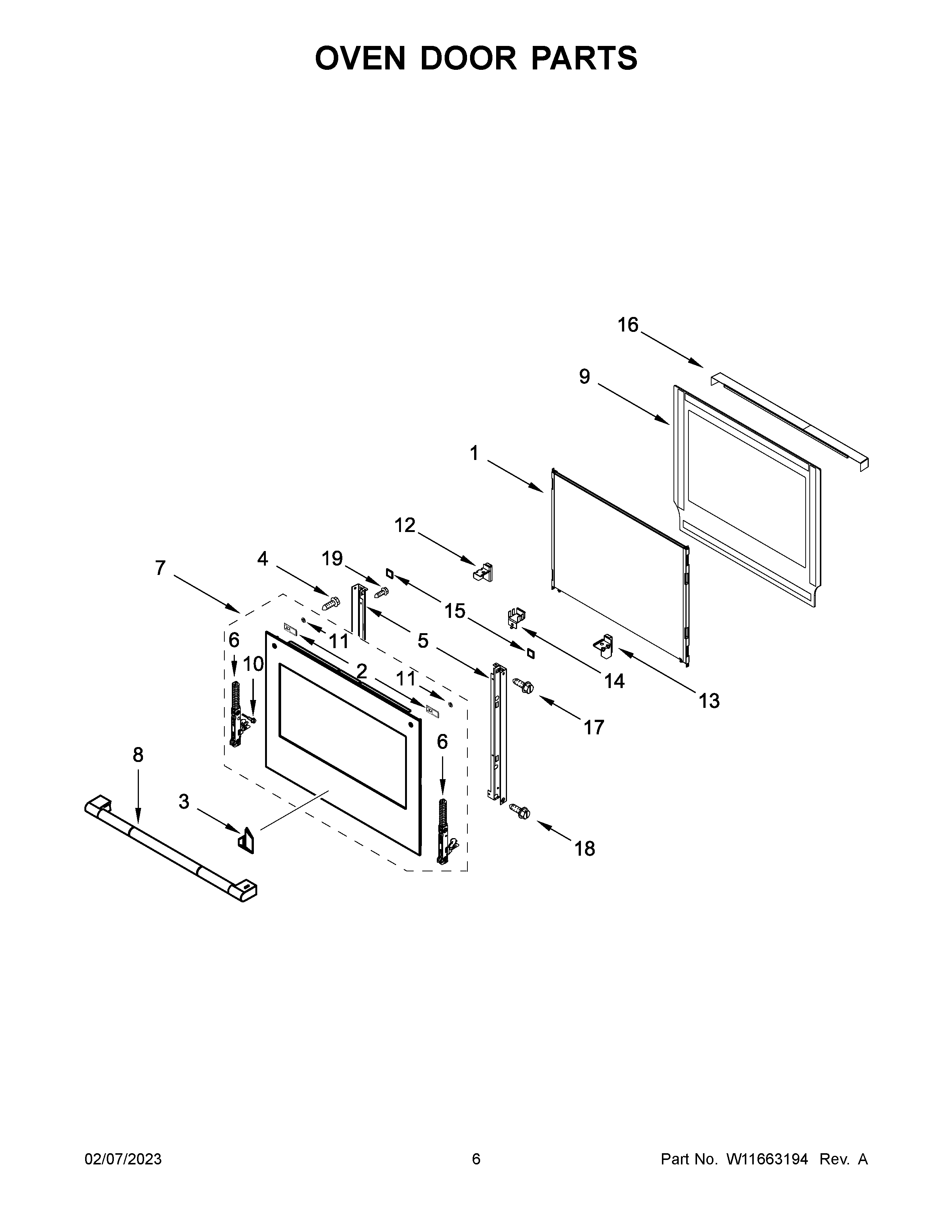

JMW2427LL02 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11602513 Whirlpool Oven Door Glass
2	W10650497 Whirlpool Spacer
3	W11320231 Whirlpool Dishwasher Nameplate
4	W11602624 Whirlpool Oven Screw
5A	W11598127 Whirlpool Support Bracket
5	W11598126 Whirlpool Support Bracket
6A	W11394210 Whirlpool Door Hinge
6	W11394209 Whirlpool Door Hinge
7	W11602615 Whirlpool Oven Door Glass
8	W11349396 Whirlpool Door Handle
9	W11602631 Whirlpool Door Glass
10	WP3196183 Whirlpool Screw
11	W11676355 Whirlpool Washer
12	W11598130 Whirlpool Oven Support Bracket
13	W11598128 Whirlpool Oven Support Bracket
14	W11598131 Whirlpool Oven Clip
15	WPW10517428 Whirlpool Spacer
16	TOP VENT TRIM ASSEMBLY
17	WP694091 Whirlpool Screw
18	W11617225 Whirlpool Oven Screw
19	W10443110 Whirlpool Screw
