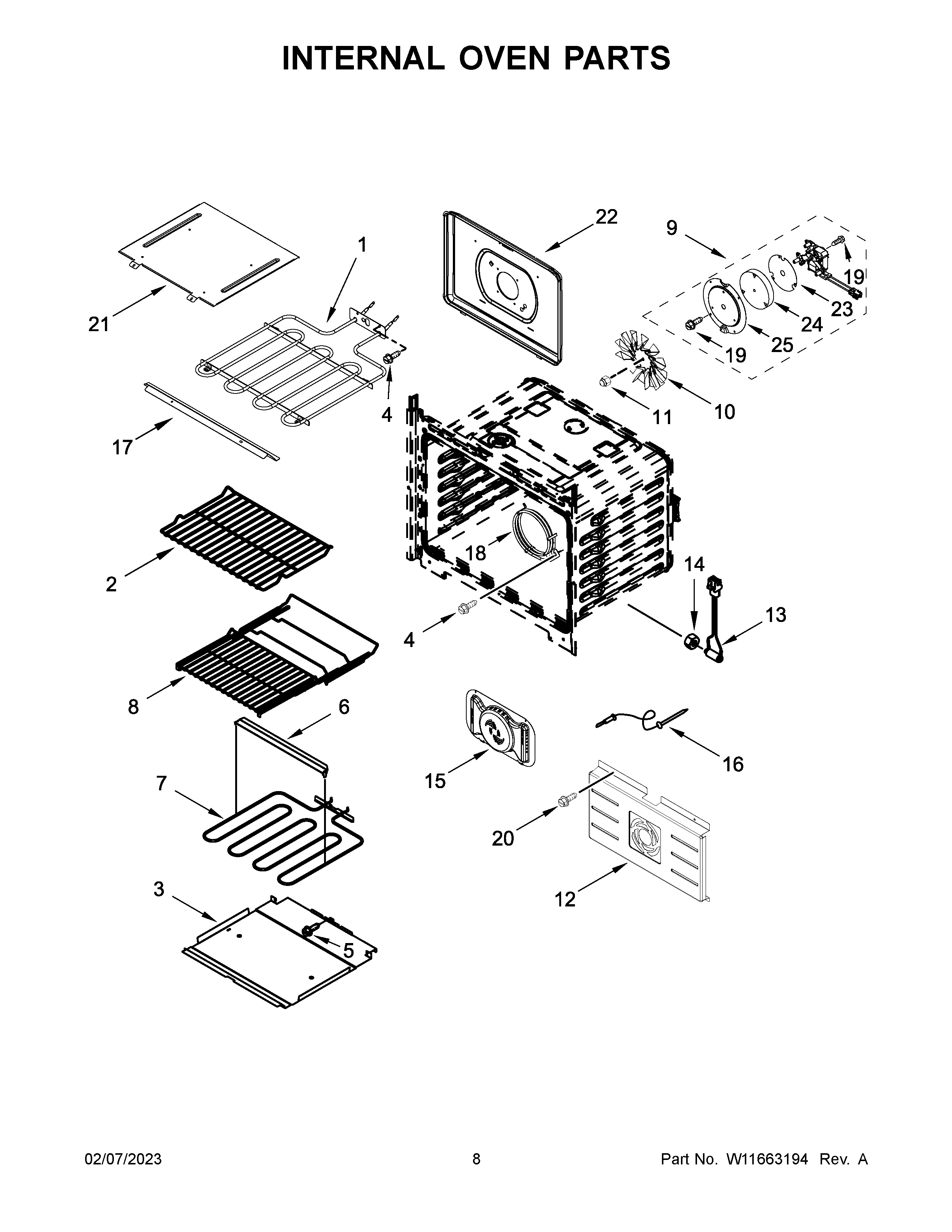

JMW2427LL02 05 – INTERNAL OVEN PARTS

JMW2427LL02 05 – INTERNAL OVEN PARTS

Written by

in

JMW2427LL02 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11598122 Whirlpool Broil Element
2	RACK, 27 IN OVEN
3	W10318198 Whirlpool Bake Tray
4	SCREW
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11256306 Whirlpool Rack
9	CONVECT MOTOR ASSEMBLY
10	W11548753 Whirlpool Convection Fan
11	W11548755 Whirlpool Nut
12	W10521808 Whirlpool Baffle Convect
13	W11252826 Whirlpool Probe Jack
14	W11231343 Whirlpool Lock Nut
15	BAFFLE, BOW TIE
16	WP9755542 Whirlpool Oven Meat Probe
17	SHIELD-HT
18	W11678579 Whirlpool Element
19	W10850807 Whirlpool Screw
20	SCREW
21	TOP-CABNT
22	BACK, 27 IN CAVITY BAFFLE BOWTIE
23	PLATE, CONVECT MOTOR
24	INSULATION, CONVECT MOTOR
25	COVER, CONVECT PLATE
