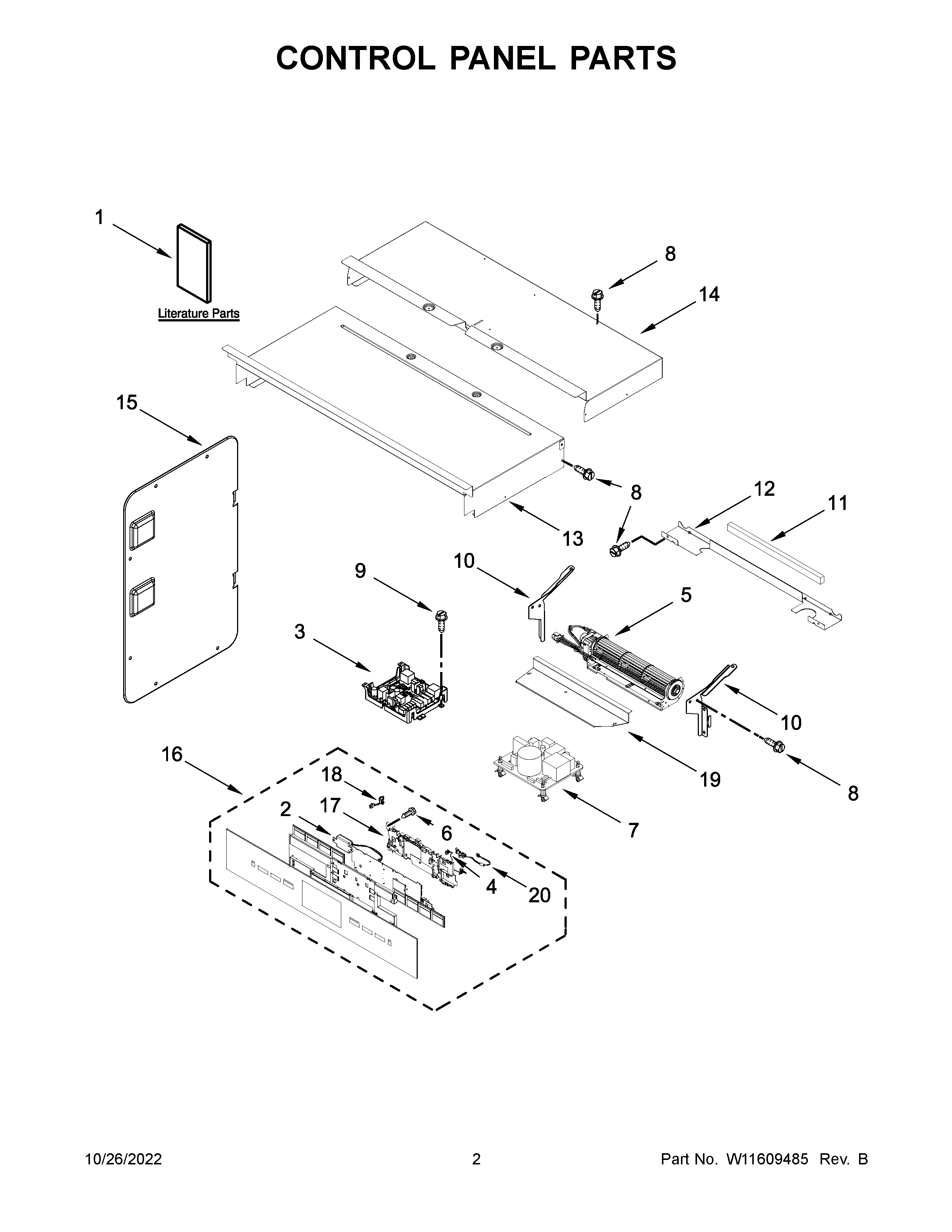

JMW2427LM00 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	W11727826 Whirlpool Wire Harness
NI	4448664 Whirlpool Oven Mounting Bracket
NI	4450800 Whirlpool Oven Screw
NI	16515 Whirlpool Clip
NI	W11226264 Whirlpool Wire Harness
NI	W11602626 Whirlpool Oven Microwave Hardware
NI	W11539494 Whirlpool Wire Harness
NI	W11546965 Whirlpool Wire Harness
NI	W11555167 Whirlpool Wire Harness
NI	W11578580 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	W11659370 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1	OWNER'S MANUAL
1B	TECH SHEET
1A	QUICK START GUIDE
2	W11123146 Whirlpool Speaker
3	W11448962-includeCORE Whirlpool W11448962 Washer Electronic Control Board + Core
4	W10524350 Whirlpool Wire Harness
5	BLOWER
6	W10489172 Whirlpool Screw
7	WPW10260060-includeCORE Whirlpool WPW10260060 Refrigerator Electronic Control Board + Core
8	SCREW
9	SCREW
10A	W10655462 Whirlpool Mounting Bracket
10	W10655463 Whirlpool Bracket Mounting
11	W10491987 Whirlpool Foam Seal
12	DIVIDER, CHASSIS BACK
13	W10318159 Whirlpool Access Cover
14	CHASSIS, COVER TOP BACK 27 IN WIFI
15	W10655467 Whirlpool Side Cover
16	W11600623 Whirlpool Dishwasher Electronic Control
17	W10668510 Whirlpool Housing
18	W10566973 Whirlpool Wire Harness
19	W10681157 Whirlpool Fan Cover
20	W10575307 Whirlpool Wire Harness
