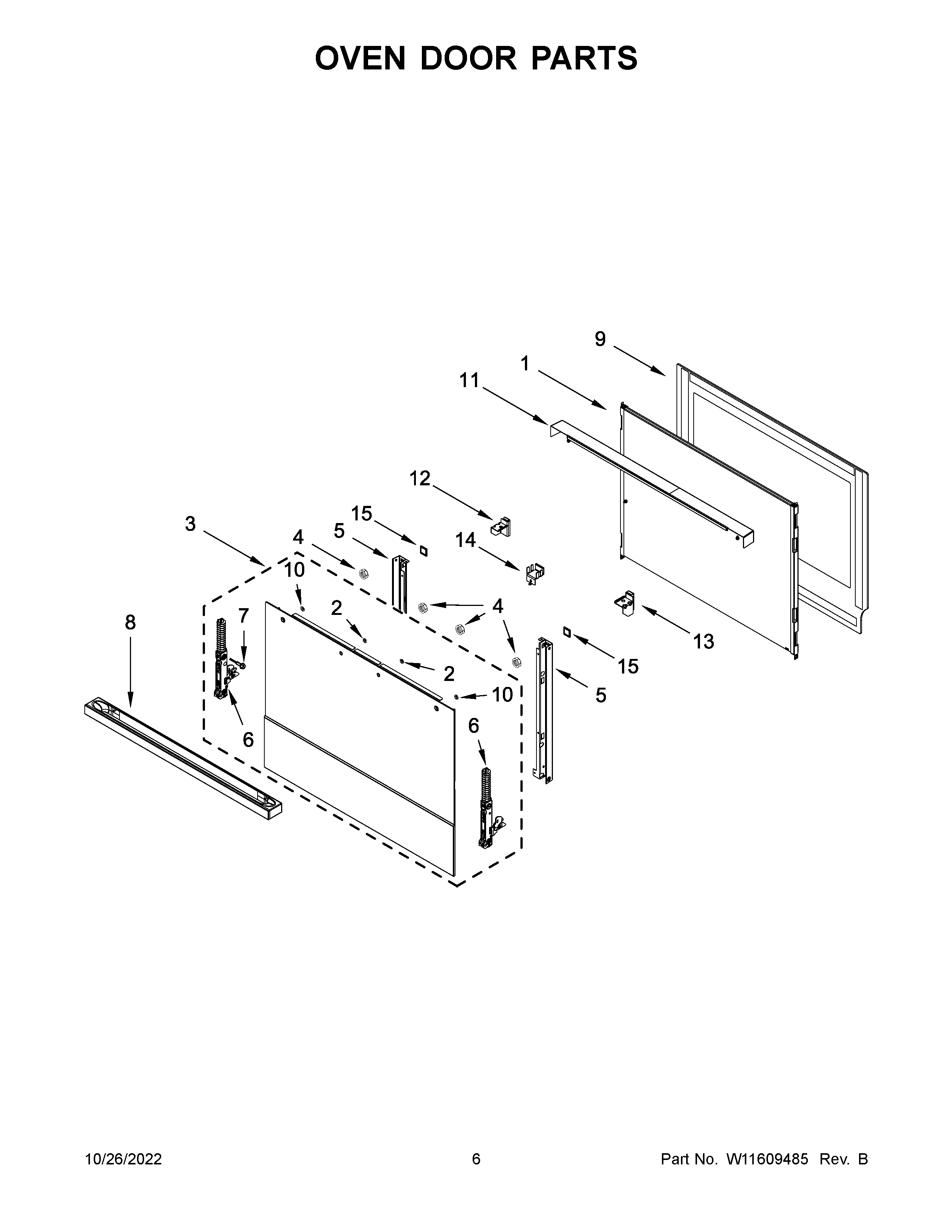

JMW2427LM00 04 – OVEN DOOR PARTS

Products

Position	Product
1	W11602513 Whirlpool Oven Door Glass
2	SPACER, HANDLE
3	DOOR ASSEMBLY (INCLUDES HINGES) (BLACK GLASS WITH STAINLESS TRIM)
4	W11602632 Whirlpool Nut Assembly
5	W11598126 Whirlpool Support Bracket
5A	W11598127 Whirlpool Support Bracket
6A	W11394210 Whirlpool Door Hinge
6	W11394209 Whirlpool Door Hinge
7	WP3196183 Whirlpool Screw
8	W11411895 Whirlpool Door Handle
9	W11602631 Whirlpool Door Glass
10	W11676355 Whirlpool Washer
11	TOP VENT TRIM ASSEMBLY
12	W11598130 Whirlpool Oven Support Bracket
13	W11598128 Whirlpool Oven Support Bracket
14	W11598131 Whirlpool Oven Clip
15	WPW10517428 Whirlpool Spacer
