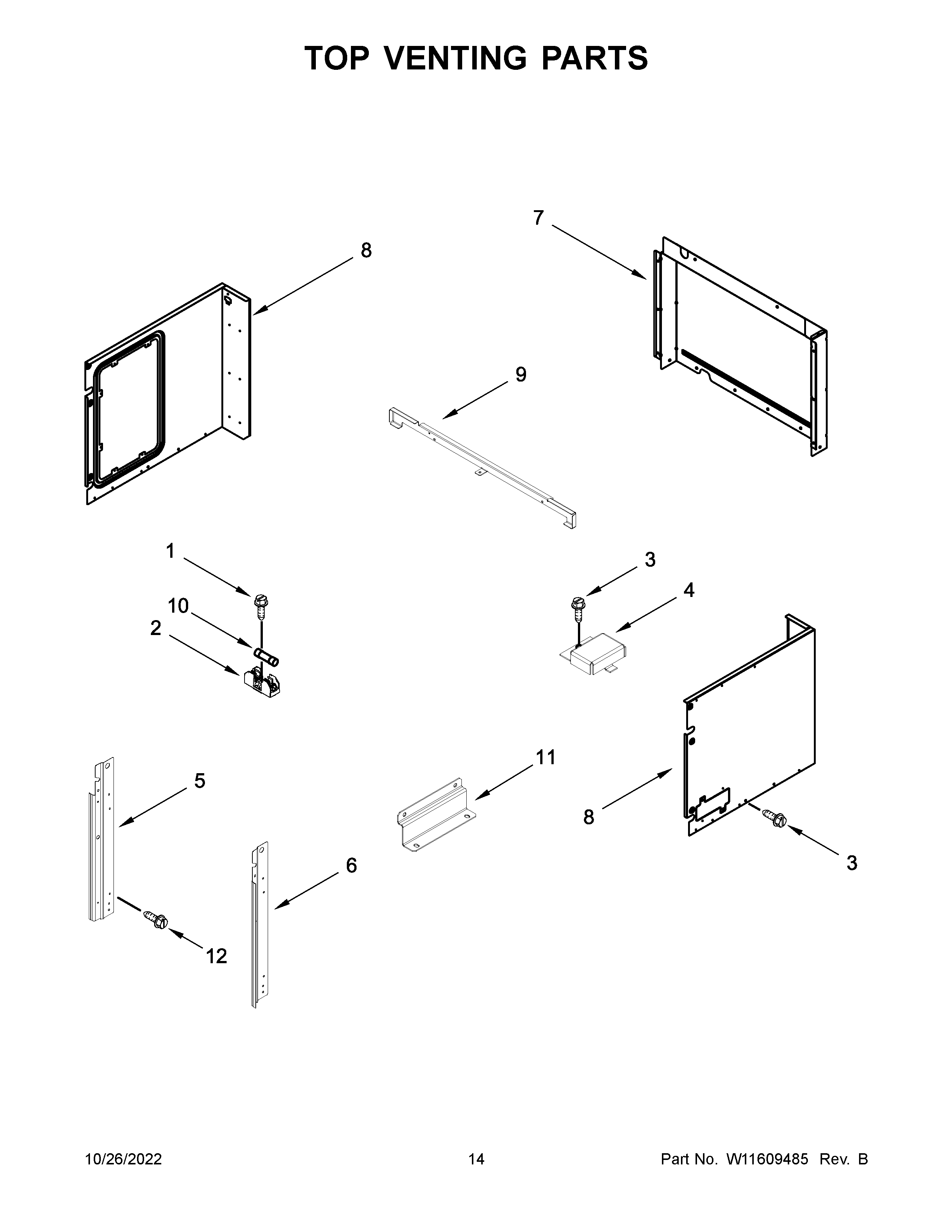

JMW2427LM00 08 – TOP VENTING PARTS

JMW2427LM00 08 – TOP VENTING PARTS

Written by

in

JMW2427LM00 08 – TOP VENTING PARTS

Products

PositionProduct
1SCREW
24454949 Whirlpool Oven Fuse Block
3SCREW
48285593 Whirlpool Oven Wire Cover
5W11627410 Whirlpool Mounting Rail
6W11627411 Whirlpool Mounting Rail
7COVER-REAR
8SIDE, COMBO CHASSIS (LEFT)
8ASIDE, COMBO CHASSIS (RIGHT)
9W10283023 Whirlpool Support
10WPW10017410 Whirlpool Fuse
11SIDE, BRACKET
12SCREW
