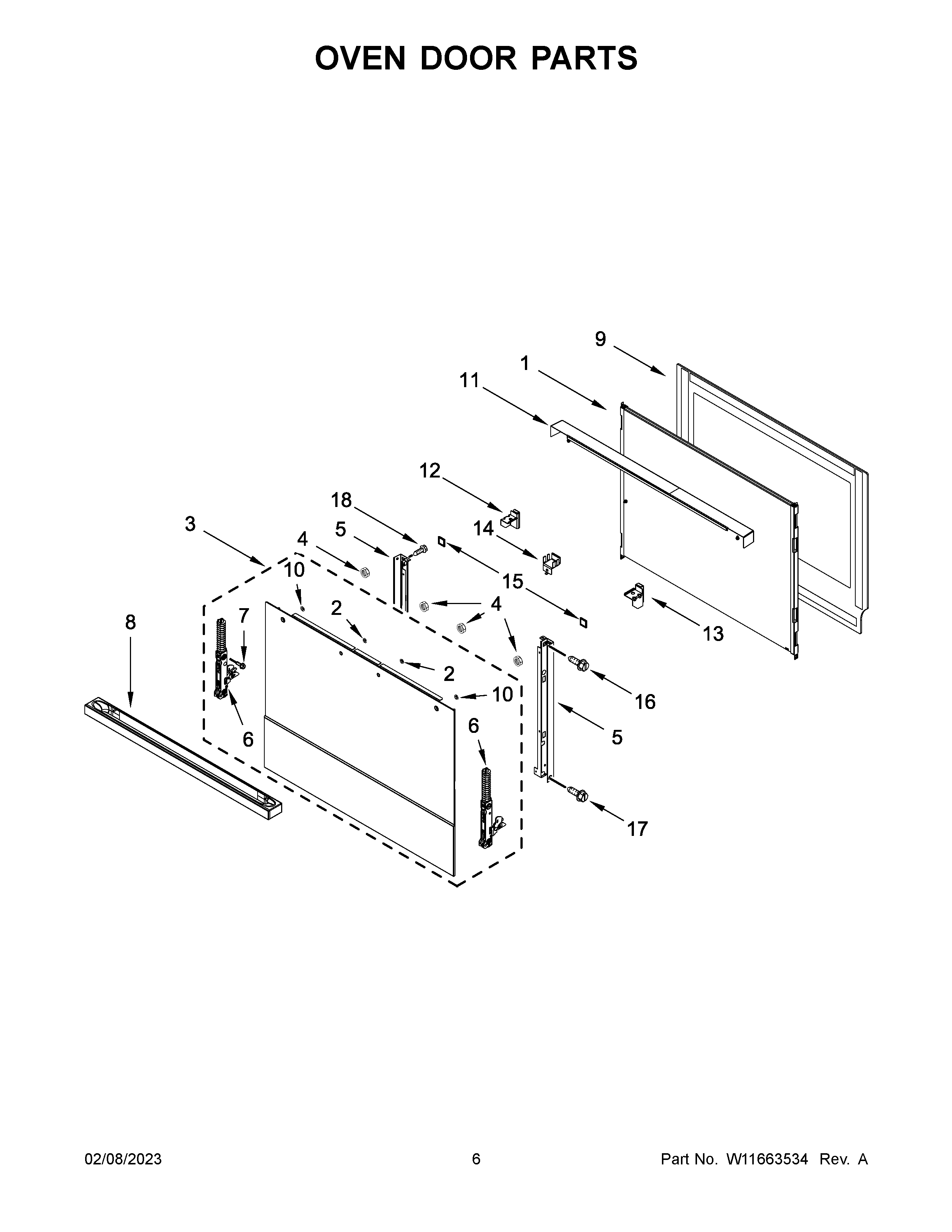

JMW2427LM02 04 – OVEN DOOR PARTS

Products

PositionProduct
1W11602513 Whirlpool Oven Door Glass
2SPACER, HANDLE
3DOOR ASSEMBLY (INCLUDES HINGES) (BLACK GLASS WITH STAINLESS TRIM)
4W11602632 Whirlpool Nut Assembly
5W11598126 Whirlpool Support Bracket
5AW11598127 Whirlpool Support Bracket
6AW11394210 Whirlpool Door Hinge
6W11394209 Whirlpool Door Hinge
7WP3196183 Whirlpool Screw
8W11411895 Whirlpool Door Handle
9W11602631 Whirlpool Door Glass
10W11676355 Whirlpool Washer
11TOP VENT TRIM ASSEMBLY
12W11598130 Whirlpool Oven Support Bracket
13W11598128 Whirlpool Oven Support Bracket
14W11598131 Whirlpool Oven Clip
15WPW10517428 Whirlpool Spacer
16WP694091 Whirlpool Screw
17W11617225 Whirlpool Oven Screw
18W10443110 Whirlpool Screw
