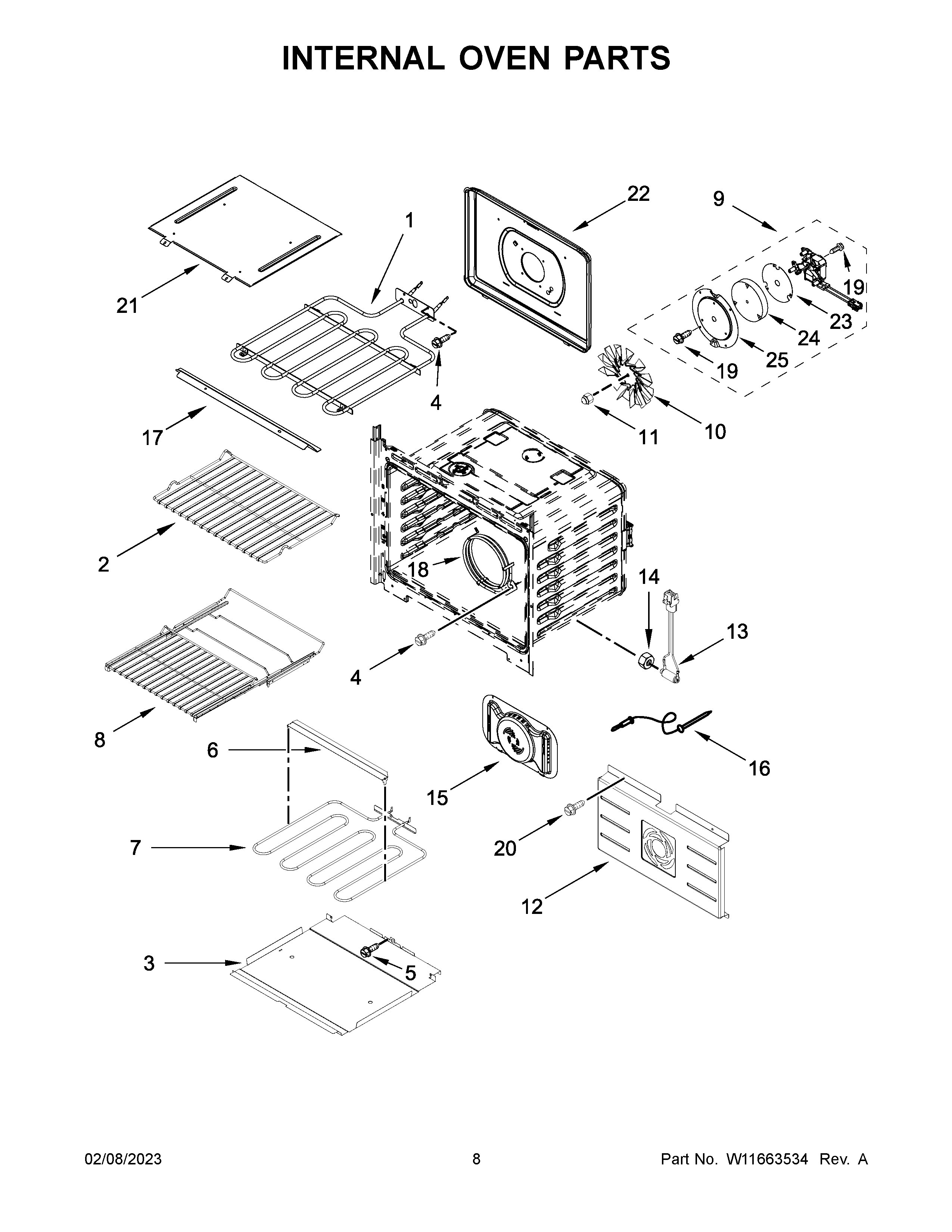

JMW2427LM02 05 – INTERNAL OVEN PARTS
Written by
in
JMW2427LM02 05 – INTERNAL OVEN PARTS
Products
Position
Product
1
W11598122 Whirlpool Broil Element
2
RACK, 27 IN OVEN
3
W10318198 Whirlpool Bake Tray
4
SCREW
5
SCREW
6
W10282957 Whirlpool Bracket Support
7
BAKE ELEMENT
8
W11256306 Whirlpool Rack
9
CONVECT MOTOR ASSEMBLY
10
W11548753 Whirlpool Convection Fan
11
W11548755 Whirlpool Nut
12
W10521808 Whirlpool Baffle Convect
13
W11252826 Whirlpool Probe Jack
14
W11231343 Whirlpool Lock Nut
15
BAFFLE, BOW TIE
16
WP9755542 Whirlpool Oven Meat Probe
17
SHIELD-HT
18
W11678579 Whirlpool Element
19
W10850807 Whirlpool Screw
20
SCREW
21
TOP-CABNT
22
BACK, 27 IN CAVITY BAFFLE BOWTIE
23
PLATE, CONVECT MOTOR
24
INSULATION, CONVECT MOTOR
25
COVER, CONVECT PLATE
←
